Hydraulic Pump, Hydro Drive (101012 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7024	2	Cotter Pin	4 X 36 mm
2	24M7318	2	Washer	19 X 34 X 3 mm
3	38H5005	1	Adapter Fitting	-
4	T77858	6	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
5	51M7047	2	O-Ring	23.600 X 2.900 mm
6	AZ42361	1	Hydraulic Cylinder	-
6	AZ42362	1	Seal Kit	-
7	14M7597	1	Lock Nut	M20
8	YC30806	2	Bushing	-
9	Z37499	1	Spacer	60.150 X 70 X 18 mm (2.368" X 2.756" X 0.709")
10	19M7288	8	Cap Screw	M8 X 30
11	14M7502	4	Nut	M14
12	Z11749	1	Flange	-
13	YC31671	4	Stud	-
14	24M7215	8	SHIM	TK = 1 mm
15	24M7173	1	Washer	60 X 75 X 3 mm
16	YC30802	1	Spacer	-
17	24M7214	1	Shim	T K = 0.5 mm
18	AYC25430	1	Support	-
19	14M7138	2	Nut	M18
20	24M7085	5	Washer	15 X 28 X 2.500 mm
21	YC16916	1	Washer	46 X 60 X 5 mm (1.811" X 2.362" X 0.197")
22	58M5574	1	Lubrication Fitting	-
23	Z11748	1	Support	-
24	40M1843	1	Snap Ring	-
25	JD8548	2	Ball Bearing	-
26	YC28703	4	Shim	TK = 0.5 mm
27	24M7051	2	Washer	21 X 37 X 3 mm
28	M72598	1	Quick Lock Pin	-
29	Z46708	1	Pin Fastener	15.870 X 55 mm (5/8" X 2.165")
30	38H5108	1	Tee Fitting	-
31	DX22444	1	Shaft	-
32	38H3160	1	Adapter Fitting	-
33	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
34	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
35	ADX16679	2	Adapter Fitting	-
36	51M7045	2	O-Ring	19.300 X 2.200 mm
37	DX22530	2	Adapter Fitting	-
38	38H5400	1	Adapter Fitting	-
39	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
40	N309547	1	Seal	-
40	R61467	1	O-Ring	-
40	HXE13935	1	Snap Ring	-
40	ADX16811	1	Valve Kit	-
40	DX22605	1	O-Ring Kit	-
40	DX22608	1	O-Ring Kit	-
40	DX22607	1	O-Ring Kit	-
40	DX22606	1	O-Ring Kit	-
40	DX22604	1	O-Ring Kit	-
40	ADX16755	1	Seal Kit	-
40	ADX16754	1	Valve Kit	-
40	ADX16753	1	Pump Kit	-
40	ADX16751	1	Plug Kit	-
40	ADX16750	1	Seal Kit	-
40	ADX16749	1	Control Kit	-
40	ADX16748	1	Seal Kit	-
40	ADX16606	1	Pump	-
40	ADX16756	1	Valve Kit	-
41	14M7144	2	Nut	M20
42	YC13738	1	Washer	20.500 X 58 X 5 mm (0.807" X 2.283" X 0.197")
43	ADX16670	1	Check Valve	-
44	RE523854	2	Adapter Fitting	-
45	51M7040	3	O-Ring	9.300 X 2.200 mm
46	38H5145	1	Elbow Fitting	-
47	RE190805	2	Diagnostic Coupling	-
48	ADX16634	1	Hydraulic Hose	LGTH = 434 mm
49	19M8906	6	Screw	M10 X 25
50	38H5282	1	Adapter Fitting	-
51	Z11139	1	Pulley	-
52	R77175	2	Cover	-
53	38H5318	1	Adapter Fitting	-
54	DX16085	1	Push Rod	-
55	YC31637	1	Eyebolt	-
56	40M5427	2	Snap Ring	-
57	61M5145	1	Elbow Fitting	-

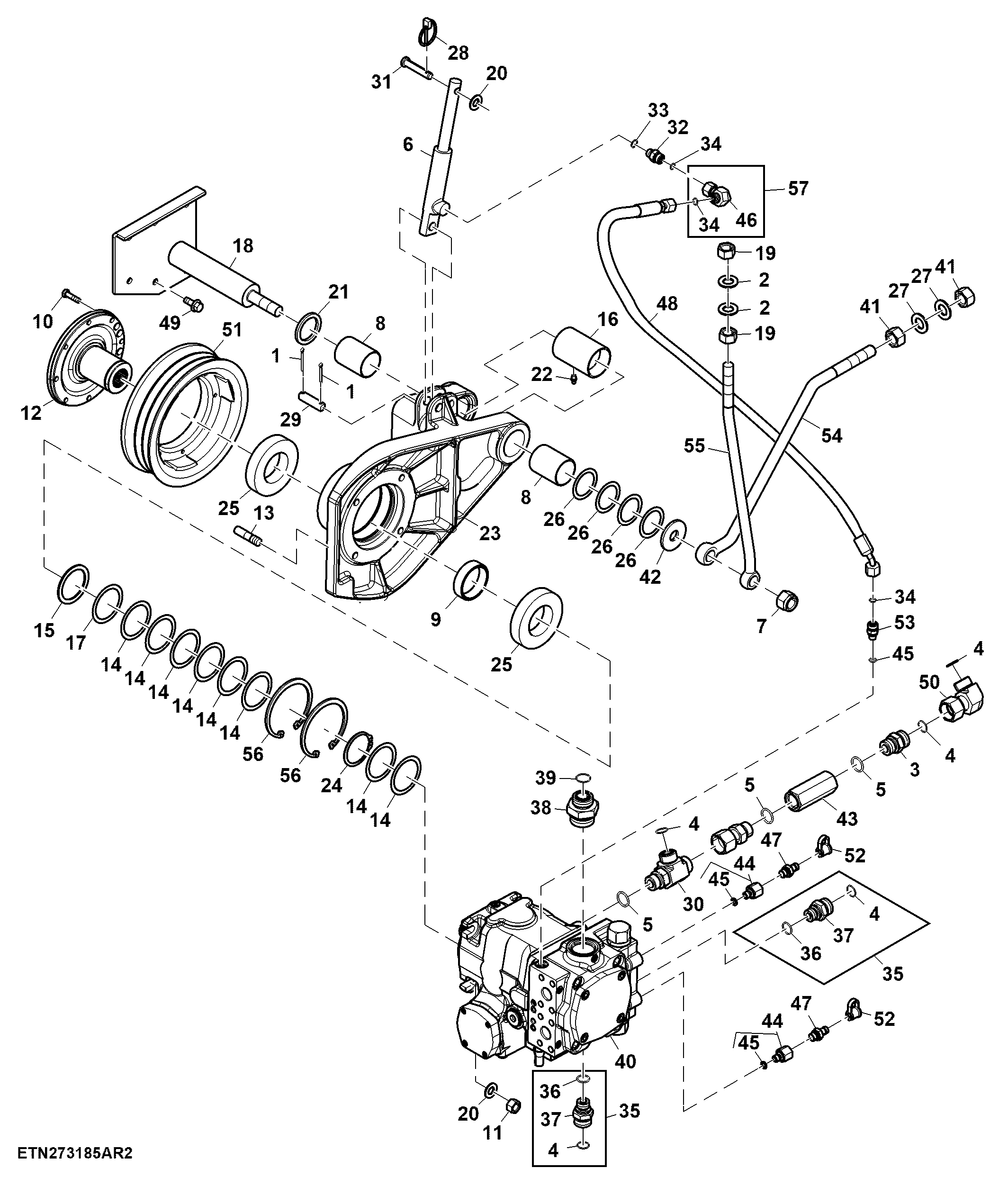

Hydraulic Pump, Hydro Drive (101012 - )
