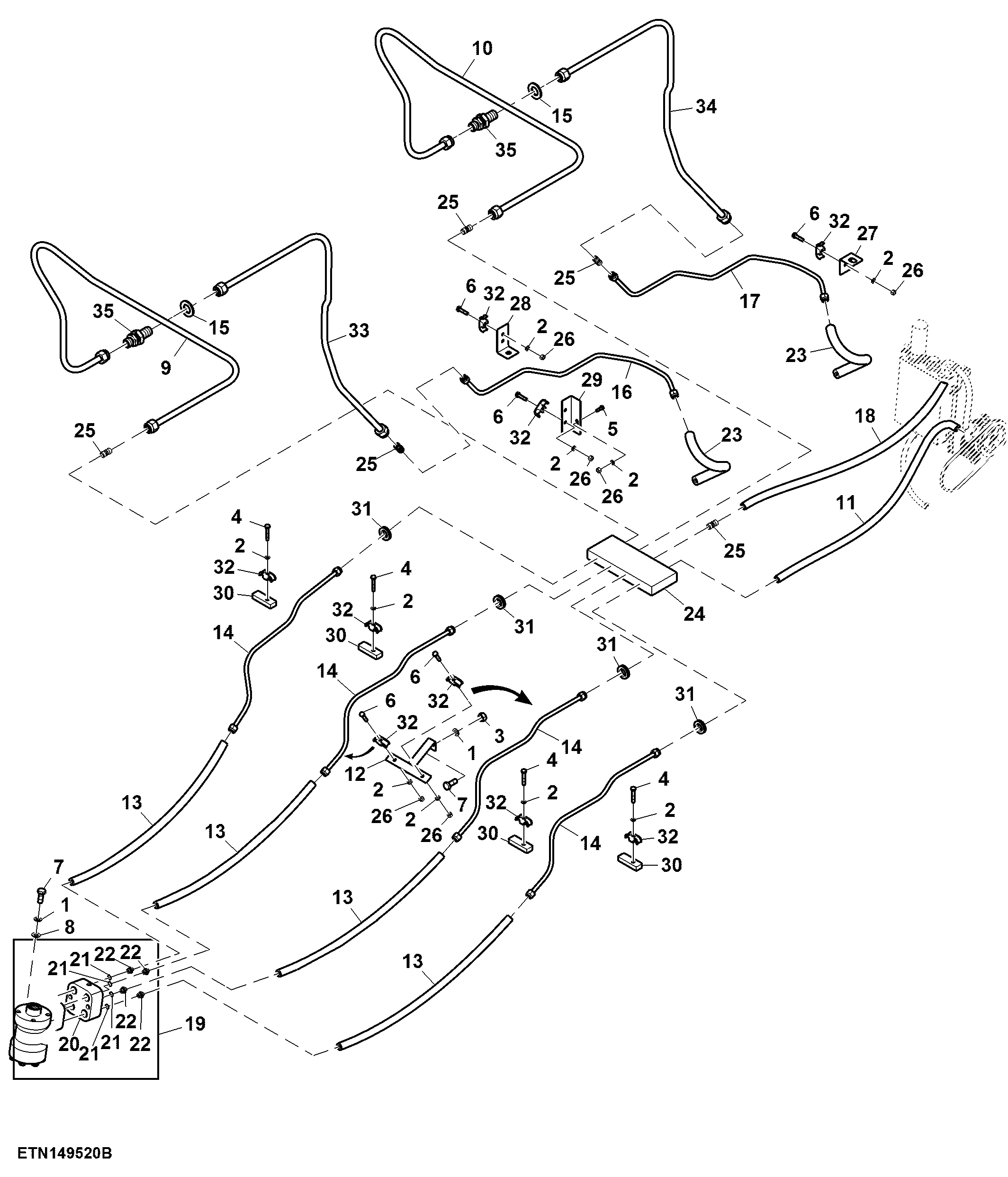

Front Side Hydraulic Line, Steering, RWD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12M7013	5	LOCK WASHER	10.200 mm
2	12M7099	11	Lock Washer	6 mm
3	14M7140	1	Nut	M10
4	19M10099	4	Screw	M6 X 35
5	19M10104	2	Screw	M5 X 16
6	19M10107	6	Screw	M6 X 25
7	19M7167	5	Cap Screw	M10 X 25
8	24M7028	4	Washer	10.500 X 20 X 2 mm
9	ADX11555	1	Line	INCLUDES (2) YC16324 (2) YC16854
10	ADX11553	1	Line	INCLUDES (2) YC16324 (2) YC16854
11	AYC10774	1	Hydraulic Hose	LGTH = 1500 mm
12	AYC10807	1	Holder	-
13	AYC12814	4	Hydraulic Hose	LGTH = 660 mm
14	AYC15411	4	Oil Line	INCLUDES (8) YC16324 (8) YC16854
15	24M7053	2	Washer	17 X 30 X 3 mm
16	AYC20269	1	Oil Line	INCLUDES (2) YC16324 (2) YC16854
17	AYC20270	1	Oil Line	INCLUDES (2) YC16324 (2) YC16854
18	AYC21448	1	Oil Line	-
19	AYC25317	1	Hydraulic Steering Booster	-
20	AYC23163	1	Spring Washer	-
21	YC21933	4	Seal	-
22	YC21934	4	Fitting	-
23	AZ25674	2	HYDRAULIC HOSE	LGTH = 625 mm
24	YC12993	1	Barrier	-
25	YC16844	5	Tee Fitting	-
26	YC20357	7	Nut	-
27	YC23722	2	Angle	-
28	YC24278	1	Angle	-
29	Z27447	1	Angle	-
30	Z30667	4	PLATE	-
31	Z34506	4	Grommet	-
32	Z34955	10	CLAMP	-
33	ADX11556	1	Line	INCLUDES (2) YC16324 (2) YC16854
34	ADX11554	1	Line	INCLUDES (2) YC16324 (2) YC16854
35	AYC18792	2	Union Fitting	-

Front Side Hydraulic Line, Steering, RWD

Нет текстового описания
