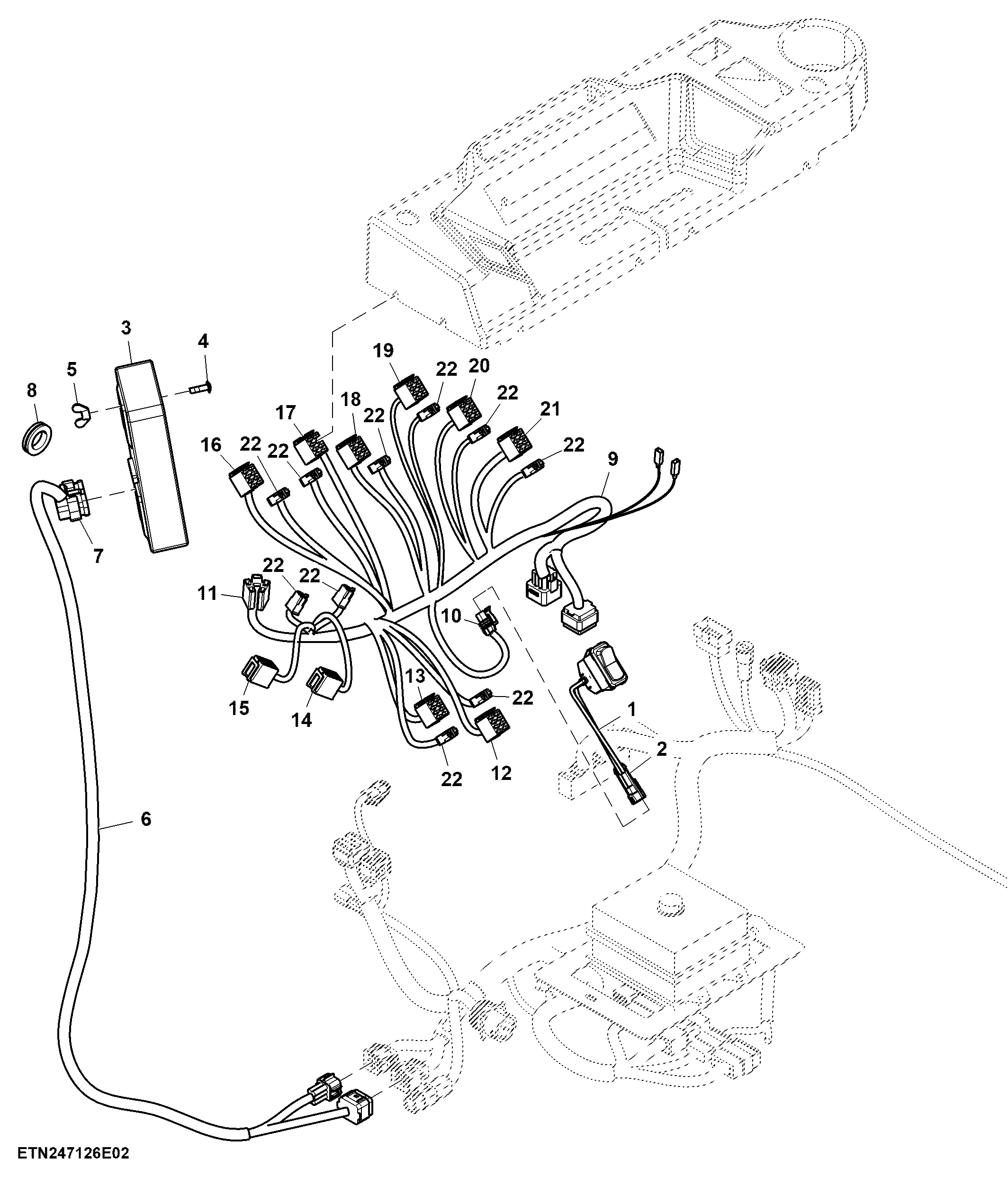

Dashboard Panel Wiring Harness, Hydro Drive (101013 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE198505	1	Toggle/Rocker Switch	-
2	57M7256	1	Elec. Connector Housing	-
2	57M7252	2	Elec. Connector Terminal	-
2	57M7258	2	Elec. Connector Seal	-
2	57M7289	1	Elec.Connect Locking Device	-
3	ADX14694	1	Digital Display	-
4	19M8649	2	Screw	M6 X 20
5	14M7019	2	Wing Nut	M6
6	ADX14588	1	Instrument PNL WRG Harness	-
7	F053324	1	Electrical Connector Assy	Display Connector
8	Z34506	1	Grommet	-
9	ADX16657	1	Wiring Harness	-
10	57M7254	1	Elec. Connector Housing	Idle Switch
11	L38138	1	Elec. Connector Housing	Key Switch
12	57M12242	1	Elec. Connector Housing	Turn Switch
13	57M12242	1	Elec. Connector Housing	Horn Switch
14	57M12242	1	Elec. Connector Housing	Reel
15	57M12242	1	Elec. Connector Housing	Working Light Switch
16	57M12242	1	Elec. Connector Housing	Hazard Light Switch
17	57M12242	1	Elec. Connector Housing	Low Beam Light Switch
18	57M12242	1	Elec. Connector Housing	High Beam Light Switch
19	57M12242	1	Elec. Connector Housing	Unloading Light Switch
20	57M12242	1	Elec. Connector Housing	Speed Change
21	57M12242	1	Elec. Connector Housing	Road Mode
22	57M12244	10	Elec. Connector Housing	-

Dashboard Panel Wiring Harness, Hydro Drive (101013 - )
