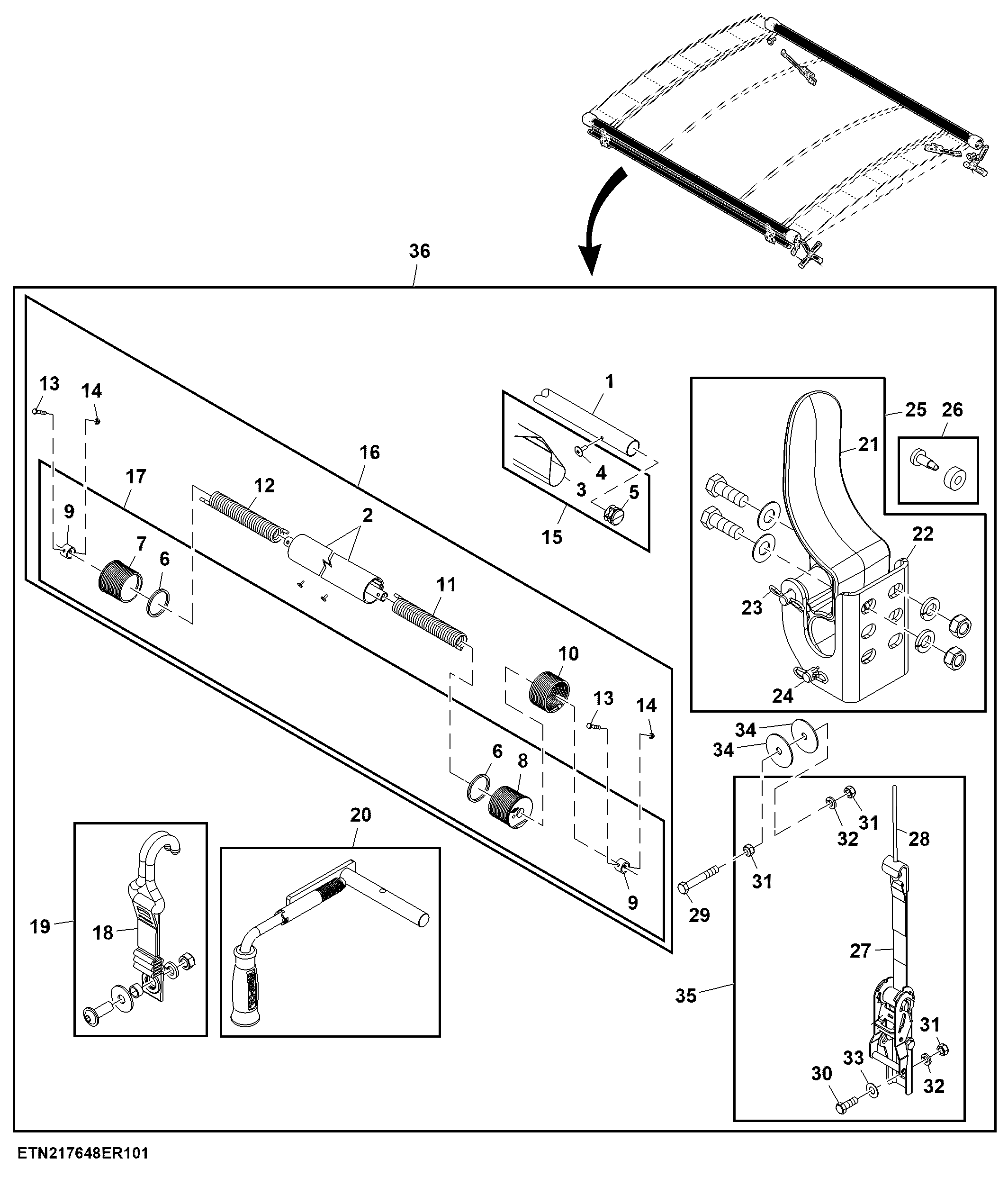

Tarp Mountings and Spools, Drybox Spreader

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KK70287	1	Tube	Stainless Fixed Tube
2	KK70286	1	Tube	(B)
3	-	1	Part 3	(A)
4	-	4	Part 4	(A)
5	-	2	Part 5	(A)
6	KK61129	2	O-Ring	(B)
7	KK61036	1	Cable	(B)
8	KK61037	1	Cable	(B)
9	KK61035	2	Spacer	(B)
10	-	2	Part 10	-
11	KK61038	1	Spring	(B)
12	KK61039	1	Spring	(B)
13	-	2	Part 13	(B)
14	-	2	Part 14	(B)
15	KK70333	1	Tarpaulin	Includes Parts Marked by (A)
16	KK70330	1	Tube	Includes Parts Marked by (B)
17	KK61128	1	Spool Kit	-
18	KK70328	1	Hook	-
19	KK70327	1	Retainer	-
20	KK70289	1	Plate	-
21	KK61043	1	Tarpaulin	Tarp Stop Upright
22	KK61042	1	Tarpaulin	Tarp Stop Body
23	KK61040	2	Cotter Pin	-
24	KK61041	2	U-Joint Lock Pin	-
25	KK61135	1	Tarpaulin	Tarp Stop W/ Hardware
26	KK66530	1	Tube	-
27	-	1	Part 27	-
28	-	2	Part 28	-
29	-	1	Part 29	(C)
30	-	2	Part 30	(C)
31	-	4	Part 31	(C)
32	-	3	Part 32	-
33	-	3	Part 33	(C)
34	-	2	Part 34	(C)
35	KK61133	1	Cable	-
35	KK70288	1	Crank Kit	Includes Parts Marked (C)
36	AKK38309	1	Spreader	-

Tarp Mountings and Spools, Drybox Spreader

Нет текстового описания
