Hydraulic Tread Adjust Cylinders / Pressure Valve and Hoses

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H77698	16	Tie Band	-
2	-	3	Part 2	CTL 546 mm, MF T107029
3	34M7049	4	Spring Pin	8 X 50 mm
4	N186178	4	Pin Fastener	-
5	AA21292	4	Quick Lock Pin	-
6	38H5339	1	Elbow Fitting	-
7	T76938	1	O-Ring	-
8	38H5403	1	Adapter Fitting	-
9	38H5319	7	Adapter Fitting	-
10	T77613	14	O-Ring	-
11	51M7042	11	O-Ring	13.300 X 2.200 mm
12	AT252685	1	Hose Guard	-
13	T77858	4	O-Ring	-
14	51M7047	2	O-Ring	23.600 X 2.900 mm
15	38H5321	1	Adapter Fitting	-
16	51M7043	1	O-Ring	15.300 X 2.200 mm
17	AN403704	1	Diagnostic Coupling	-
18	51M7041	2	O-Ring	11.300 X 2.200 mm
19	R77175	1	Cover	-
20	T26955	4	Clamp	-
21	19M7835	4	Screw	M10 X 35
22	24M7523	4	Washer	10.500 X 30 X 2.500 mm
23	AT116162	4	Isolator	-
24	AKK39108	1	Hydraulic Pressure Valve	-
25	14M7723	6	Lock Nut	M10
26	19M9986	4	Screw	M10 X 35
27	14M7722	2	Lock Nut	M8
28	19M9837	1	Screw	M8 X 25
29	AKK18167	4	Pin	-
30	24M7617	4	Washer	17 X 30 X 3 mm
31	KK55676	1	Support	-
32	KK55747	1	Support	-
33	38H5331	1	Elbow Fitting	-
34	19M7786	2	Screw	M10 X 30
35	38H1473	1	Reducer	-
36	38H1356	1	Tube Nut	-
37	38H5405	1	Tee Fitting	-
38	51M7048	3	O-Ring	29.600 X 2.900 mm
39	38H5286	1	Elbow Fitting	-
40	AHC21570	2	Hydraulic Cylinder	-
40	AHC20031	2	Hydraulic Cylinder Kit	-
41	AKK36352	1	Hydraulic Hose	Tread Adjust, Front Right Outer
42	AKK36355	1	Hydraulic Hose	Tread Adjust, Front Right Outer
43	38H5001	8	Adapter Fitting	-
44	T77814	8	O-Ring	-
45	51M7040	8	O-Ring	9.300 X 2.200 mm
46	AKK36353	1	Hydraulic Hose	Tread Adjust, Front Right Outer
47	38H5308	4	Elbow Fitting	-
48	AKK36356	1	Hydraulic Hose	Tread Adjust, Rear Left Outer
49	AKK36354	1	Hydraulic Hose	Tread Adjust, Front Right Outer
50	AHC21569	2	Hydraulic Cylinder	-
50	AHC20032	2	Hydraulic Cylinder Kit	-
51	64M1036	2	Drain Plug	-
52	AKK36357	1	Hydraulic Hose	Tread Adjust, Rear Left Outer
53	AKK36358	1	Hydraulic Hose	Tread Adjust, Rear Left Outer
54	AKK36359	1	Hydraulic Hose	Tread Adjust, Rear Left Outer
55	T181801	4	Clamp	-
56	KK43752	4	Hose Clamp	-
57	H114901	1	Plate	-
58	H114898	2	Clamp	-
59	19M8039	1	Screw	M8 X 80

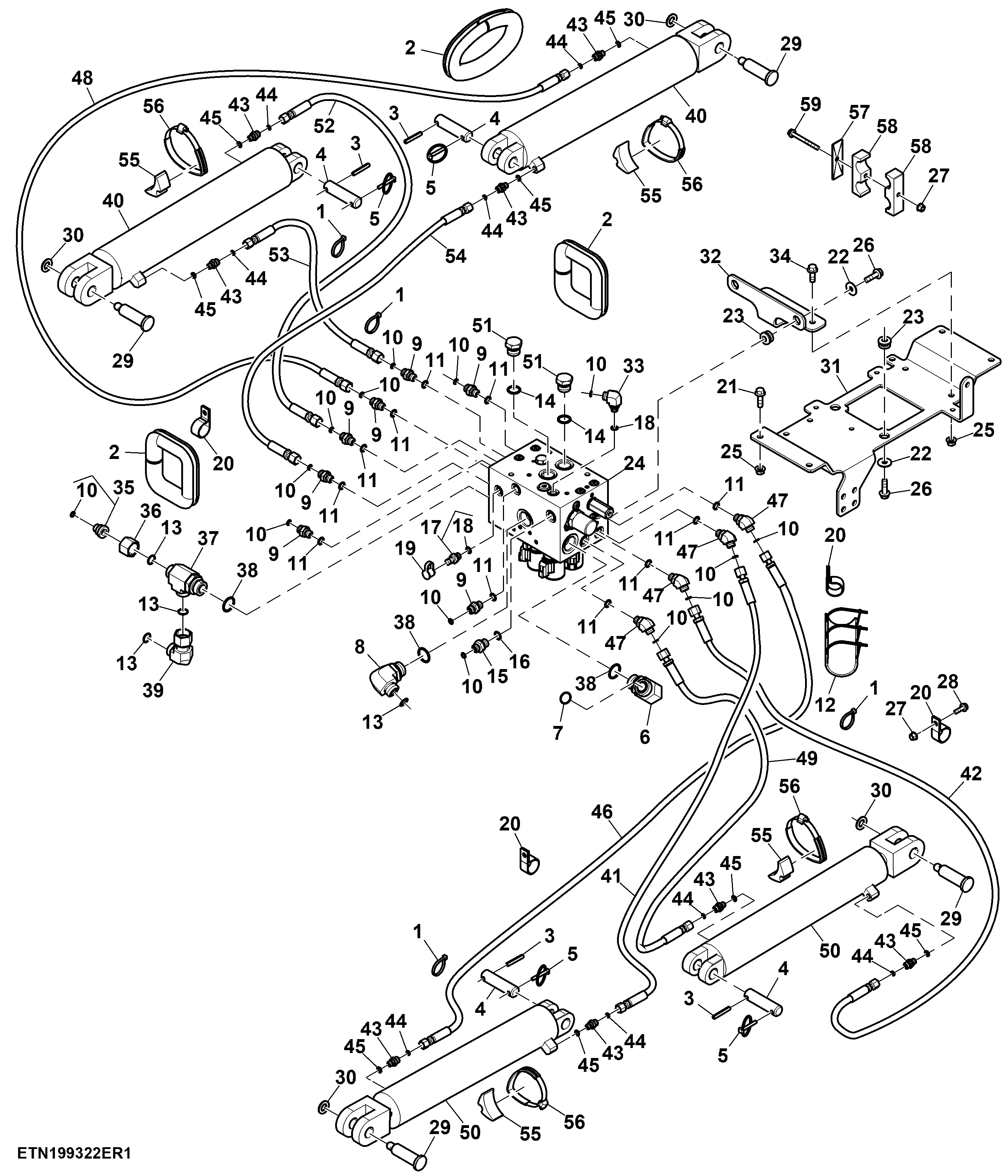

Hydraulic Tread Adjust Cylinders / Pressure Valve and Hoses
