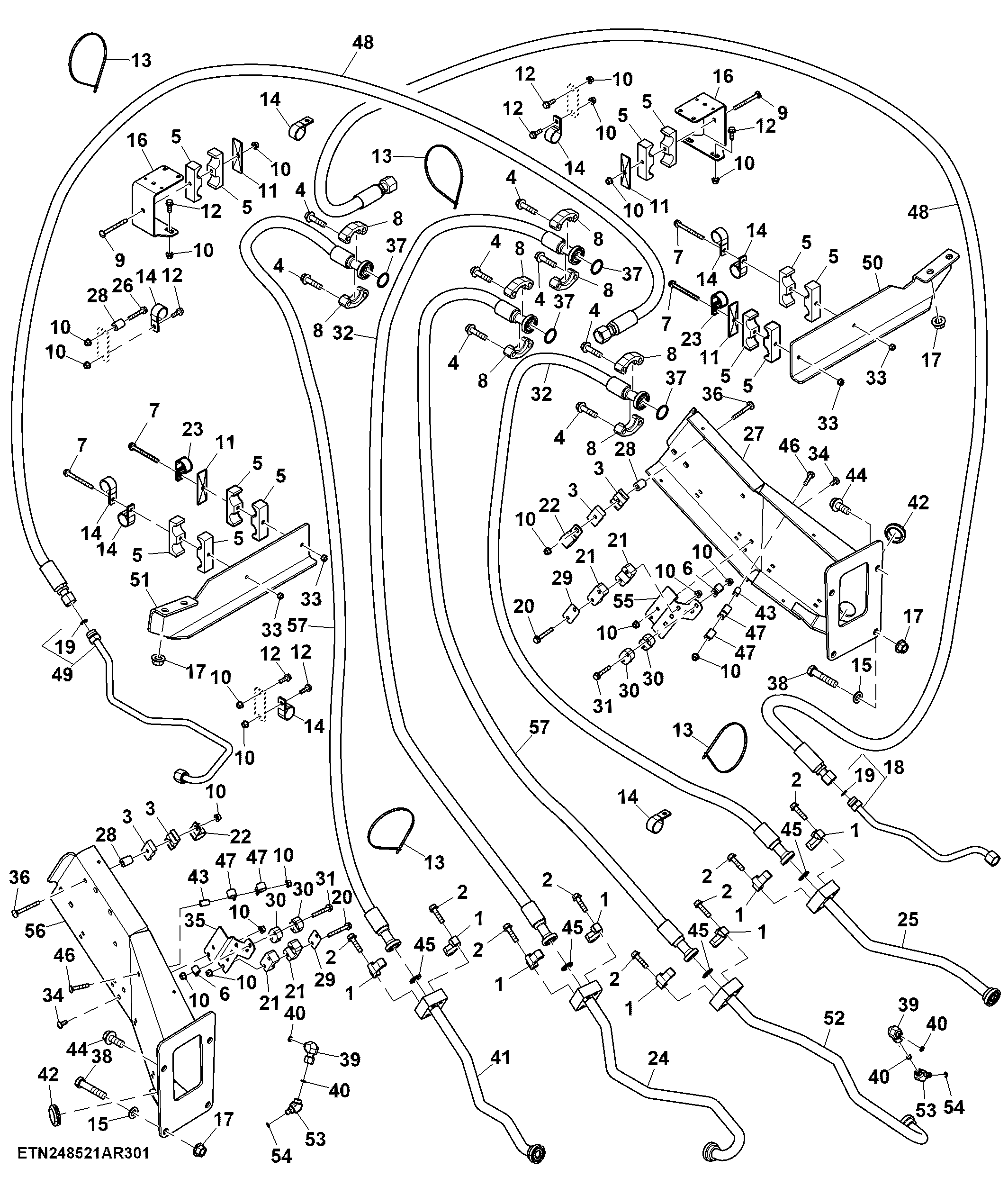

Hydraulic Hoses and Fittings, Rear Wheel Motor

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T107446	8	Flange Fitting	-
2	19M9846	16	Screw	M10 X 40
3	H120847	4	Clamp	-
4	19M10077	24	Screw	M12 X 50
5	H114898	20	Clamp	-
6	AH80916	2	Clip	-
7	19M9843	6	Screw	M8 X 90
8	T107068	12	Flange Fitting	-
9	03M7373	4	Bolt	M8 X 85
10	14M7722	44	Lock Nut	M8
11	H114901	6	Plate	-
12	19M9837	19	Screw	M8 X 25
13	H77698	16	Tie Band	-
14	T26955	14	Clamp	-
15	24M7617	2	Washer	17 X 30 X 3 mm
16	KK45981	4	Bracket	-
17	14M7590	6	Flange Nut	M16
18	AKK26815	1	Line	LH, Case Drain
19	T77932	2	O-Ring	-
20	19M9842	8	Screw	M8 X 60
21	H142721	8	Clamp	-
22	R46667	2	Clamp	-
23	N198631	2	Clamp	-
24	AKK28660	1	Line	RH, Forward
25	AKK28662	1	Line	LH, Reverse
26	19M8319	1	Screw	M8 X 50
27	AKK24817	1	Bracket	-
28	H130269	3	Spacer	-
29	KK47666	4	Strap	-
30	H115533	4	Clamp	-
31	19M9841	4	Screw	M8 X 50
32	AKK39777	2	Hydraulic Hose	Rear Propel
33	14M7707	7	Lock Nut	M8
34	03M7390	4	Bolt	M8 X 20
35	KK63781	1	Bracket	-
36	03M7321	2	Bolt	M8 X 75
37	T78313	6	O-Ring	-
38	19M9828	2	Cap Screw	M16 X 80
39	38H1094	2	Elbow Fitting	-
40	T77613	4	O-Ring	-
41	AKK28663	1	Line	RH, Reverse
42	N319067	2	Grommet	-
43	28H3423	2	Bushing	0.364" X 0.540" X 7/8"
44	19M9982	2	Screw	M16 X 40
45	T59014	4	O-Ring	-
46	03M7399	2	Bolt	M8 X 45
47	AH77724	4	Clip	-
48	AKK28766	2	Hydraulic Hose	Case Drain
49	AKK28716	1	Line	RH, Case Drain
50	N302273	1	Bracket	-
51	N302272	1	Bracket	-
52	AKK28661	1	Line	LH, Forward
53	38H1564	2	Elbow Fitting	-
54	R28782	2	O-Ring	-
55	KK63779	1	Bracket	-
56	AKK24818	1	Bracket	-
57	AKK39776	2	Hydraulic Hose	Rear Propel

Hydraulic Hoses and Fittings, Rear Wheel Motor
