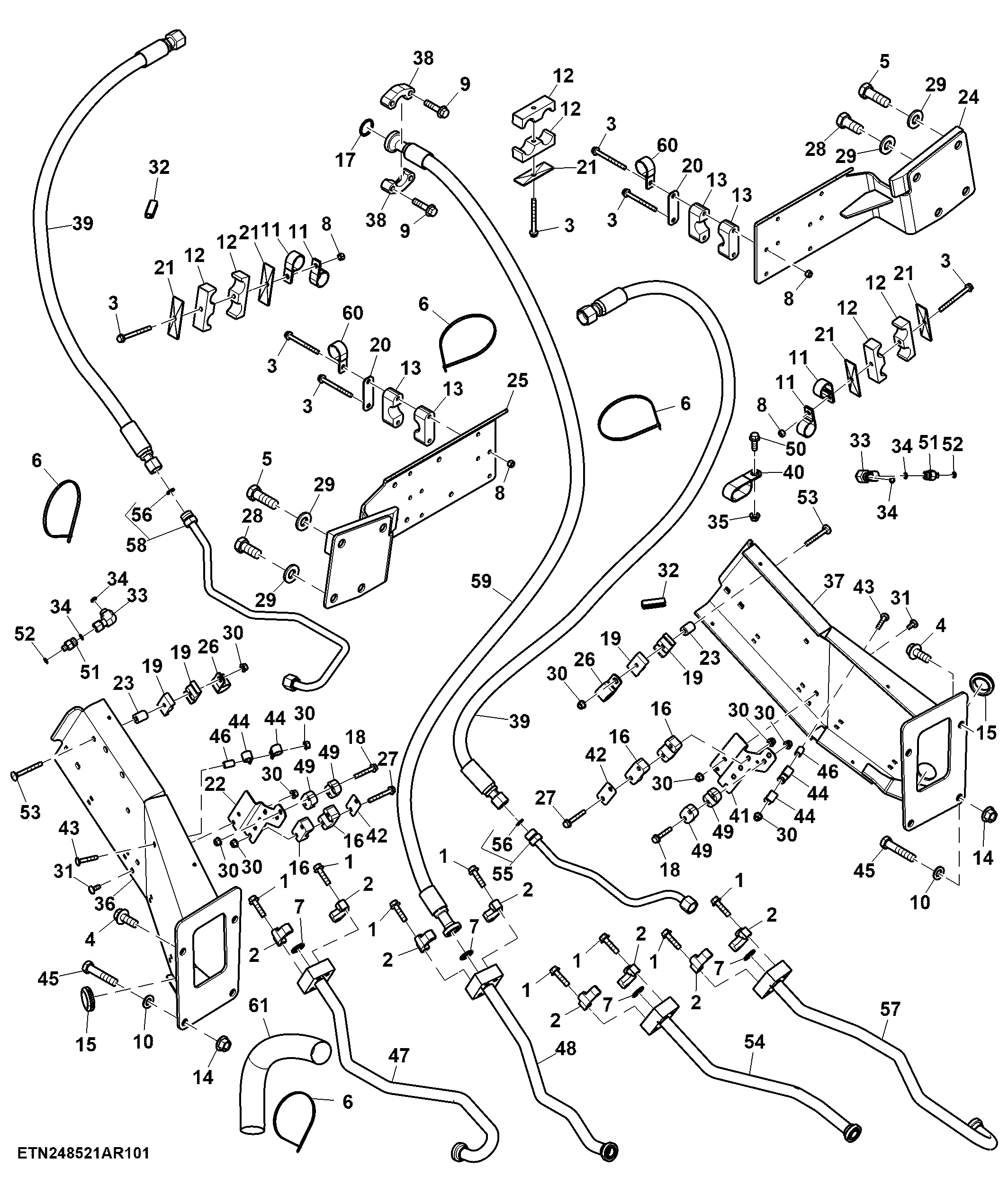

Hydraulic Hoses and Fittings, Front Wheel Motor

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9846	16	Screw	M10 X 40
2	T107446	8	Flange Fitting	-
3	19M9843	15	Screw	M8 X 90
4	19M9982	2	Screw	M16 X 40
5	19M9154	4	Cap Screw	M20 X 60
6	H77698	26	Tie Band	-
7	T59014	4	O-Ring	-
8	14M7707	14	Lock Nut	M8
9	19M10077	5	Screw	M12 X 50
10	24M7617	2	Washer	17 X 30 X 3 mm
11	T26955	7	Clamp	-
12	H114898	6	Clamp	-
13	H140180	8	Clamp	-
14	14M7590	2	Flange Nut	M16
15	N319067	2	Grommet	-
16	H142721	8	Clamp	-
17	T78313	2	O-Ring	-
18	19M9841	4	Screw	M8 X 50
19	H120847	4	Clamp	-
20	N370676	4	Strap	-
21	H114901	5	Plate	-
22	KK63781	1	Bracket	-
23	H130269	2	Spacer	-
24	AKK40201	1	Support	-
25	AKK40202	1	Support	-
26	R46667	2	Clamp	-
27	19M9842	8	Screw	M8 X 60
28	19M10369	4	Cap Screw	M20 X 45
29	24M7558	8	Washer	21.400 X 42 X 5 mm
30	14M7722	20	Lock Nut	M8
31	03M7390	4	Bolt	M8 X 20
32	-	2	Part 32	CTL 127 mm, MF T61861
33	38H1094	2	Elbow Fitting	-
34	T77613	4	O-Ring	-
35	14M7648	1	Flange Nut	M10
36	AKK24818	1	Bracket	-
37	AKK24817	1	Bracket	-
38	T107068	4	Flange Fitting	-
39	AKK28764	2	Hydraulic Hose	Case Drain
40	T149597	1	Clamp	-
41	KK63779	1	Bracket	-
42	KK47666	4	Strap	-
43	03M7399	2	Bolt	M8 X 45
44	AH77724	4	Clip	-
45	19M9828	2	Cap Screw	M16 X 80
46	28H3423	2	Bushing	0.364" X 0.540" X 7/8"
47	AKK23986	1	Line	RH, Forward
48	AKK23993	1	Line	RH, Reverse
49	H115533	4	Clamp	-
50	19M9370	1	Screw	M10 X 30
51	38H1309	2	Adapter Fitting	-
52	R28782	2	O-Ring	-
53	03M7321	2	Bolt	M8 X 75
54	AKK24079	1	Line	LH, Reverse
55	AKK26815	1	Line	LH, Case Drain
56	T77932	2	O-Ring	-
57	AKK24078	1	Line	LH, Forward
58	AKK26816	1	Line	RH, Case Drain
59	AKK40446	1	Hydraulic Hose	Front Propel
60	N198631	2	Clamp	-
61	KK38463	2	Hose	-

Hydraulic Hoses and Fittings, Front Wheel Motor
