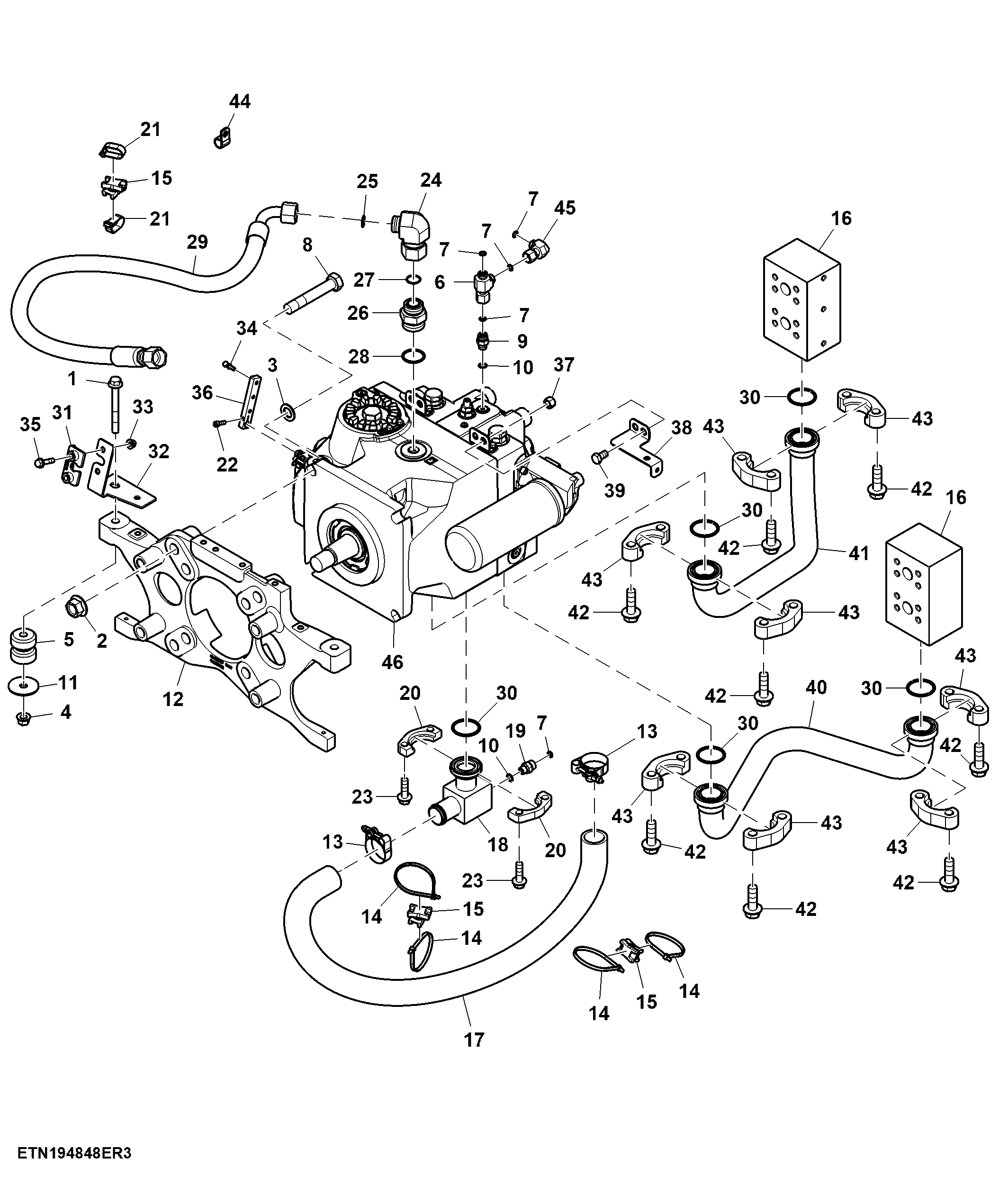

Fittings and Hoses, Hydrostatic Pump

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M10063	2	Screw	M12 X 110
2	14M7652	4	Flange Nut	M20
3	R283755	4	Washer	21.260 X 39.200 X 5 mm (0.837" X 1.543" X 0.197")
4	14M7724	2	Lock Nut	M12
5	AM129013	2	Isolator	-
6	38H5293	1	Tee Fitting	-
7	T77613	5	O-Ring	-
8	19M9137	4	Cap Screw	M20 X 120
9	38H3160	1	Adapter Fitting	-
10	R26448	2	O-Ring	-
11	24H1972	2	Washer	9/16" X 2-1/4" X 0.134"
12	KK39529	1	Bracket	-
13	AN209543	2	Hose Clamp	-
14	H77698	2	Tie Band	-
15	AN209168	3	Swivel	-
16	KK38909	2	Manifold	Propulsion
17	AKK23826	1	Hydraulic Hose	Suction Line
18	KK41109	1	Oil Line	Hydro Pump Suction
19	38H1160	1	Adapter Fitting	-
20	X51H-24	2	Flange Fitting	-
21	H113197	4	Tie Band	-
22	19M9869	1	Socket Head Screw	M6 X 20
23	19M9985	4	Screw	M12 X 40
24	38H5379	1	Adapter Fitting	-
25	T77858	1	O-Ring	-
26	38H1180	1	Adapter Fitting	-
27	T76938	1	O-Ring	-
28	U13639	1	O-Ring	-
29	AKK23064	1	Hydraulic Hose	Case Drain
30	T34248	5	O-Ring	-
31	KK29259	1	Bracket	-
32	KK46939	1	Bracket	-
33	14M7722	2	Lock Nut	M8
34	55M7012	1	Ball Stud	-
35	19M9839	2	Screw	M8 X 35
36	KK46944	1	Plate	-
37	14M7653	2	Lock Nut	M12
38	KK41287	1	Bracket	-
39	19M8017	2	Cap Screw	M12 X 20
40	AKK28403	1	Tube	Hydro
41	AKK28404	1	Tube	Hydro
42	19M7794	16	Screw	M16 X 50
43	T283826	8	Flange Fitting	-
44	AH78125	1	Clip	-
45	38H1094	1	Elbow Fitting	-
46	AKK33712	1	Hydraulic Pump	-

Fittings and Hoses, Hydrostatic Pump
