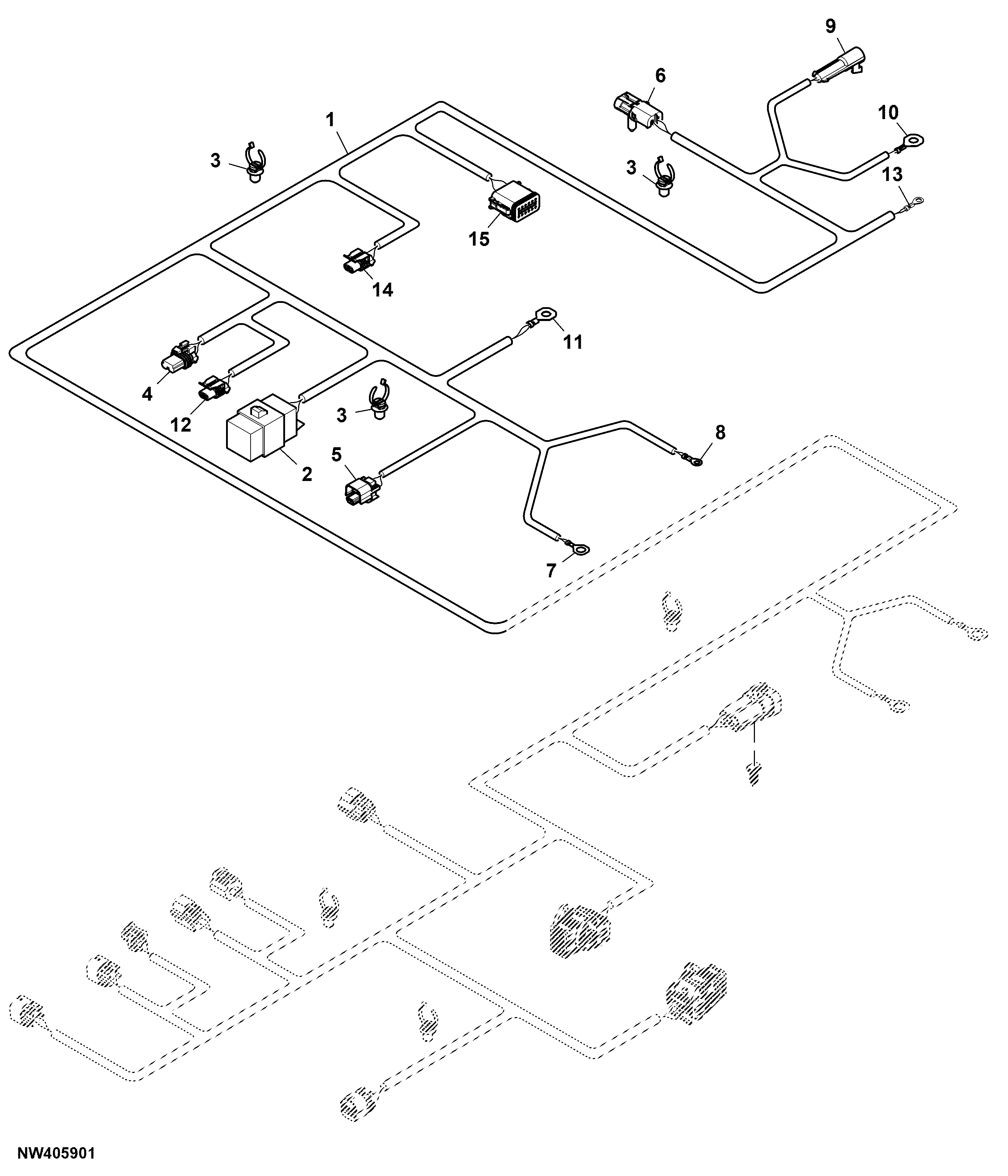

Engine Wiring Harness, Tier 2 (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK30183	1	Wiring Harness	-
2	57M8945	1	Relay	Fuel Pump Relay
2	57M9218	1	Elec. Connector Seal	-
2	57M7707	2	Elec. Connector Terminal	Cavity 86, 87
2	57M9219	2	Elec. Connector Seal	-
2	57M7904	1	Elec. Connector Terminal	Cavity 85
2	57M9216	1	Elec. Connector Seal	-
2	57M7903	1	Elec. Connector Housing	Cavity 30
2	57M8878	1	Elec.Connect Locking Device	-
2	57M7966	1	Electrical Connector Assy	-
3	T209627	1	Clamp	-
4	57M8161	1	Elec. Connector Housing	Fuel Lift Pump
4	57M8162	1	Electrical Connector Assy	-
4	57M7297	2	Elec. Connector Terminal	Cavity A, B
4	57M9218	2	Elec. Connector Seal	-
5	57M8601	1	Elec. Connector Housing	Manifold Air Temperature
5	57M8633	1	Elec. Connector Accessory	-
5	57M8618	2	Elec. Connector Terminal	Cavity A, B
5	57M8566	2	Elec. Connector Seal	-
6	57M9219	2	Elec. Connector Seal	-
6	57M9570	1	Electrical Connector Assy	Air Filter Restriction
6	57M7251	2	Elec. Connector Terminal	Cavity A, B
7	57M8867	1	Elec. Connector Terminal	-
8	57M8875	1	Elec. Connector Terminal	-
9	57M7293	1	Elec. Connector Housing	Air Conditioning Clutch
9	57M7295	1	Elec.Connect Locking Device	-
9	57M7285	1	Elec. Connector Terminal	-
9	57M9218	1	Elec. Connector Seal	-
10	57M8868	1	Elec. Connector Terminal	-
11	57M8867	1	Elec. Connector Terminal	-
12	57M7289	1	Elec.Connect Locking Device	-
12	57M9215	2	Elec. Connector Seal	-
12	57M7494	2	Elec. Connector Terminal	Cavity A, B
12	57M7254	1	Elec. Connector Housing	Water in Fuel
13	57M8875	1	Elec. Connector Terminal	-
14	57M7254	1	Elec. Connector Housing	-
14	57M7289	1	Elec.Connect Locking Device	-
14	AN206290	1	Wiring Harness	-
14	R104846	2	Elec. Connector Terminal	Cavity A, B
14	57M7258	2	Elec. Connector Seal	-
15	57M8636	1	Elec. Connector Housing	Fuel Injection Connector
15	57M8009	1	Elec.Connect Locking Device	-
15	57M7546	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 9, 10, 11, 12

Engine Wiring Harness, Tier 2 (2 of 2)
