Открытый узел

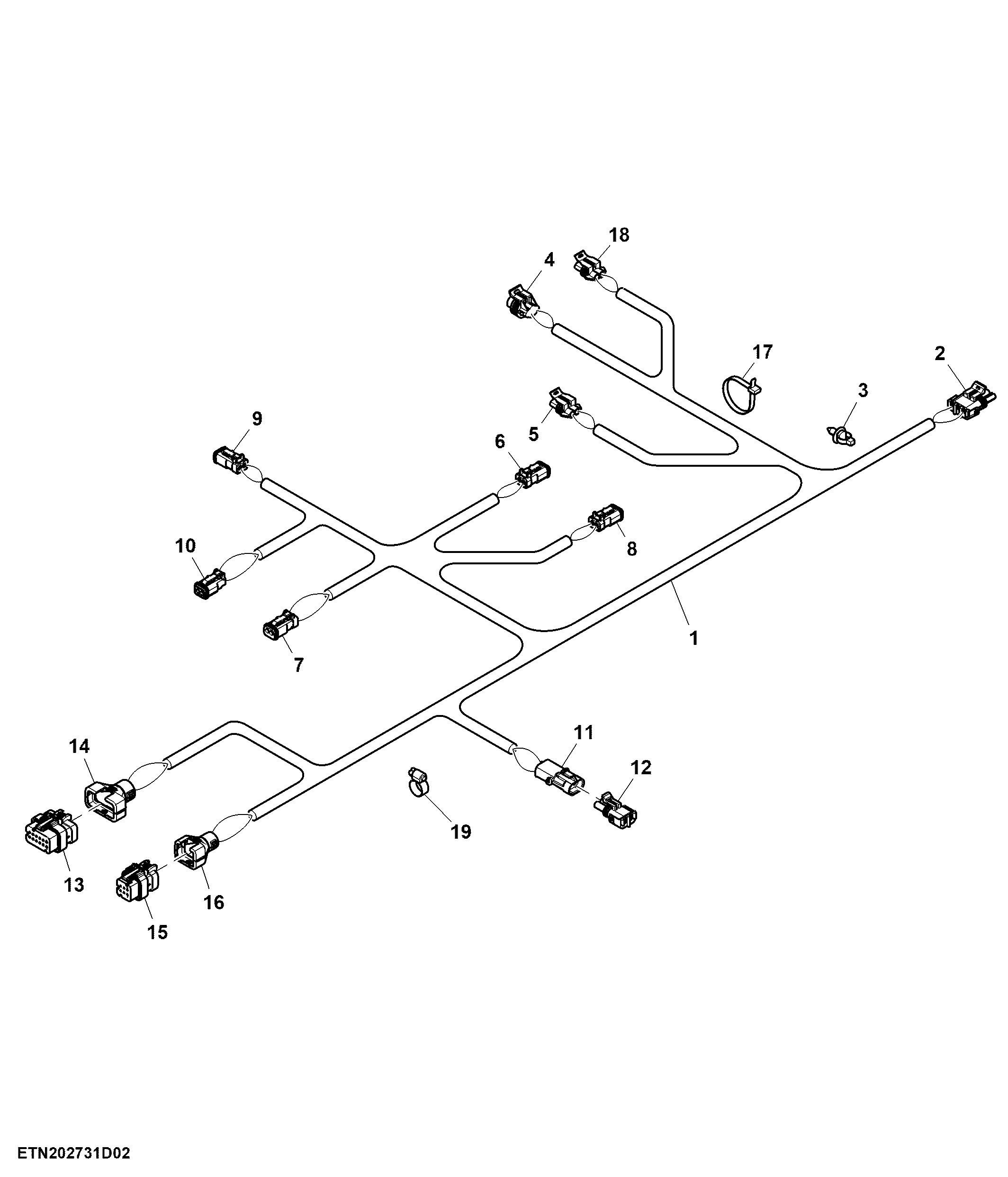

Dry Box Spreader, Wiring Harness, LH

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK42189	1	Wiring Harness	-
1	AKK29962	1	Wiring Harness	LH Side, ORDER AKK42189
2	57M10924	3	Elec. Connector Terminal	Cavity A, B, C
2	57M9549	3	Elec. Connector Seal	Cavity A, B, C
2	RE12364	1	Electrical Connector Assy	Spinner Speed Sensor, XB94
3	RE258807	14	Tie Band	USE WITH AKK29962
3	RE258807	12	Tie Band	USE WITH AKK42189
4	57M7349	1	Elec. Connector Accessory	Left Brake Light, XE29, USE WITH AKK29962
4	57M10770	4	Elec. Connector Terminal	Cavity A, B, C, D
4	57M9215	4	Elec. Connector Seal	Cavity A, B, C, D
4	57M7347	1	Elec. Connector Accessory	-
4	57M8542	1	Elec. Connector Housing	Left Tail and Stop Light, XE218–X1, USE WITH AKK42189
4	57M8571	3	Elec. Connector Terminal	Cavity A, B, C
4	57M7938	3	Elec. Connector Terminal	Cavity A, B, C
5	57M10770	2	Elec. Connector Terminal	Cavity A, B
5	57M9556	1	Elec. Connector Accessory	-
5	57M9696	1	Elec. Connector Terminal	-
5	57M9215	2	Elec. Connector Seal	Cavity A, B
5	57M7254	1	Elec. Connector Housing	License Plate Lamp, XE18
6	57M8639	1	Elec. Connector Housing	Right Feedgate Valve, XY90
6	R78065	2	Elec. Connector Terminal	Cavity 1, 2
6	57M8022	1	Elec.Connect Locking Device	-
6	57M11230	1	Elec. Connector Accessory	-
7	57M8639	1	Elec. Connector Housing	Enable Valve, XY85
7	R78065	2	Elec. Connector Terminal	Cavity 1, 2
7	57M8022	1	Elec.Connect Locking Device	-
8	57M11230	1	Elec. Connector Accessory	-
8	57M8022	1	Elec.Connect Locking Device	-
8	57M8639	1	Elec. Connector Housing	Left Feedgate Valve, XY89
8	R78065	2	Elec. Connector Terminal	Cavity 1, 2
9	57M8639	1	Elec. Connector Housing	Conveyor Prop Valve, XY87
9	R78065	2	Elec. Connector Terminal	Cavity 1, 2
9	57M8022	1	Elec.Connect Locking Device	-
10	57M7534	1	Elec. Connector Housing	Spinner Prop Valve, XY86
10	R78065	2	Elec. Connector Terminal	Cavity 1, 2
10	57M7620	1	Electrical Connector Assy	-
11	R78053	1	Electrical Connector Assy	Chain Oiler Pump, XM100
11	R78061	2	Elec. Connector Terminal	Cavity A, B
11	57M10915	2	Elec. Connector Accessory	Cavity A, B
12	RE12363	1	Electrical Connector Assy	-
13	57M10631	3	Elec. Connector Terminal	Cavity 6, 8, 11
13	57M10663	1	Elec. Connector Terminal	Cavity 12
13	57M9809	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 7, 9, 10
13	57M9800	1	Elec. Connector Housing	Left Hand Side Drybox/Chassis Harness Interconnect 1, XX153-2
14	57M9844	1	Elec. Connector Accessory	-
15	57M9750	1	Elec. Connector Housing	Left Hand Side Drybox / Chassis Harness Interconnect 2, XX155-2
15	57M9807	5	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 6
15	57M9814	1	Elec. Connector Cavity Plug	Cavity 5
16	57M9841	1	Elec. Connector Accessory	-
17	H77698	2	Tie Band	-
18	57M8542	1	Elec. Connector Housing	Left Rear Turn Light, XE218–2, USE WITH AKK42189
18	57M10770	2	Elec. Connector Terminal	Cavity A, B
18	57M9215	2	Elec. Connector Seal	Cavity A, B
18	57M7259	1	Elec. Connector Seal	Cavity C
18	57M7290	1	Elec. Connector Accessory	-
19	57M10630	4	Clip Kit	-

Dry Box Spreader, Wiring Harness, LH

Нет текстового описания
