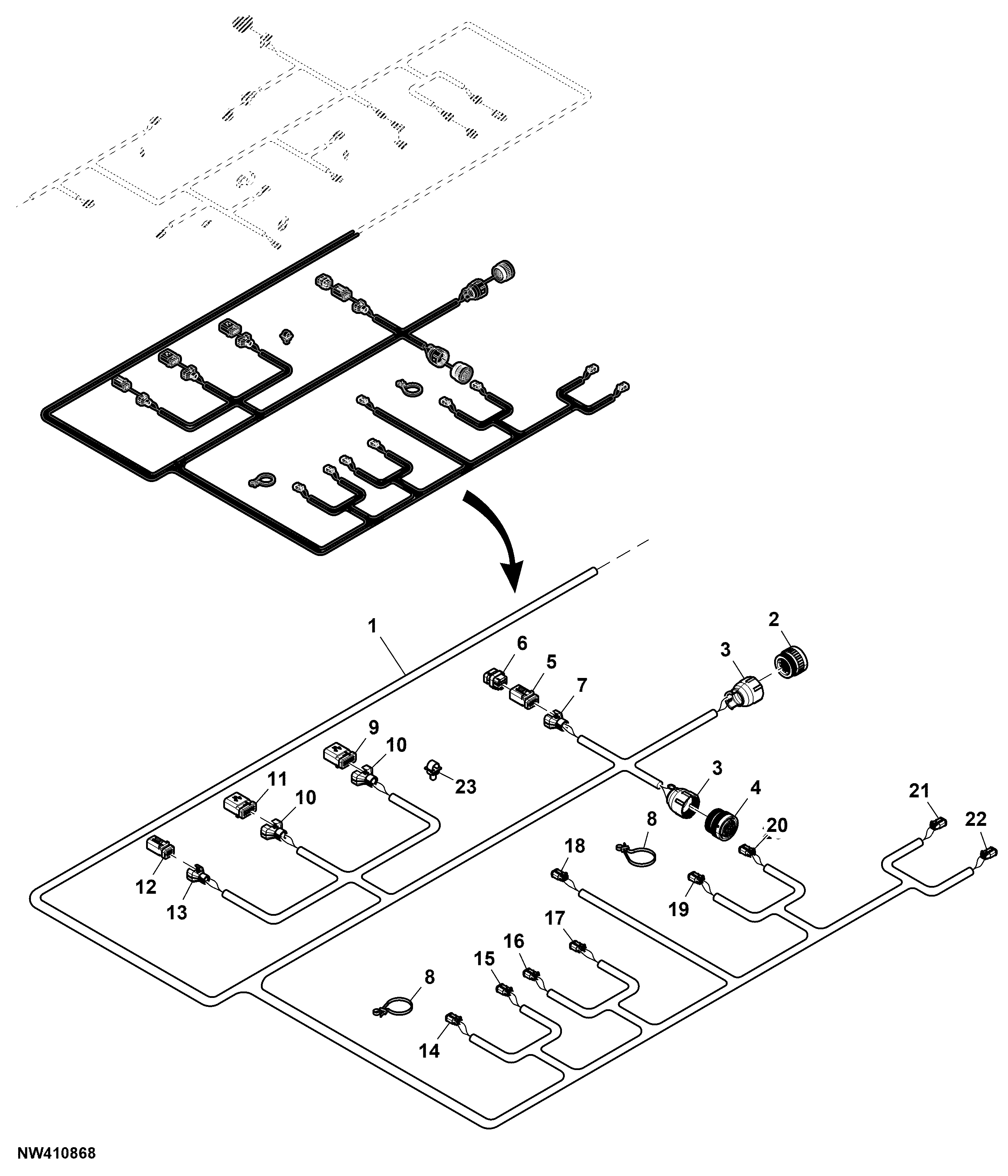

Chassis Wiring Harness, Tier 2, Dry Box (1 of 4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK44393	1	Wiring Harness	SUB FOR AKK34766
2	57M11793	1	Elec. Connector Housing	Cab Harness Connector 2, XX006-2
2	57M7771	7	Elec. Connector Terminal	Cavity 15, 17, 20, 22, 25, 38, 39
2	R78065	5	Elec. Connector Terminal	Cavity 1, 4, 5, 6, 34
2	57M8430	36	Elec. Connector Terminal	Cavity 2, 3, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 21, 23, 24, 26, 27, 28, 29, 30, 31, 32, 33, 35, 36, 37, 40, 41, 42, 43, 44, 47
3	57M11899	2	Elec. Connector Accessory	-
4	57M11754	1	Elec. Connector Housing	Cab Harness Connector 1, XX005-2
4	57M13856	1	Elec. Connector Terminal	Cavity 1
4	R78065	16	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 10, 11, 12, 14, 15, 16, 17, 19, 21, 25, 26, 28
4	57M9526	1	Elec. Connector Terminal	Cavity 9
4	57M8430	5	Elec. Connector Terminal	Cavity 18, 20, 23, 24, 29
4	R78069	3	Elec. Connector Cavity Plug	Cavity 2, 3, 4
4	Z78008	2	Elec. Connector Seal	Cavity 13, 22
4	57M7771	1	Elec. Connector Terminal	Cavity 27
5	57M9940	1	Elec. Connector Accessory	-
5	R78066	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8
5	57M9760	1	Elec. Connector Housing	Modular Telematics Gateway Harness Interconnect, XX089-1
6	57M9756	1	Elec. Connector Housing	-
7	57M9843	1	Elec. Connector Accessory	-
8	57M10421	4	Elec. Connector Accessory	-
9	57M9771	1	Elec. Connector Housing	Right Side Drybox Harness Interconnect, XX151-1
9	57M10322	6	Elec. Connector Terminal	Cavity 1, 4, 6, 7, 11, 12
9	57M9813	4	Elec. Connector Terminal	Cavity 3, 5, 9, 10
9	57M9814	2	Elec. Connector Cavity Plug	Cavity 2, 8
9	57M9940	1	Elec. Connector Accessory	-
10	57M9844	3	Elec. Connector Accessory	-
11	57M9768	1	Elec. Connector Housing	Left Side Drybox Harness Connector, XX153-1
11	R78066	12	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
11	57M9940	1	Elec. Connector Accessory	-
12	57M9940	1	Elec. Connector Accessory	-
12	57M9753	1	Elec. Connector Housing	Left Side Drybox Harness Interconnect 2, XX155-1
13	57M9841	1	Elec. Connector Accessory	-
14	57M8021	1	Electrical Connector Assy	Tread Adjust Right Front In Solenoid, XY28
14	R78065	2	Elec. Connector Terminal	Cavity 1, 2
14	57M8022	1	Elec.Connect Locking Device	-
15	57M8021	1	Electrical Connector Assy	Tread Adjust Right Front Out Solenoid, XY29
15	R78065	2	Elec. Connector Terminal	Cavity 1, 2
15	57M8022	1	Elec.Connect Locking Device	-
16	57M8021	1	Electrical Connector Assy	Tread Adjust Right Rear In Solenoid, XY30
16	R78065	2	Elec. Connector Terminal	Cavity 1, 2
16	57M8022	1	Elec.Connect Locking Device	-
17	57M8021	1	Electrical Connector Assy	Tread Adjust Right Rear Out Solenoid, XY2
17	R78065	2	Elec. Connector Terminal	Cavity 1, 2
17	57M8022	1	Elec.Connect Locking Device	-
18	R78065	2	Elec. Connector Terminal	Cavity 1, 2
18	57M8022	1	Elec.Connect Locking Device	-
18	57M8021	1	Electrical Connector Assy	Load Sense Jam Valve, XY62
19	57M8021	1	Electrical Connector Assy	Tread Adjust Left Rear In Solenoid, XY12
19	R78065	2	Elec. Connector Terminal	Cavity 1, 2
19	57M8022	1	Elec.Connect Locking Device	-
20	57M8021	1	Electrical Connector Assy	Tread Adjust Left Rear Out Solenoid, XY11
20	R78065	2	Elec. Connector Terminal	Cavity 1, 2
20	57M8022	1	Elec.Connect Locking Device	-
21	57M8021	1	Electrical Connector Assy	Tread Adjust Left Front In Solenoid, XY10
21	R78065	2	Elec. Connector Terminal	Cavity 1, 2
21	57M8022	1	Elec.Connect Locking Device	-
22	57M8021	1	Electrical Connector Assy	-
22	R78065	2	Elec. Connector Terminal	Cavity 1, 2
22	57M8022	1	Elec.Connect Locking Device	Tread Adjust Left Front Out Solenoid, XY9
23	57M10630	7	Clip Kit	-

Chassis Wiring Harness, Tier 2, Dry Box (1 of 4)
