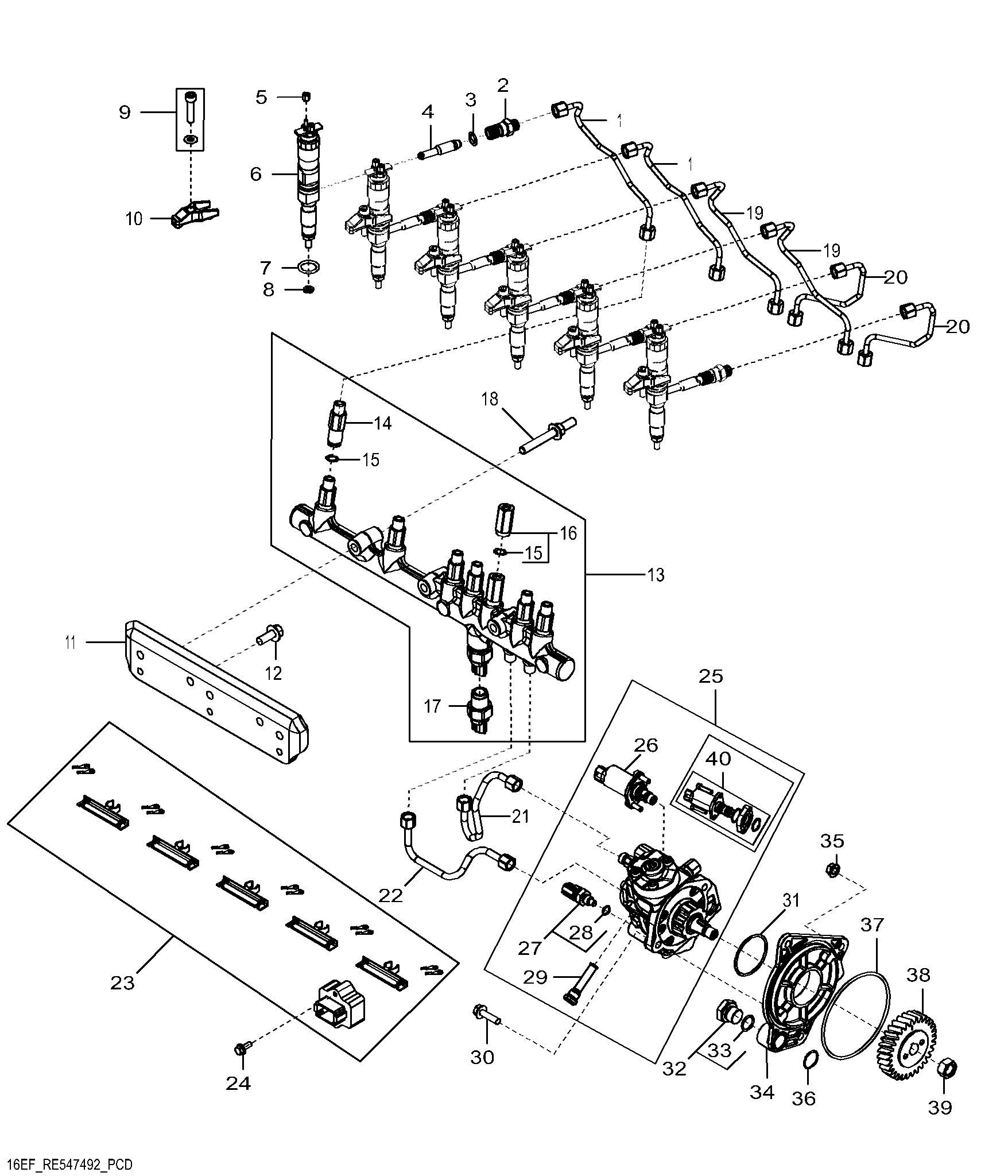

16EF Fuel Injection System ( - 735034)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ104959	2	Fuel Line	Cylinder 5 and 6, MARKED RE523249
2	R515044	6	Fitting	-
3	R65397	6	O-Ring	-
4	RE522594	6	Tube	-
5	R134920	12	Nut	-
6	DZ100218	6	Nozzle Kit	INCLUDES (2) R134920, R131051, R505452, R65397 AND RE522594; SUB FOR RE546780 AND RE533454
6	SE501934	1	Injection Nozzle Reman	REMAN FOR RE533454
7	R505452	6	O-Ring	-
8	R131051	6	Washer	-
9	RE528096	6	Screw With Washer	-
10	R522417	6	Clamp	-
11	R521530	1	Bracket	-
12	19M7785	2	Screw	M10 X 25
13	RE522596	1	Rail	-
14	RE515636	6	Restrictor	-
15	R515454	7	Shim	-
16	RE516335	1	Pressure Relief Valve	-
17	RE520930	1	Sensor	Common Rail Pressure Sensor
18	R529168	3	Stud	-
19	DZ104957	2	Fuel Line	Cylinder 3 and 4, SUB FOR RE507540
20	DZ104958	2	Fuel Line	Cylinder 1 and 2, SUB FOR RE507539
21	DZ104988	1	Fuel Line	SUB FOR RE544262
22	DZ104989	1	Fuel Line	SUB FOR RE544263
23	RE509093	1	Wiring Harness	-
24	19M7775	2	Screw	M6 X 16
25	RE507959	1	Fuel Injection Pump	SUB FOR RE527528
25	SE501915	1	Fuel Injection Pump Reman	REMAN FOR RE507959; SUB FOR SE501916
26	DZ111135	1	Control Valve	USE WITH RE507959; SUB FOR RE530337
27	RE516336	1	Fuel Temperature Sensor	-
28	R524234	1	O-Ring	-
29	RE516999	1	Screen	-
30	19M7868	2	Screw	M8 X 30
31	R516125	1	O-Ring	-
32	RE517370	1	Fitting	-
33	51M7044	1	O-Ring	17.300 X 2.200 mm
34	R504577	1	Adapter	-
35	14M7298	3	Flange Nut	M8
36	R116031	1	O-Ring	-
37	R55453	1	O-Ring	-
38	R502541	1	Gear	Z = 30
39	R91360	1	Nut	-
40	DZ111137	1	Control Valve	USE WITH RE527528; SUB FOR RE534109, RE532250 OR RE560091

16EF Fuel Injection System ( - 735034)
