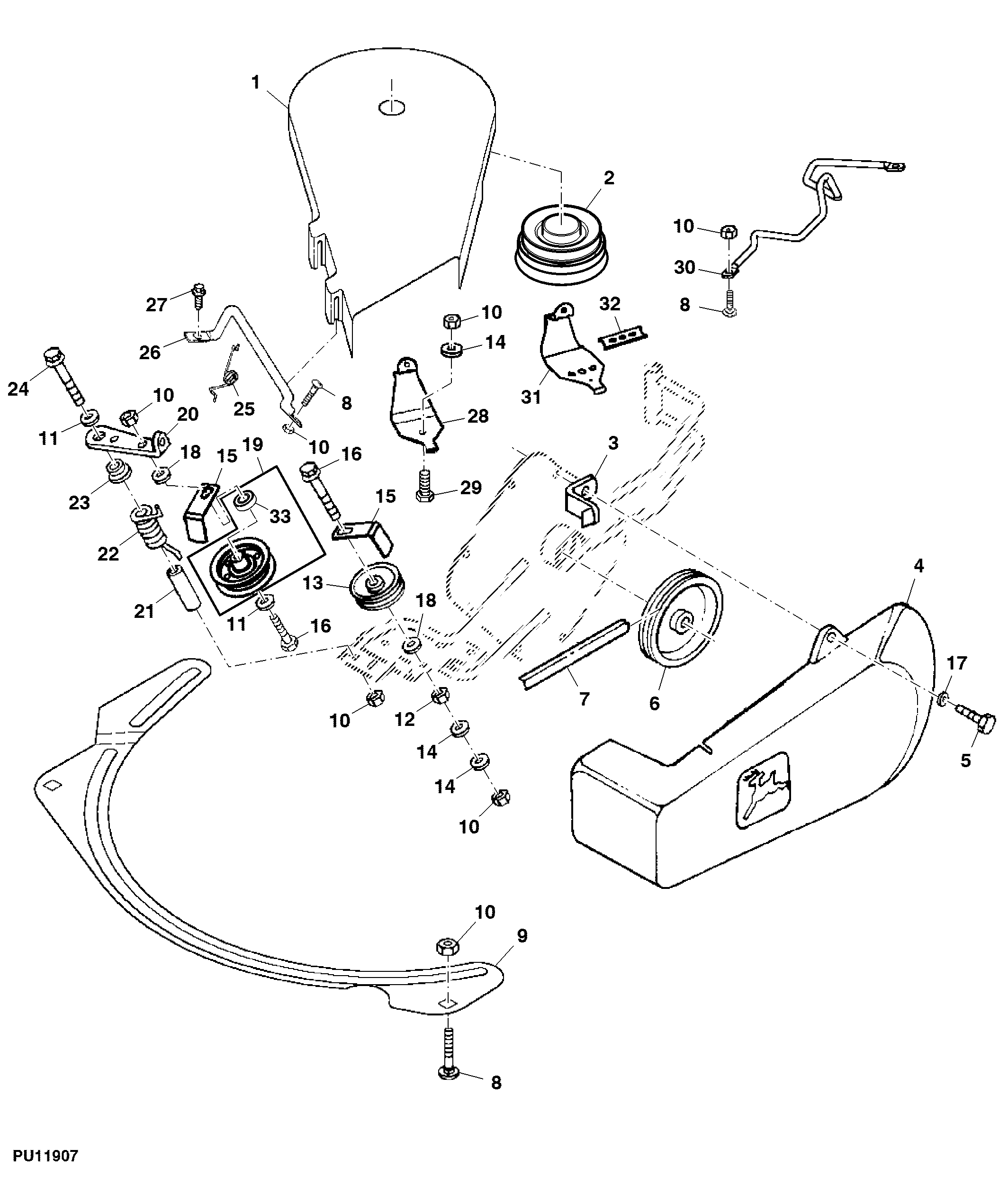

Belt, Idlers and Jacksheave, Power Flow

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M141541	1	Shield	SUB FOR M136524
2	AM126597	1	Idler	-
3	M142558	2	Finger	SUB FOR M126241
4	M133219	1	Shield	-
5	M140225	2	Bolt	NLA; ORDER TCU33283
5	TCU33283	10	Bolt	-
6	AM121832	1	Sheave	Driven
7	M138974	1	V-Belt	LGTH = 2020.2 mm, TK = 7.9 mm, WIDTH = 12.7 mm
8	03M7183	5	Bolt	M8 X 16
9	M135563	1	Plate	SUB FOR M135563BLE
10	14M7166	11	Lock Nut	M8
11	24H1887	2	Washer	11/32" X 1" X 0.134"
12	14M7273	1	Nut	M8
13	AM127458	1	Idler	-
14	24M7298	5	Washer	8.400 X 25 X 2 mm
15	M135488	2	Bracket	-
16	19M7801	2	Screw	M8 X 60
17	24M7139	2	Washer	6.400 X 18 X 1.600 mm
18	24H1621	2	Washer	11/32" X 1" X 0.220"
19	AM128189	1	Pulley With Dampener	Idler
20	M134447	1	Arm	Idler
21	M42308	1	Bushing	-
22	M123699	1	Spring	-
23	M110316	1	Washer	-
24	19M7873	1	Screw	M8 X 110
25	M112425	1	Torsion Spring	-
26	M136523	1	Support	-
27	M142313	1	Screw	NLA; ORDER M167872; SUB FOR M135478
27	M167872	1	Screw	-
28	AM129644	1	Brake	ORDER AM131651 AND M145566
29	19M7865	3	Screw	M8 X 16
30	M145650	1	Rod	Belt Guide SUB FOR M139721
31	AM131651	1	Brake	-
32	M145566	1	Strap	-
33	JD8535	1	Ball Bearing	-
34	03M7184	9	Bolt	M8 X 20, Not Illustrated
35	24M7024	2	Washer	9 X 28 X 3 mm, Not Illustrated
36	24M7207	2	Washer	8.400 X 24 X 2 mm, Not Illustrated
37	24H1139	1	Washer	11/16" X 1-1/4" X 0.105", Not Illustrated SUB FOR 24H899
38	14M7465	1	Lock Nut	M10, Not Illustrated
39	37M7463	1	Screw	M8 X 16, Not Illustrated
40	M143154	1	Bracket	Not Illustrated

Belt, Idlers and Jacksheave, Power Flow
