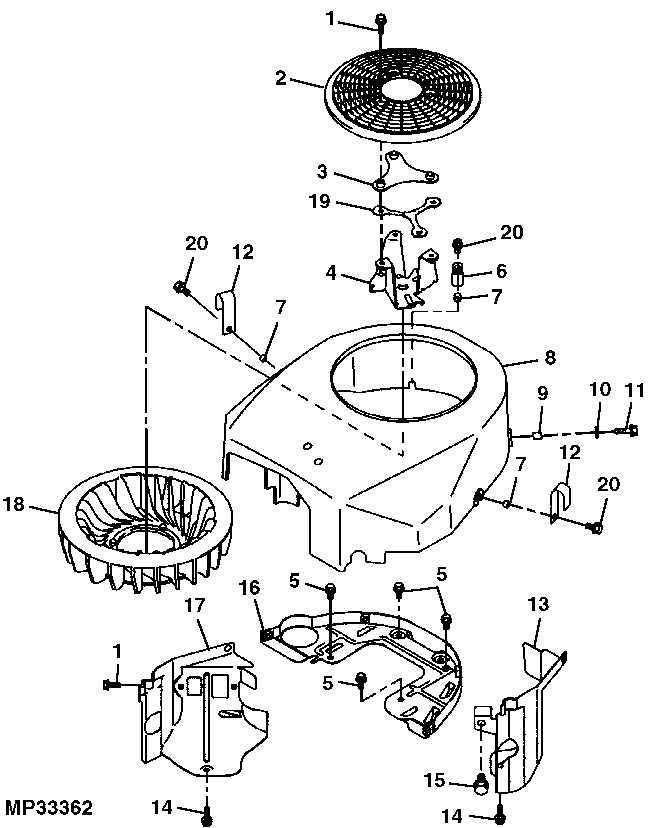

Flywheel Screen, Fan Housing and Engine Shrouds

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7862	3	Screw	M6 X 20, (A), ANTI-ICING KIT
1	19M7775	5	Screw	M6 X 16
2	M138432	1	Screen	-
2	-	1	Part 4	(A), ANTI-ICING (W/LABEL)
3	M138440	1	Spacer	-
4	M138433	1	Bracket	-
5	19M7774	4	Screw	M6 X 12
6	M149301	1	Clamp	(SUB FOR M70076); ENGINE MARKED FH500V-AS32
6	M149301	2	Clamp	ENGINE MARKED FH500V-BS32 and FH500V-CS32
7	M148369	3	Screw	(SUB FOR M138439); ENGINE MARKED FH500V-AS32
8	M148374	1	Housing	FAN, (SUB FOR M138438)
9	M138441	1	Spacer	NLA; ENGINE MARKED FH500V-AS32
10	24M7139	1	Washer	6.400 X 18 X 1.600 mm
11	M148469	1	Bolt	ENGINE MARKED FH500V-AS32, MARKED FH500V-BS32 AND FH500V-CS32; Shouldered
12	M148370	2	Clamp	SUB FOR M138442; ENGINE MARKED FH500V-AS32
12	M148370	1	Clamp	ENGINE MARKED FH500V-BS32 and FH500V-CS32
13	M138435	1	Shroud	-
14	19M7863	2	Screw	M6 X 25
15	19M7865	1	Screw	M8 X 16
16	M147268	1	Shroud	-
17	M149300	1	Shroud	(SUB FOR M138434)
18	MIU11268	1	Fan	NLA; ORDER MIU13857; SUB FOR M151717
18	MIU13857	1	Fan	-
19	M140249	1	Spacer	ENGINE MARKED FH500V-BS32 and FH500V-CS32
19	M140249	4	Spacer	(A), Anti-Icing Kit; ENGINE MARKED FH500V-AS32, FH500V-BS32 and FH500V-CS32
20	19M7774	3	Screw	M6 X 12, ENGINE MARKED FH500V-AS32
20	M148369	3	Screw	ENGINE MARKED FH500V-BS32 and FH500V-CS32
..	M144889	1	Label	ENGINE ROTATING SCREEN (NLA)
..	AM135317	1	Screen Kit	ANTI-ICING (INCLUDES PARTS MARKED (A))
