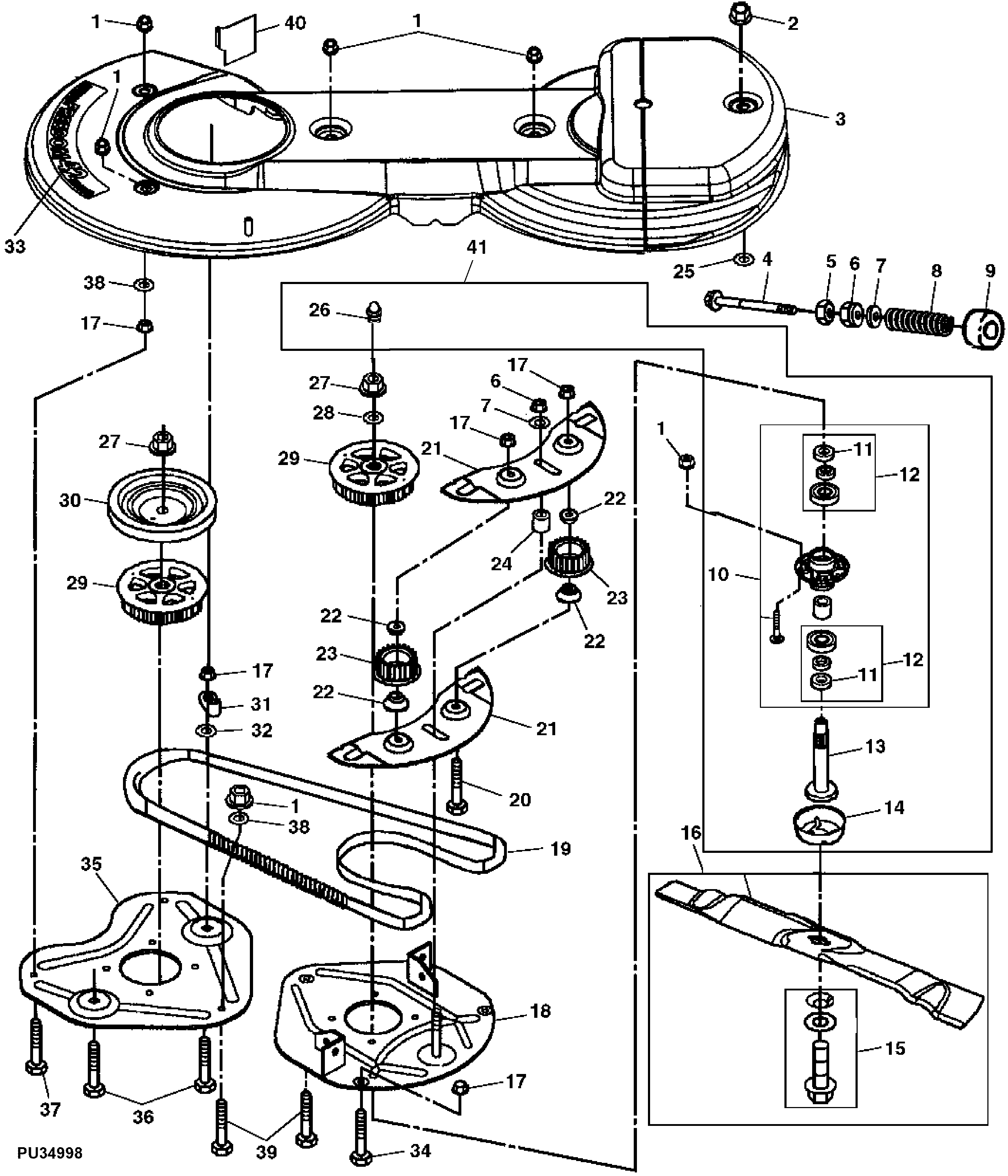

MOWER DRIVE BELT, SHEAVES, SPINDLES AND BLADES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7396	12	Lock Nut	M8
2	14M7401	1	Lock Nut	M12
3	AM130218	1	Cover	-
4	M141553	1	Rod	SECONDARY TENSION
5	14M7415	1	Nut	M12
6	14M7299	2	Flange Nut	M12
7	24M7180	2	Washer	13 X 37 X 3 mm
8	M141561	1	Compression Spring	-
9	M141555	1	Sleeve	-
10	AM131680	2	Housing	ORDER AM135349; SUB FOR AM124498
10	AM135349	2	Bearing With Housing	ORDER AM144377
11	ET15755	2	Seal	-
12	AM115721	2	Bearing Kit	SPINDLE, SUB ET15755, M110008 AND M110024
13	M128503	2	Spindle	-
14	M131928	2	Deflector	-
15	AM127890	2	Bolt	-
16	AM130172	1	Mower Blade Kit	MARKED M130718, RH AND M130719, LH
17	14M7298	10	Flange Nut	M8
18	AM129605	1	Plate	LH
19	M150717	1	Synchronous Belt	SUB FOR M141558
20	19M7897	2	Screw	M8 X 35
21	M141549	2	Plate	IDLER SUPPORT
22	M110316	4	Washer	-
23	AM129750	2	Chain Sprocket	Z=22
24	M141551	1	Spacer	-
25	24M7047	1	Washer	13 X 24 X 2.500 mm
26	JD7849	2	Fitting	-
27	M131983	2	Nut	ORDER M153583
27	M153583	2	Nut	-
28	M133945	1	Washer	-
29	M128002	2	Drive Sprocket	Z=47
30	M128924	1	Pulley	-
31	M141893	2	Guide	-
32	M84309	2	Nut	-
33	M134466	1	Label	FREEDOM 42
34	03M7183	2	Bolt	M8 X 16
35	M141898	1	Plate	RH
36	03M7184	2	Bolt	M8 X 20
37	03M7216	4	Bolt	M8 X 50
38	24M7298	6	Washer	8.400 X 25 X 2 mm
39	03M7381	2	Bolt	-
40	M143838	1	Clip	-
41	AM144377	3	Spindle	-
42	AM148011	3	Spindle Kit	Not Illustrated INCLUDES JD7803

MOWER DRIVE BELT, SHEAVES, SPINDLES AND BLADES
