FLYWHEEL, IGNITION COIL AND STATOR (ENGINE MARKED CV460S-26516)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	MIU13200	1	Screw	(SUB FOR M93481)
2	24H1909	1	Washer	13/32" X 1-3/8" X 1/4"
3	M120418	1	Screen	GRASS
4	M135298	4	Spacer	(W/SPACER)
5	M148569	3	Retainer	-
6	M146625	1	Fan	-
7	26H74	1	Shaft Key	3/16" X 5/8"
8	AM133160	1	Flywheel	-
9	AM33426	1	Stator	15 AMP
10	M96822	2	Screw	-
11	57M8658	1	Connector	SUB FOR M133018
12	M78543	1	Spark Plug	-
13	M45700	2	Clip	-
14	M93483	2	Screw	-
15	19M7373	2	Cap Screw	M5 X 20
16	M133019	1	Module	-
17	M133022	1	Wiring Lead	483 MM (19") 18 GAUGE, (WHITE)
18	AM132807	1	Switch	IGNITION (4 POSITION)
18	AM133597	1	Rotary Switch	-
19	GY20680	1	Key	(SUB FOR AM131946)
20	24M7087	2	Washer	5.500 X 10 X 1 mm
21	M133021	1	Wiring Lead	102 MM (4") 14 GAUGE, (BLACK)
21	AM129698	1	Jumper	175 MM (6.9") 12 GAUGE, (BLACK) (SUB FOR M132380)
22	MIA11665	1	Regulator	SUB FOR AM106358
23	12H297	2	Lock Washer	1/4"
24	M95148	2	Washer	-
25	M47486	1	Elec. Connector Terminal	-
26	M132375	2	Screw	-
27	AM129698	1	Jumper	VOLTAGE REGULATOR GROUND

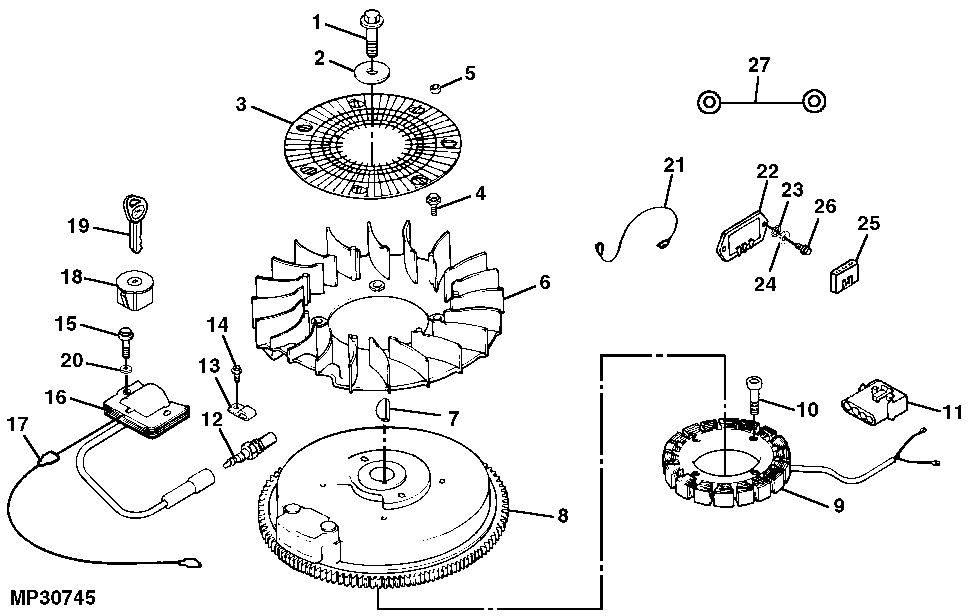

FLYWHEEL, IGNITION COIL AND STATOR (ENGINE MARKED CV460S-26516)
