Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Solution System Harness and Electronic Control Unit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AA21292	2	Quick Lock Pin	-
2	AH224250	1	Electronic Control Unit	-
3	AKK20234	2	Turn Signal Lamp	Amber
4	AKK20498	1	Tie Rod Assembly	-
5	AKK27476	1	Display Module	-
6	AN205832	1	Elec. Connector Terminal	Positive
7	AN205833	1	Elec. Connector Terminal	Negative
8	AN206264	1	Floodlamp	-
9	AXE14246	1	Sensor	Rotation
10	A4365R	1	O-Ring	-
11	H226340	5	Tie Band	-
12	KK30858	1	Linkage	-
13	KK31294	1	Cover	-
14	N308053	1	Bracket	-
15	N309632	1	Strap	-
16	N318722	1	Snap Ring	-
17	N318933	2	Lock Nut	-
18	PH85239480	1	Electronic Control Unit	-
19	P48347	2	O-Ring	-
20	R100686	1	Support	-
21	T372741	6	Clamp	-
22	T389883	6	Clamp	-
23	T397760	8	Clamp	-
24	WZ2022001	2	Lock Nut	-
25	WZ2105204	2	Washer	-
26	03M7238	11	Bolt	M10 X 35
27	14M7721	8	Lock Nut	M6
28	14M7722	10	Lock Nut	M8
29	14M7723	32	Lock Nut	M10
30	19M10325	8	Cap Screw	M8 X 16
31	19M9370	7	Screw	M10 X 30
32	19M9831	4	Screw	M6 X 16
33	19M9836	3	Screw	M8 X 20
34	19M9840	7	Screw	M8 X 40
35	19M9844	3	Screw	M10 X 20
36	19M9845	9	Screw	M10 X 25
37	19M9846	2	Screw	M10 X 40
38	21M7594	2	Screw	M4 X 50
39	24M7518	2	Washer	6.400 X 12 X 1.600 mm
40	KK75750	1	Tie Band	-
41	KK75747	1	Wiring Harness	Liquid Floater
42	KK75676	1	Bracket	-
43	KK75742	1	Bracket	-
44	KK75743	1	Bracket	-
45	KK75746	1	Plate	-
46	KK75671	2	Plate	-
47	KK75672	7	Plate	-
48	KK75673	7	Plate	-
49	N198631	1	Clamp	-
50	KK75751	2	Clamp	-
51	57M14235	4	Elec. Connector Accessory	-
52	KK75745	1	Safety Sign	Battery Disconnect Panel
53	KK75752	1	Channel	-
54	14M7297	8	Nut	M5
55	14M7744	4	Flange Nut	M6
56	19M7640	8	Cap Screw	M5 X 12
57	24M7611	1	Washer	6.400 X 12 X 1.600 mm
58	KK75753	1	Boot	-
59	KK75754	1	Boot	-
60	KK75744	1	Bracket	-
61	KK76714	1	Bracket	-
62	KK75748	1	Cover	-
63	KK75740	1	Label	Fill With Fresh Water
64	AKK30369	2	Stop Light	Red
65	AKK19519	1	Panel	-
66	AL157000	1	Knob	-
67	AN405716	2	Hinge	-
68	L200186	1	Ball Stud	-
69	R283703	1	Grommet	-
70	WZ1400020	2	O-Ring	-
71	WZ1841017	2	Tube Nut	-
72	WZ1841048	2	Fitting	-
73	KK52114	1	Label	Caution, Accumulator
74	AKK38453	1	Pressure Sensor	310 mbar
75	KK78485	1	Label	Pump Fill Pressure

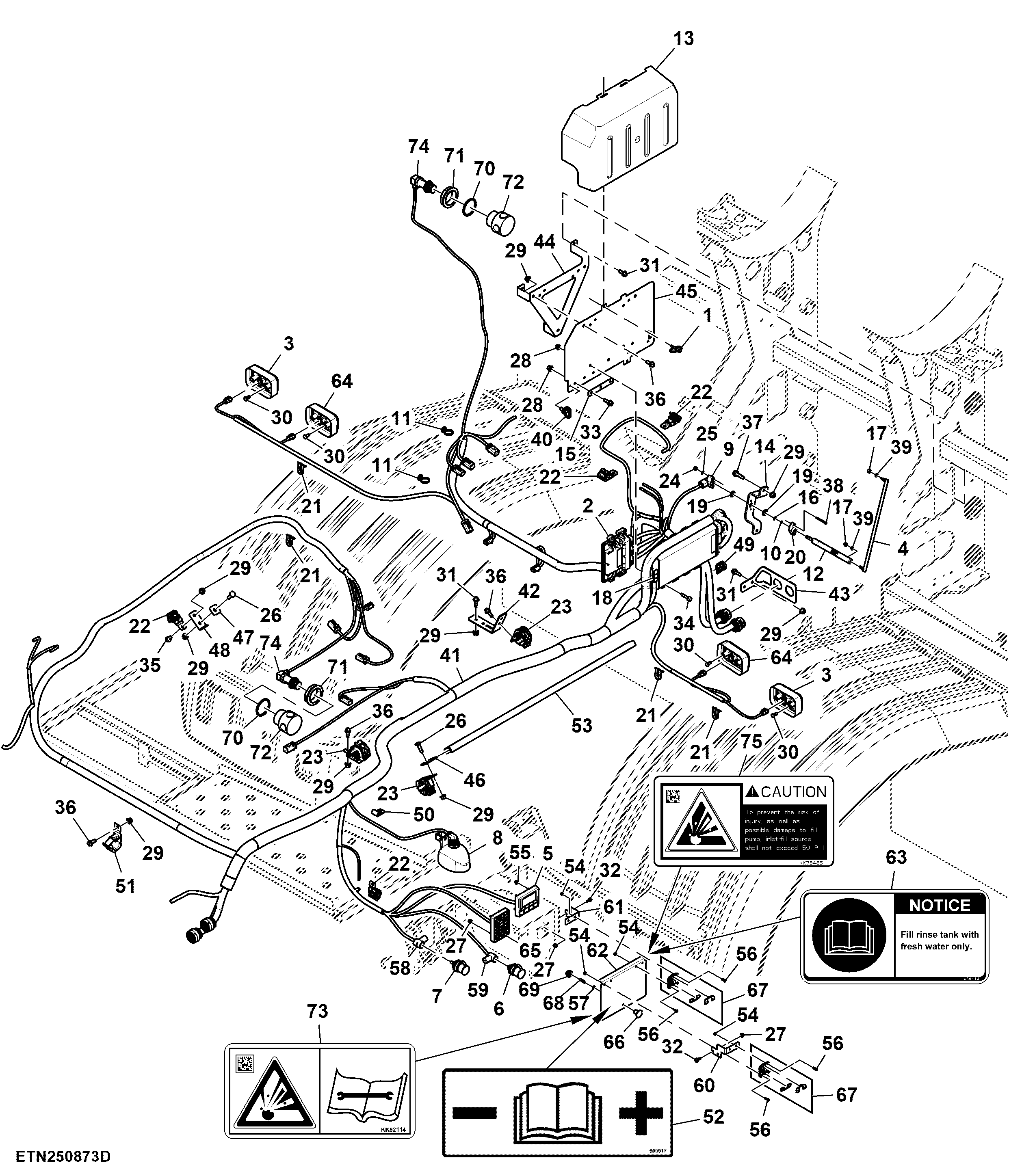

Solution System Harness and Electronic Control Unit

Нет текстового описания
