Открытый узел

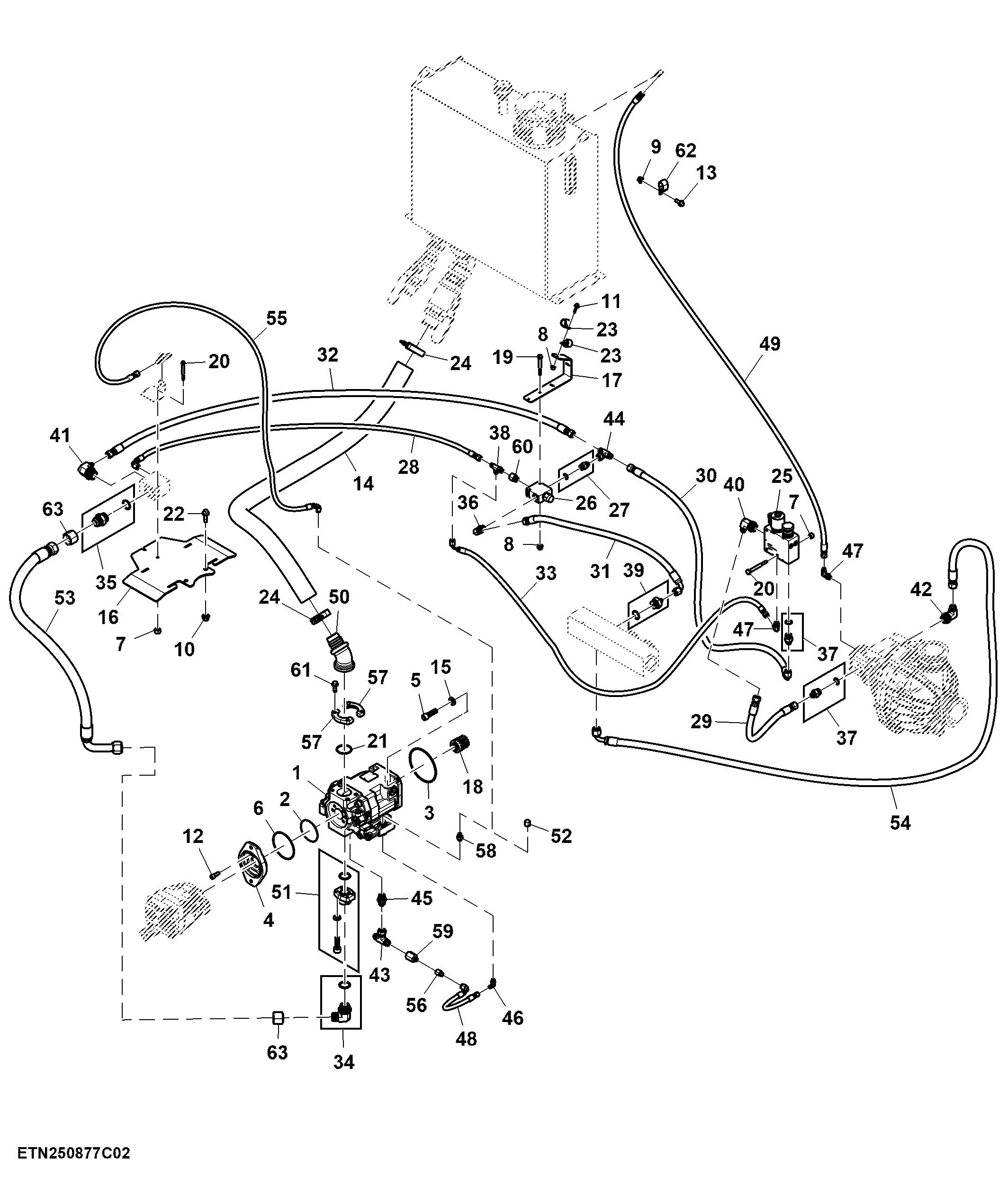

Primary Pump and Transfer Pump Hoses

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK18289	1	Hydraulic Pump	90 cc, Primary
2	E65288	1	O-Ring	-
3	F37030250	1	O-Ring	-
4	KK45936	1	Intermediate Housing	-
5	R526877	4	Cap Screw	-
6	T42302	1	O-Ring	-
7	14M7707	4	Lock Nut	M8
8	14M7721	3	Lock Nut	M6
9	14M7723	2	Lock Nut	M10
10	14M7724	2	Lock Nut	M12
11	19M9404	1	Screw	M6 X 20
12	19M9793	4	Socket Head Screw	M10 X 25
13	19M9845	2	Screw	M10 X 25
14	KK75339	1	Hose	LGTH = 61 in.
15	24M7623	4	Washer	13 X 24 X 2.500 mm
16	KK75675	1	Bracket	-
17	KK75677	1	Bracket	-
18	4028056	1	Splined Coupling	-
19	19M9981	2	Screw	M6 X 50
20	19M10057	4	Screw	M8 X 70
21	F1870R	1	O-Ring	-
22	19M9984	2	Screw	M12 X 35
23	H77358	2	Clip	-
24	AN209544	2	Hose Clamp	-
25	AKK41027	1	Elec-Hyd Proportional Valve	-
26	AKK41020	1	Hydr./Pilot Control Valve	Side Fill
27	5HG611125	1	Adapter Fitting	-
28	AKK44657	1	Hydraulic Hose	LGTH = 64 in.
29	AKK40928	1	Hydraulic Hose	LGTH = 23 in.
30	AKK40912	1	Hydraulic Hose	LGTH = 76 in.
31	AKK40905	1	Hydraulic Hose	LGTH = 27 in.
32	AKK44656	1	Hydraulic Hose	LGTH = 64 in.
33	AKK40919	1	Hydraulic Hose	LGTH = 72 in.
34	5HG618178	1	Elbow Fitting	-
35	5HG618186	1	Adapter Fitting	-
36	5HG618241	1	Elbow Fitting	-
37	5HG618327	2	Adapter Fitting	-
38	5HG618444	1	Tee Fitting	-
39	5HG618470	1	Adapter Fitting	-
40	5HG618474	1	Adapter Fitting	-
41	5HG618475	1	Adapter Fitting	-
42	5HG618535	1	Elbow Fitting	-
43	5HG618593	1	Tee Fitting	-
44	5HG618643	1	Tee Fitting	-
45	5HG618911	1	Adapter Fitting	-
46	5HG618934	1	Elbow Fitting	-
47	5HG618119	2	Elbow Fitting	-
48	AKK40875	1	Hydraulic Hose	LGTH = 13 in.
49	AKK40900	1	Hydraulic Hose	LGTH = 108 in.
50	5HG619212	1	Fitting	-
51	KK76196	1	Flange Kit	-
52	R31147	1	Fitting	-
53	AKK40856	1	Hydraulic Hose	LGTH = 49 in.
54	AKK40932	1	Hydraulic Hose	LGTH = 48 in.
55	AKK40866	1	Hydraulic Hose	LGTH = 56 in.
56	5HG619298	1	Hydraulic Restrictor	-
57	R37023	2	Flange Fitting	-
58	5HG618666	1	Adapter Fitting	-
59	5HG618557	1	Adapter Fitting	-
60	5HG618170	1	Fitting	-
61	KK54295	4	Screw	-
62	KK20435	2	Clamp	-
63	KK77199	2	Nut	-

Primary Pump and Transfer Pump Hoses

Нет текстового описания
