Hydraulic Reservoir and Fold Control Valve Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT360806	5	Hose Clamp	4 Way
2	T42302	1	O-Ring	-
3	03M7238	8	Bolt	M10 X 35
4	14M7707	2	Lock Nut	M8
5	14M7723	8	Lock Nut	M10
6	14M7724	2	Lock Nut	M12
7	19M9149	2	Cap Screw	M12 X 35
8	KK75813	1	Hydraulic Hose	LGTH = 67 in.
9	24M7544	2	Washer	13 X 25 X 3 mm
10	KK75667	1	Bracket	-
11	KK75671	2	Plate	-
12	KK75668	1	Bracket	-
13	KK75672	4	Plate	-
14	KK75673	4	Plate	-
15	H224073	3	Tie Band	Black
16	5HG470369	1	Hose Guard	Black
17	19M9840	2	Screw	M8 X 40
18	19M8039	1	Screw	M8 X 80
19	T78281	1	Fitting	-
20	19M9984	2	Screw	M12 X 35
21	AN209543	2	Hose Clamp	-
22	5HG606727	4	Repair Kit	-
22	5HG606726	1	Seal	-
22	5HG606720	4	O-Ring	-
22	AKK41028	1	Hydraulic Pump	38 cc
22	5HG606721	1	Snap Ring	-
23	T291958	1	Hydr. Quick Coupler Socket	-
24	AKK41063	1	Hydraulic Hose	LGTH = 100 in.
25	AKK41070	1	Hydraulic Hose	LGTH = 91 in.
26	AKK41064	1	Hydraulic Hose	LGTH = 24 in.
27	AKK41011	1	Hydraulic Hose	LGTH = 73 in.
28	AKK41012	1	Hydraulic Hose	LGTH = 55 in.
29	5HG618130	1	Tee Fitting	-
30	KK78406	1	Elbow Fitting	-
31	5HG618788	1	Adapter Fitting	-
32	5HG618938	1	Hose Fitting	-
33	5HG619215	1	Fitting	-
34	AKK41062	1	Hydraulic Hose	LGTH = 128 in.
35	KK75752	1	Channel	-
36	5HG618699	2	Adapter Fitting	-
37	5HG618099	1	Fitting	-
38	14M7722	1	Lock Nut	M8
39	5HG619022	1	Fitting	-
40	5HG618721	1	Fitting	-
41	H114901	1	Plate	-
42	H114898	2	Clamp	-
43	R36927	1	Fitting	-
44	KK78644	2	Fitting	-

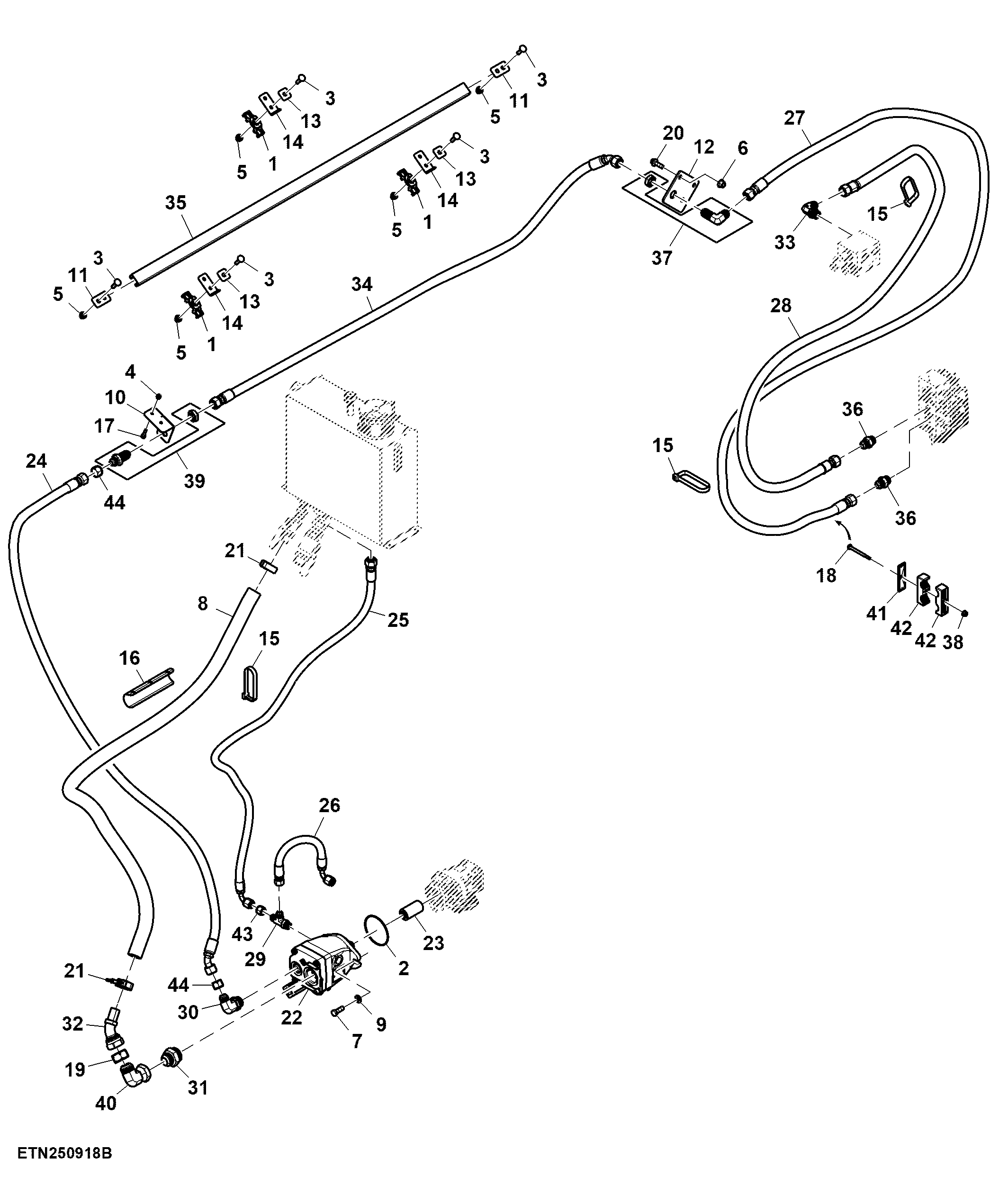

Hydraulic Reservoir and Fold Control Valve Hoses

Нет текстового описания
