Boom Center Frame and Lift Arm Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AHC20633	2	Hydraulic Cylinder	-
2	AHC19591	2	Hydraulic Cylinder	-
3	AHC12506	2	Hydraulic Cylinder	-
4	AHC13004	1	Hydraulic Cylinder	-
5	AKK10218	1	Valve	Boom Fold Control
6	AN404055	2	Hydraulic Hose	LGTH = 52 in., Inner Fold Cylinder Retract
7	AN404054	2	Hydraulic Hose	LGTH = 34 in., Inner Fold Cylinder Extend
8	38H5332	2	Elbow Fitting	-
9	N207508	2	Orifice	-
10	AKK14880	2	Hydraulic Hose	LGTH = 97 in., Tilt Cylinder Extend
11	38H5304	4	Adapter Fitting	-
12	38H5287	2	Elbow Fitting	-
13	38H5319	6	Adapter Fitting	-
14	AN404052	2	Hydraulic Hose	LGTH = 83 in., Tilt Cylinder Extend
15	KK23096	6	Pin	-
16	24M7634	6	Washer	41 X 58 X 6 mm
17	14M7722	6	Lock Nut	M8
18	19M9842	6	Screw	M8 X 60
19	AKK38137	1	Hydraulic Hose	LGTH = 47 in.
20	38H5316	1	Elbow Fitting	-
21	38H5029	1	Tee Fitting	-
22	AN404031	1	Control Valve	-
23	19M9977	2	Screw	M8 X 80
24	14M7649	2	Flange Nut	M8
25	AKK20170	1	Hydraulic Hose	LGTH = 38 in.
26	38H5553	1	Tee Fitting	-
27	AKK22493	1	Hydraulic Hose	LGTH = 46 in.
28	N275799	2	Orifice	-
29	T77613	27	O-Ring	-
30	AN404062	1	Hydraulic Hose	LGTH = 25 in.
31	38H5318	9	Adapter Fitting	-
32	38H5320	2	Adapter Fitting	-
33	38H5333	3	Elbow Fitting	-
34	64M1004	1	Drain Plug	-
35	64M1002	2	Fitting Plug	-
36	38H5342	1	Tee Fitting	-
37	38H5297	1	Tee Fitting	-
38	38H1415	1	Fitting	-
39	AKK20953	1	Hydraulic Hose	LGTH = 18 in.
40	AN404061	1	Hydraulic Hose	LGTH = 15 in.
41	R213663	4	Clamp	-
42	38H5344	1	Elbow Fitting	-
43	38H5024	1	Elbow Fitting	-
44	38H1697	1	Elbow Fitting	-
45	AKK20157	1	Hydraulic Accumulator	-
45	AT196760	1	Valve Kit	Gas Valve
45	T26209	1	Ring	-
46	KK16231	2	Hose Guard	-
47	51M7042	15	O-Ring	13.300 X 2.200 mm
48	51M7041	4	O-Ring	11.300 X 2.200 mm
49	T77857	9	O-Ring	-
50	51M7043	4	O-Ring	15.300 X 2.200 mm
51	T77858	3	O-Ring	-
52	51M7040	11	O-Ring	9.300 X 2.200 mm
53	T77932	1	O-Ring	-
54	R26375	1	O-Ring	-
55	AN404408	1	Check Valve	-
55	AT224862	1	Seal Kit	-
56	AN405624	1	Pressure Relief Valve	-
56	AT224864	1	Seal Kit	-
57	AN405631	1	Valve	-
57	AH209116	1	Seal Kit	-
58	AN405630	1	Check Valve	-
58	AN207184	1	Seal Kit	-
59	AN405627	1	Hydr./Pilot Control Valve	-
59	AT186614	1	Seal Kit	-
60	AN405628	1	Control Valve	-
60	AN207451	1	Seal Kit	-

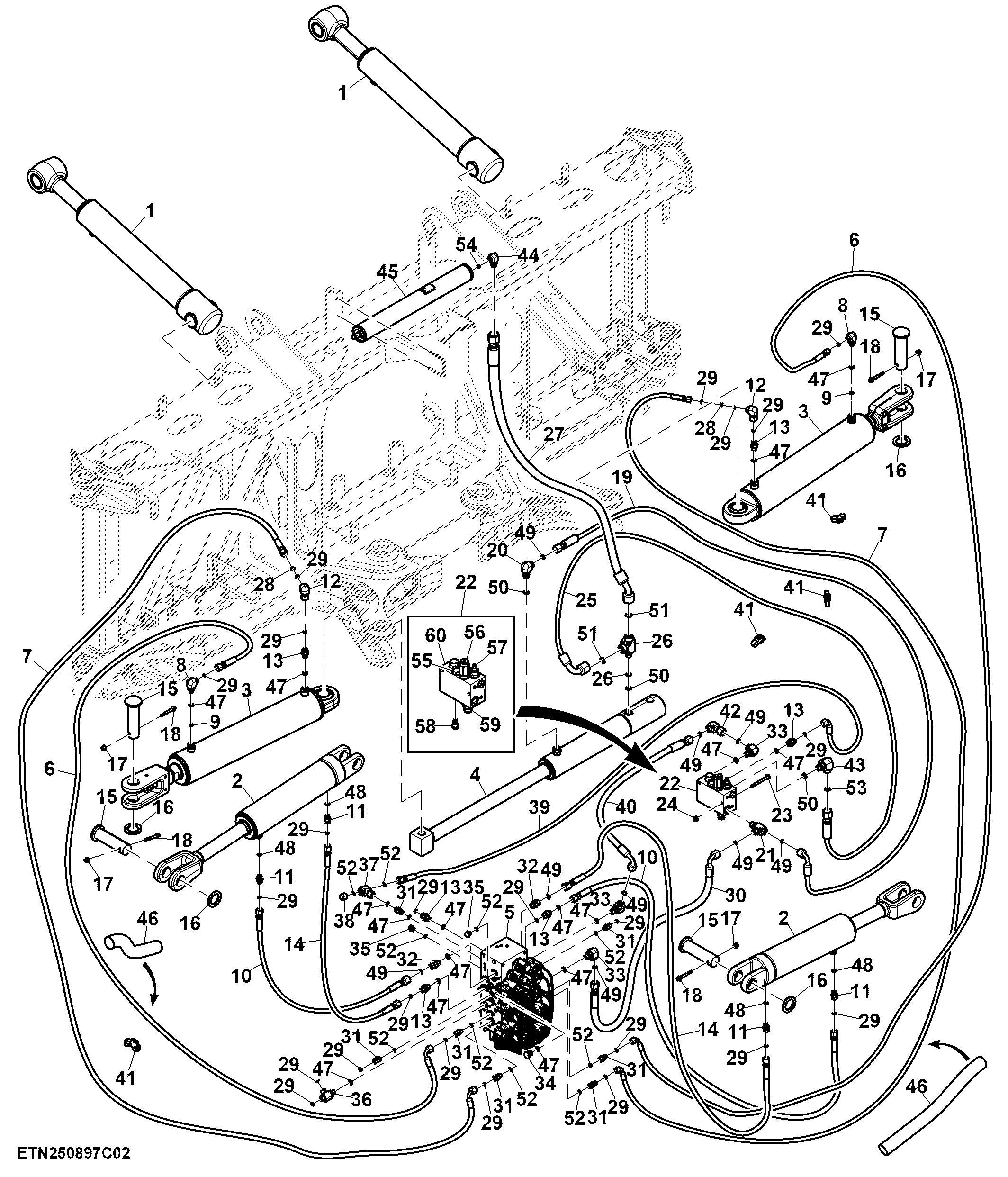

Boom Center Frame and Lift Arm Hydraulics
