Air Filter And Fuel Pump (Engine Marked 445577-0110-E1)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	MIU11515	1	Air Filter	USE WITH MIA12234; A/C CARTRIDGE
1	MIU11286	1	Air Filter	(B) A/C CARTRIDGE
2	LG273638S	1	Filter	(B) PRE-CLEANER
3	MIU10607	1	Elbow Fitting	NLA; ORDER MIA12003
3	MIA12003	1	Elbow Fitting	INCLUDES LG691001 AND MIU13117
4	LG691001	1	Gasket	Air Cleaner
5	LG691917	2	Gasket	SUB FOR MIU10608
6	M153270	4	Screw	-
8	LG690958	4	Nut	-
9	LG690951	4	Stud	-
10	M144624	2	Screw	Choke Bracket
11	MIU11985	1	Gasket	SUB FOR MIU11067
12	MIU11289	1	Bracket	-
13	LG691108	2	Screw	8 X 1/2
14	LG808656	1	Fuel Pump	-
15	MIU11290	1	Hose	Vacuum
15	MIU14398	1	Hose	SUB FOR MIU12502
16	MIA10629	1	Fuel Line	-
17	MIU11187	2	Hose Clamp	-
18	15H638	1	Pipe Plug	1/8"
19	MIU13117	1	Cap	-
20	LG690950	2	Gasket	Intake
21	MIU12169	1	Elec. Connector Terminal	-
22	MIU13135	1	Gasket	-
23	LG690949	2	Gasket	Intake
24	MIU11633	1	Hose Fitting	-
..	M144622	1	Link	-
..	GY21056	1	Air Filter	AIR FILTER (INCLUDES PARTS MARKED (B))
7A	AM132057	1	Intake Manifold	NLA; ORDER MIA12034; INCLUDES M144622
7A	MIA12494	1	Intake Manifold	ORDER MIA12034; INCLUDES LG691001 AND MIU13117
7B	MIA12034	1	Intake Manifold	INCLUDES LG691001 AND MIU13117

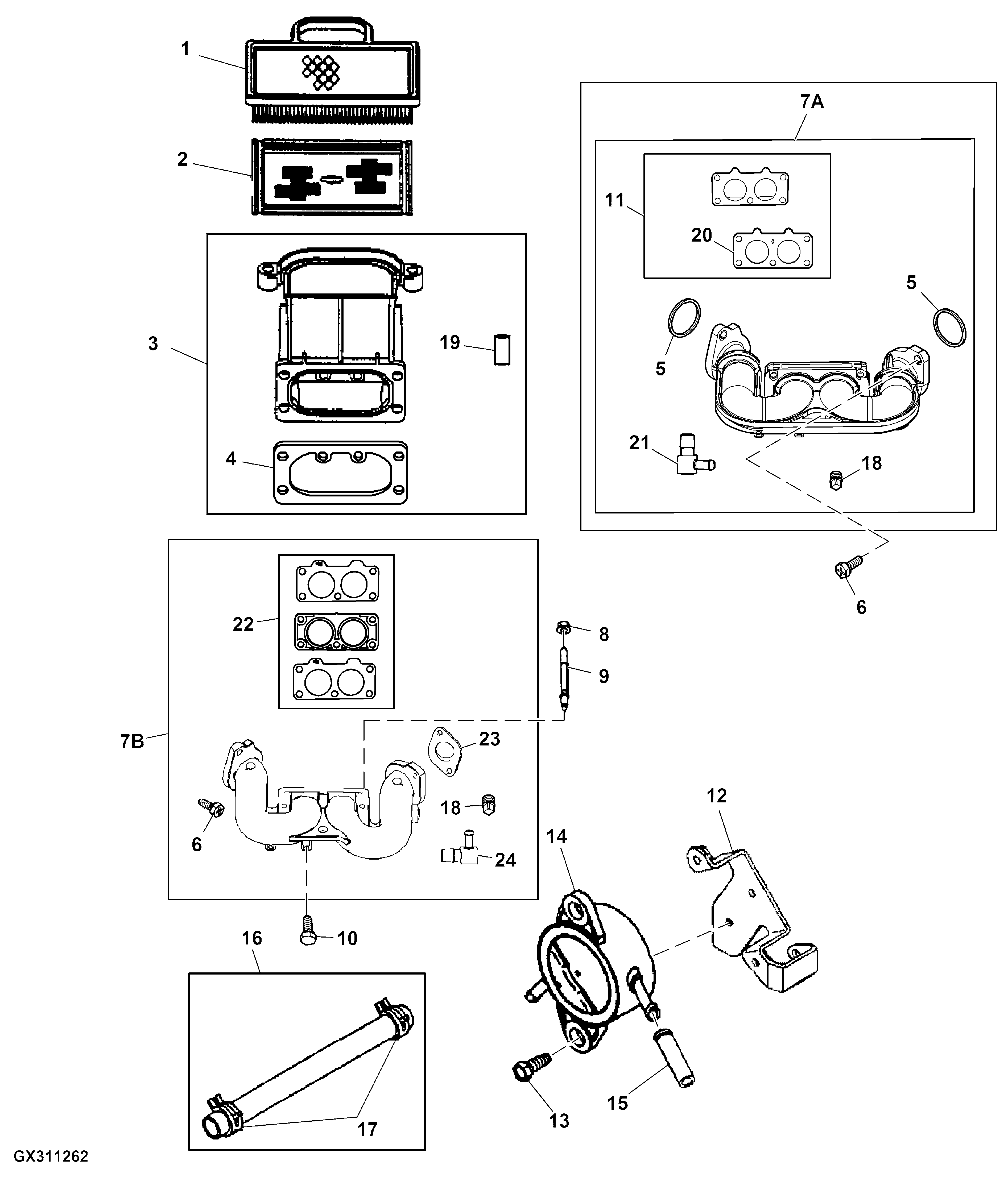

Air Filter And Fuel Pump (Engine Marked 445577-0110-E1)
