Air Filter And Fuel Pump (ENGINE MARKED 406777-0139-E1, 407777-0131-E1)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(B) A/C Cartridge
2	-	1	Part 2	(B) Pre-Cleaner
3	LG691011	1	Adapter Fitting	USE WITH AM133843
3	MIU10607	1	Elbow Fitting	NLA; ORDER MIA12003; USE WITH AM135291
3	MIA12003	1	Elbow Fitting	INCLUDES LG691001 AND MIU13117
4	LG691001	1	Gasket	Air Cleaner
5	MIU10608	2	O-Ring	NLA; ORDER LG691917; USE WITH AM135291
5	LG691917	2	Gasket	USE WITH AM133843
6	M144621	4	Screw	NLA; ORDER M153270
6	M153270	1	Screw	-
8	LG690958	4	Nut	-
9	LG690951	4	Stud	-
10	M144624	1	Screw	Choke Bracket
11	LG690950	2	Gasket	Intake
12	LG691039	1	Bracket	-
13	37H73	3	Screw	8 X 1/2
15	M144617	1	Hose	Vacuum
16	MIA10629	1	Fuel Line	SUB FOR LG691050
17	T13254	2	Clamp	-
17	MIU11187	4	Hose Clamp	USE WITH MIA10629
18	MIU13117	1	Cap	-
19	MIU11985	1	Gasket	-
20	MIU12169	1	Elec. Connector Terminal	-
21	15H638	1	Pipe Plug	1/8"
22	MIU13135	1	Gasket	-
23	LG690949	2	Gasket	Intake
24	MIU11633	1	Hose Fitting	-
..	GY20575	1	Air Filter	(INCLUDES PARTS MARKED (B))
7A	AM132057	1	Intake Manifold	NLA; ORDER MIA12494; INCLUDES M144622 Link AND 15638 Pipe Plug
7A	MIA12494	1	Intake Manifold	ORDER MIA12034; INCLUDES LG691001 AND MIU13117
7B	MIA12034	1	Intake Manifold	INCLUDES LG691001 AND MIU13117
14A	LG808656	1	Fuel Pump	ORDER UC18908
14B	UC18349	1	Fuel Pump	SUB FOR UC18908

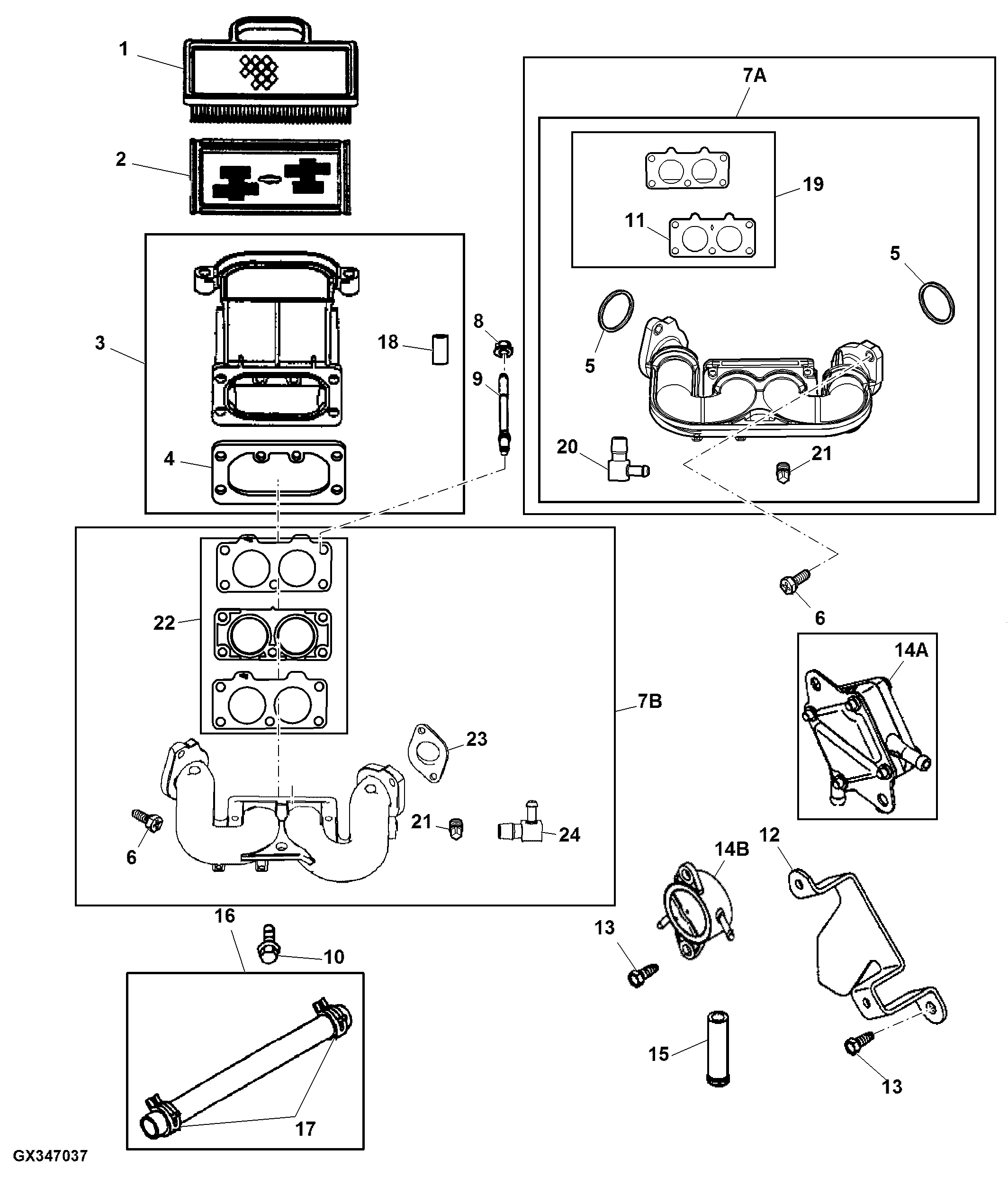

Air Filter And Fuel Pump (ENGINE MARKED 406777-0139-E1, 407777-0131-E1)
