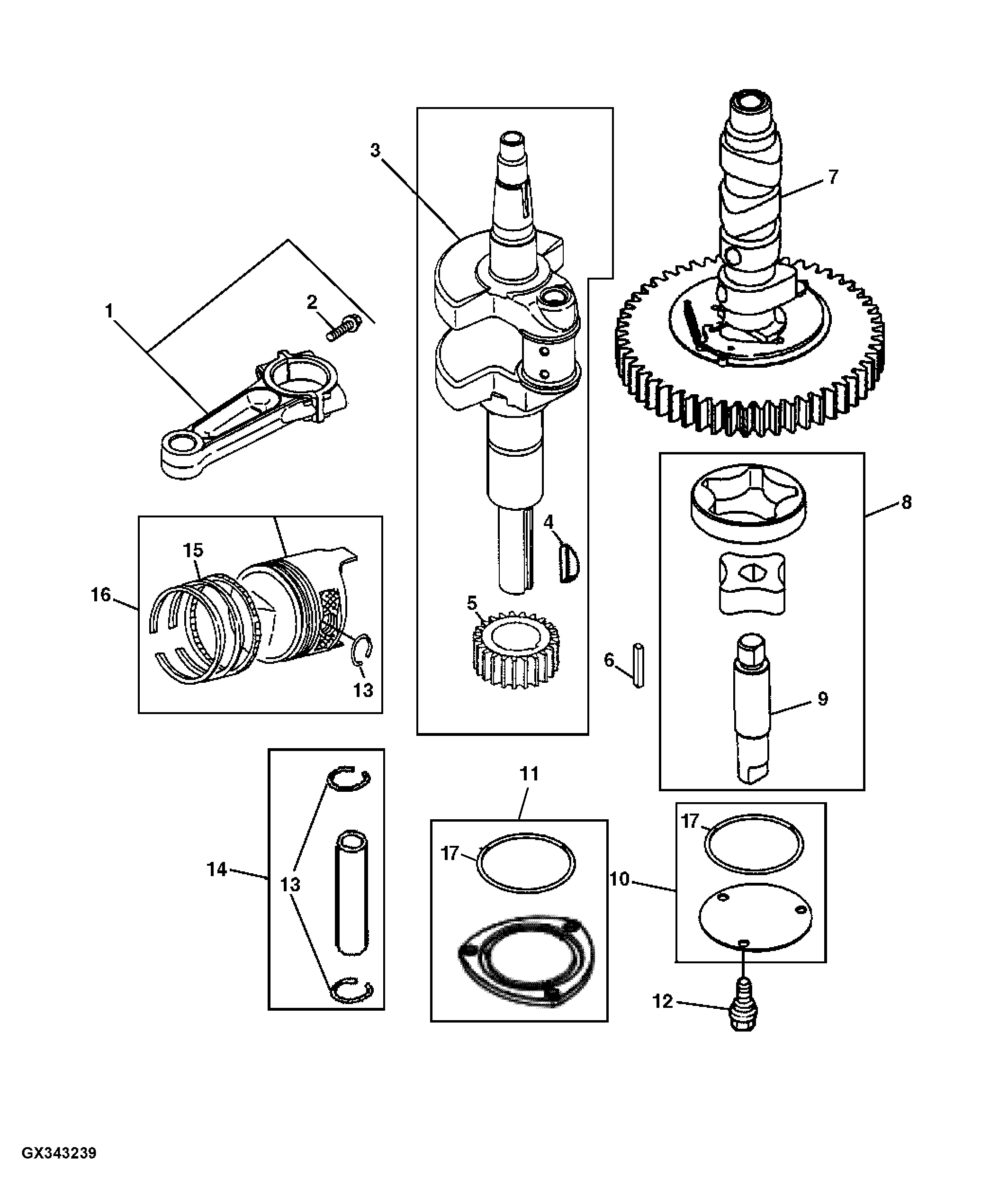

Crank Shaft, Connection Rod and Piston

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	MIA11459	2	Connecting Rod	(SUB FOR LG499583 OR AM135101)
2	LG690976	2	Screw	-
3	AM135083	1	Crankshaft	(ENGINE MARKED 406577-0139-E1) (SUB MIA11457)
3	MIA10376	1	Crankshaft	(ENGINE MARKED 406777-0139-E1) (SUB FOR LG691046)
3	MIA11457	1	Crankshaft	INCLUDES LG690980; USE WITH MIA10361 OR AUC10156
4	26H67	1	Shaft Key	1/8" X 3/8", (SUB FOR 26H4)
5	LG690980	1	Gear	TIMING
6	LG222698S	1	Shaft Key	FLYWHEEL
7	M151221	1	Camshaft	CAM
7	MIA11789	1	Camshaft	USE WITH AUC10156; SUB FORMIA10916
8	MIA11172	1	Oil Pump	(SUB FOR LG499054)
8	MIU12143	1	Oil Pump	(USE WITH MIA11584)
9	LG691042	1	Shaft	NLA; ORDER MIA11172
10	LG499613	1	Cover	-
10	MIA11464	1	Cover	(USE WITH MIA11584)
11	MIA11464	1	Cover	USE WITH AUC10156
12	M151228	3	Screw	-
12	MIU12142	3	Screw	USE WITH MIU12143 OR AUC10156
13	LG690975	2	Lock	-
14	LG690229	2	Piston Pin	-
14	MIA11458	1	Piston Pin	USE WITH AUC10156
15	LG499604	1	Piston Ring Kit	STD
15	LG499606	1	Piston Ring Kit	.50 MM (.020") OS, (SUB MIA11102)
15	MIU12013	1	Piston Ring Kit	STD, (USE WITH MIA11346) (SUB FOR MIU12180)
15	MIU11282	1	Piston Ring Kit	SUB FOR MIU11453; STD
16	LG499588	2	Piston Replacement Kit	STD; NLA; ORDER MIA11346
16	LG499590	2	Piston Replacement Kit	.50 MM (.020") OS, NLA; ORDER MIA11102
16	MIA10996	2	Piston	(USE WITH MIA10361)
16	MIA11346	2	Piston	-
17	LG690589	1	Seal	-
17	MIU12153	1	Seal	USE WITH MIA11584 OR AUC10156
..	MIA11102	2	Piston	.50 MM (.020") OS, (INCLUDES PISTON, RINGS AND LOCK)

Crank Shaft, Connection Rod and Piston
