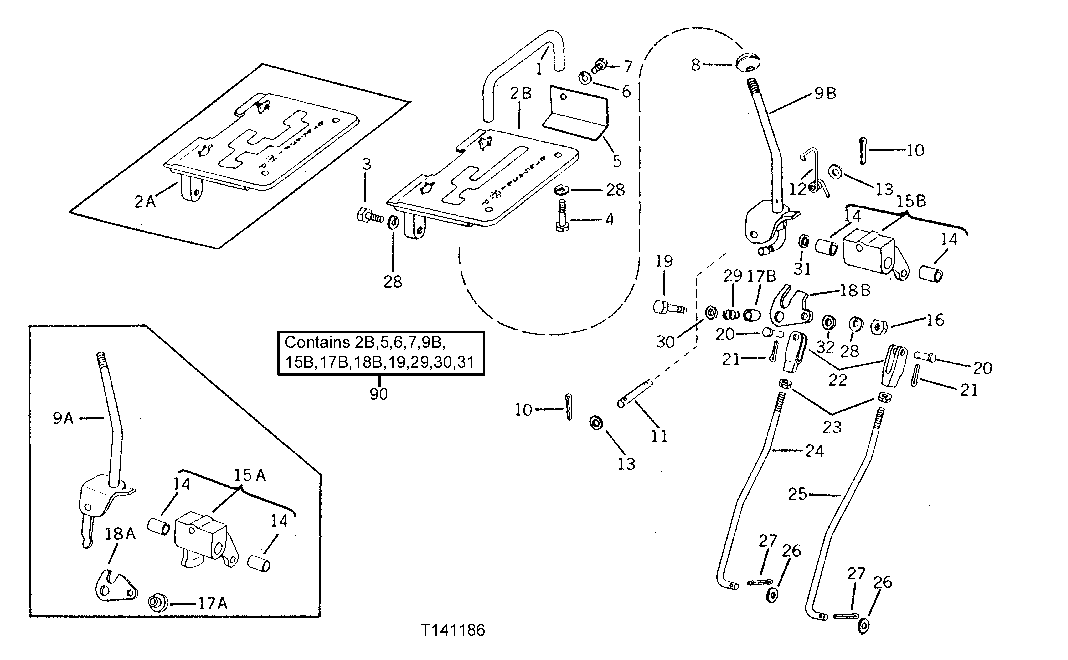

TRANSMISSION SHIFTER CONTROL LEVER AND LINKAGE [01F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42904	1	PIN FASTENER	( R42904 NO LONGER AVAILABLE)
3	19H2676	2	Cap Screw	3/8" X 1"
4	19H3483	2	Cap Screw	3/8" X 1-1/8"
5	-	1	Part 6	(A) ( R46470 USE IF AVAILABLE)
6	12H303	1	Lock Washer	(A) 5/16"
7	19H1813	1	CAP SCREW	(A) 5/16" X 5/8"
8	F2861R	1	KNOB	-
10	11M7079	2	Cotter Pin	2.500 X 12 MM
11	R45832	1	PIN FASTENER	(SUB FOR R41141)
12	R45651	1	SPRING	-
13	24M7055	2	Washer	8.400 X 16 X 1.600 MM
14	R653R	2	BUSHING	-
16	14H812	1	NUT	3/8"
19	19H3217	1	Cap Screw	(A) 3/8" X 1-3/4"
19	19H2552	1	CAP SCREW	3/8" X 1-1/8"
20	R65563	2	Pin Fastener	(SUB FOR C1067R)
20	C1067R	2	PIN FASTENER	(USE IF AVAILABLE)
21	11M7059	2	Cotter Pin	3.200 X 20 MM
22	M80373	2	Yoke	(SUB FOR L324T)
23	14H774	2	Nut	3/8"
24	R42860	1	ROD	REVERSE VALVE OPERATING
25	R42861	1	ROD	CONTROL VALVE OPERATING
26	24H1302	2	Washer	13/32" X 11/16" X 0.035"
27	11M7081	2	Cotter Pin	2.500 X 20 MM
28	12H304	7	Lock Washer	3/8"
29	R44313	1	Compression Spring	(A)
30	24H1309	1	Washer	(A) 13/32" X 1-1/16" X 0.120"
31	T40440	1	BUSHING	(A)
32	24H1658	1	Washer	21/32" X 1" X 0.060"
90	AT39058	1	KIT	KIT, TRANSMISSION CONTROL LEVER (INCLUDES MARKED (A) ON THIS PAGE)
2A	R46469	1	QUADRANT	(SUB FOR R42902)
2B	-	1	Part 3	(A) ( T40438 USE IF AVAILABLE)
9A	-	1	Part 10	( AR45151 - NO LONGER AVAILABLE) (SUB AT39058)
9B	AT39057	1	LEVER	(A)
15A	AR45152	2	PIVOT	(MARKED R42916)
15B	AR50119	1	PIVOT	(A)
17A	R41134	1	BUSHING	-
17B	N52528	1	Bushing	(A) (SUB FOR T24380)
18A	R41133	1	FULCRUM	-
18B	R47409	1	FULCRUM	(A)
