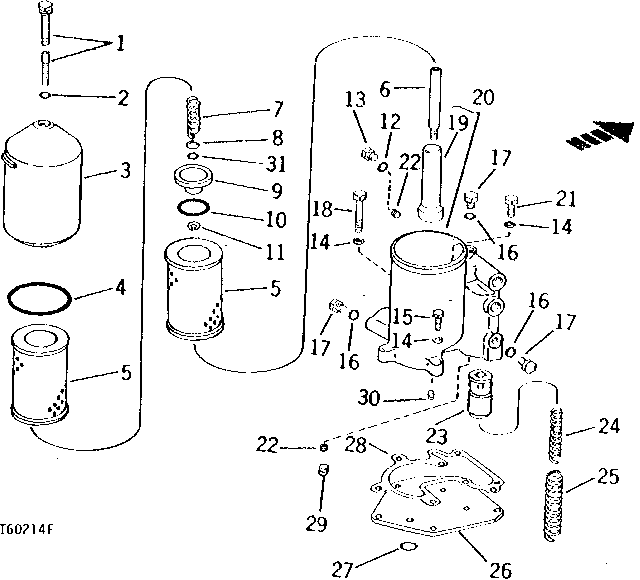

TRANSMISSION OIL FILTER AND ACCUMULATOR (SERIAL NO. 30892- ) [01F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R82731	1	SCREW	(SUB FOR R52753)
2	R394R	1	O-Ring	-
3	R63093	1	COVER	(SUB FOR R51654, THIS APPLICATION)
4	R34733	1	WASHER	-
5	AR75603	2	FILTER ELEMENT	(SUB FOR AT34670 AND AR75601)
6	R52752	1	EXTENSION	-
7	R66064	1	SPRING	(SUB FOR H819R, THIS APPLICATION)
8	24H1227	1	Washer	17/32" X 13/16" X 0.060"
9	R28593	1	RETAINER	(SUB R65892 AND F2741R) (USE WITH R394R ROUND CROSS-SECTION O-RING
9	R65892	1	RETAINER	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
10	R28594	1	WASHER	(NOT REQUIRED WHEN AR75601 HAS BEEN INSTALLED)
11	R32507	1	Snap Ring	-
12	R26286	1	O-Ring	-
13	R27094	1	Drain Plug	-
14	12H304	7	Lock Washer	3/8"
15	19H1765	2	Cap Screw	3/8" X 1-3/4"
16	R26448	3	O-Ring	-
17	R27218	3	Fitting Plug	-
18	19H2732	1	Cap Screw	3/8" X 2-3/4"
19	R52750	1	TUBE	-
20	-	1	Part 21	(MARKED R52751) ( AR58169 USE IF AVAILABLE)
21	19H2284	4	Cap Screw	3/8" X 7/8"
22	R47448	2	ORIFICE	-
23	R33525	2	PISTON	-
24	R44896	1	SPRING	-
25	R44897	1	SPRING	-
26	R44894	1	PLATE	( R44894 NO LONGER AVAILABLE)
27	R40273	1	WASHER	(USE IF AVAILABLE)
27	A4723R	1	Washer	(SUB FOR R40273)
28	R44895	1	GASKET	-
29	15H571	2	PIPE PLUG	3/8"
30	15H558	2	Pipe Plug	1/8"
31	R394R	1	O-Ring	(USE WITH R28593 RETAINER)
31	F2741R	1	Packing	(USE WITH R65892 RETAINER)

TRANSMISSION OIL FILTER AND ACCUMULATOR (SERIAL NO. 30892- ) [01F09]
