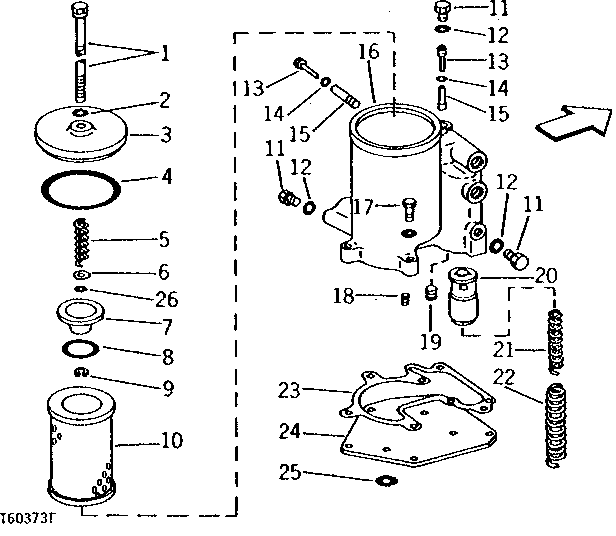

TRANSMISSION OIL FILTER AND ACCUMULATOR (SERIAL NO. -30891) [01F06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R82731	1	SCREW	(SUB FOR R54753)
2	R394R	1	O-Ring	-
3	R42921	1	COVER	( R42921 NO LONGER AVAILABLE)
4	R34733	1	WASHER	-
5	R66064	1	SPRING	(SUB FOR H819R, THIS APPLICATION)
6	24H1227	1	Washer	17/32" X 13/16" X 0.060"
7	R28593	1	RETAINER	(SUB R65892 AND F2741R) (USE WITH R394R ROUND CROSS-SECTION O-RING)
7	R65892	1	RETAINER	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
8	R28594	1	WASHER	(NOT REQUIRED WHEN AR75601 HAS BEEN INSTALLED)
9	R32507	1	Snap Ring	-
10	AR75603	1	FILTER ELEMENT	(SUB FOR AT34670 AND AR75601)
11	R27218	3	Fitting Plug	-
12	R26448	3	O-Ring	-
13	R34028	2	Bolt	-
14	R10093	2	O-Ring	-
15	R45573	2	ORIFICE	(DOES NOT INCLUDE BOLT AND O-RING)
15	-	2	Part 16	(SUB FOR R45573) (WHEN AR47611 IS NO LONGER AVAILABLE SUB R45573, R10093 AND R34028)
16	-	1	Part 18	( AR48526 - NO LONGER AVAILABLE) (MARKED R44091) (SUB AR58169 IF AVAILABLE, R82731, R52752, R51654, R27094, R26268 AND R47448) (SEE PAGE 40-23)
17	19H2284	4	Cap Screw	3/8" X 7/8"
17	19H1765	2	Cap Screw	3/8" X 1-3/4"
17	19H2732	4	Cap Screw	3/8" X 2-3/4"
17	12H304	7	Lock Washer	3/8"
18	15H558	2	Pipe Plug	1/8"
19	15H571	2	PIPE PLUG	3/8"
20	R33525	2	PISTON	-
21	R44896	2	SPRING	-
22	R44897	2	SPRING	-
23	R44895	1	GASKET	-
24	R44894	1	PLATE	( R44894 NO LONGER AVAILABLE)
25	R40273	1	WASHER	(USE IF AVAILABLE)
25	A4723R	1	Washer	(SUB FOR R40273)
26	R394R	1	O-Ring	(USE WITH R28593 RETAINER)
26	F2741R	1	Packing	(USE WITH R65892 RETAINER)

TRANSMISSION OIL FILTER AND ACCUMULATOR (SERIAL NO. -30891) [01F06]
