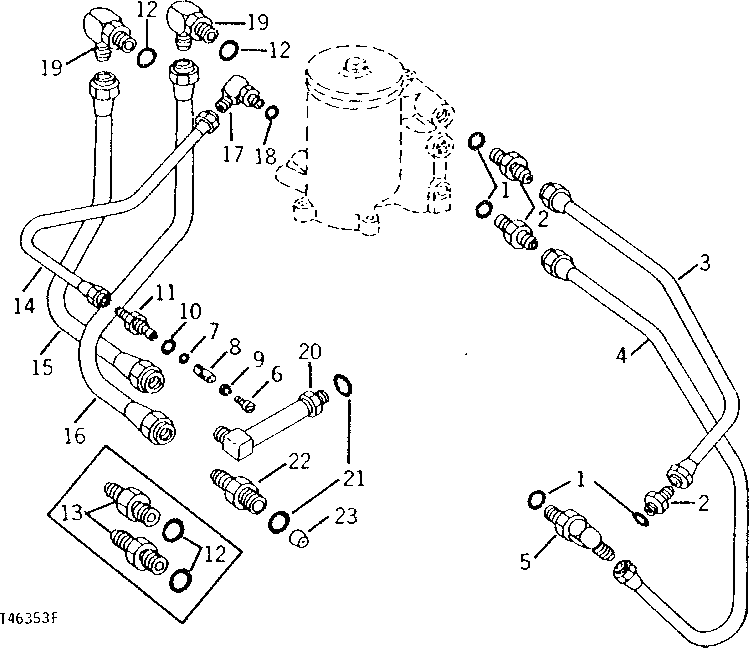

TRANSMISSION OIL FILTER AND ACCUMULATOR PIPES [01F07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26906	4	O-Ring	-
2	R27270	3	Fitting	-
3	AR46127	1	OIL LINE	-
4	-	1	Part 4	( AR46128, NO LONGER AVAILABLE)
5	M48579	1	ELBOW FITTING	(SUB FOR AR26724, THIS APPLICATION)
6	21H1021	1	SCREW	1/4" X 1/2"
7	R60038	1	Packing	(SUB FOR R26760)
8	R44962	1	FILTER	-
9	F3353R	1	O-Ring	-
10	R26375	1	O-Ring	-
11	R44958	1	FITTING	-
12	U12547	2	O-Ring	(SUB FOR (2) F3171R)
13	R27267	2	Fitting	-
14	AR46392	1	OIL LINE	-
15	AR45311	1	OIL LINE	(SUB AT37675 AND AT37677)
15	AT37677	1	LINE	CLUTCH HOUSING TO TRANSMISSION OIL FILTER INLET
16	AR45310	1	OIL LINE	(SUB AT37678 AND T38290 OR X12F5OX-S)
16	AT37678	1	OIL LINE	TRANSMISSION OIL FILTER TO CLUTCH HOUSING
17	RE56322	1	Tee Fitting	(SUB FOR AR26771 OR AT32333)
18	R26286	1	O-Ring	-
19	AT32331	2	Elbow Fitting	(SUB FOR AR26723)
20	AT37675	1	FITTING	-
21	U12547	2	O-Ring	(SUB FOR (2) F3171R)
22	X12F5OX-S	1	Adapter Fitting	(SUB FOR T38290)
23	R44648	1	Fitting	-

TRANSMISSION OIL FILTER AND ACCUMULATOR PIPES [01F07]
