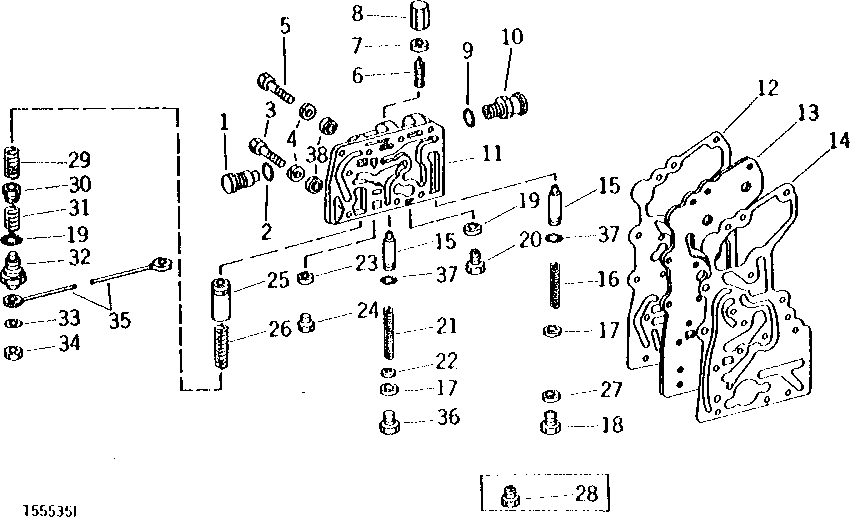

TRANSMISSION CLUTCH REGULATING VALVE HOUSING, VALVES AND GASKETS [01E02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42002	1	DRAIN PLUG	-
2	B2762R	1	O-Ring	-
3	19H2055	5	CAP SCREW	7/16" X 2-1/4"
4	12H293	7	Lock Washer	7/16"
5	19H3197	2	CAP SCREW	7/16" X 4"
6	R39587	1	SET SCREW	-
7	F2846R	1	WASHER	-
8	F2847R	1	NUT	-
9	U12547	1	O-Ring	(SUB FOR F3171R)
10	R44852	1	Fitting	-
11	R41405	1	HOUSING	-
12	R98926	1	GASKET	(SUB FOR R33178, R46816 AND R51573)
13	R33164	1	PLATE	-
14	R46815	1	GASKET	(SUB FOR R33177)
15	R33162	2	VALVE	(SUB R57559 AND R33259)
15	R57559	2	VALVE	-
16	R39808	1	SPRING	-
17	R1742R	2	WASHER	-
18	R52589	1	FITTING PLUG	(SUB FOR R33163)
19	R26375	2	O-Ring	-
20	R33138	2	Fitting	-
21	R56352	1	SPRING	(SUB FOR R41850, THIS APPLICATION) (ALSO ORDER R51577)
22	R33521	1	Shim	.762 MM (.030") (DO NOT USE R56351, THIS APPLICATION)
23	R26286	1	O-Ring	-
24	R27094	1	Drain Plug	-
25	R57560	1	VALVE	(SUB FOR R49198) (ALSO ORDER R33259)
26	R46517	1	SPRING	-
26	R42057	1	Spring	-
27	R33521	1	Shim	.762 MM (.030") (DO NOT USE R56351, THIS APPLICATION)
28	R33138	1	Fitting	-
29	R33173	1	Spring	-
30	R41148	1	GUIDE	-
31	T37506	1	Compression Spring	-
32	AR40795	1	TOUCH SWITCH	-
33	24H1283	1	Washer	7/32" X 1/2" X 0.049"
34	14H631	1	Nut	0.190"
35	AT37787	1	WIRING LEAD	-
36	R52589	1	FITTING PLUG	(USE WITH R41850)
36	R51577	1	FITTING PLUG	(USE WITH R56352)
37	R33259	2	O-Ring	-
38	24H1325	7	Washer	15/32" X 59/64" X 0.065"

TRANSMISSION CLUTCH REGULATING VALVE HOUSING, VALVES AND GASKETS [01E02]
