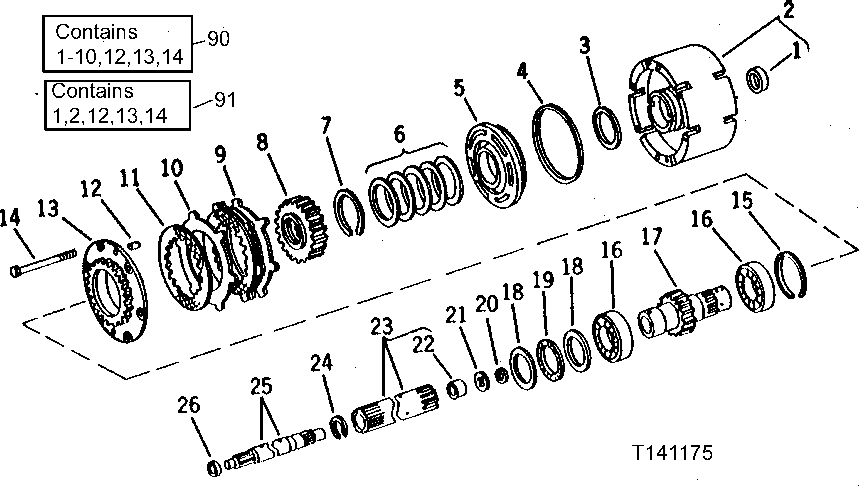

TRANSMISSION CLUTCH PACK (REAR) (SERIAL NO. 031544- ) [01E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R43367	1	BUSHING	(B) (C)
2	AR68356	1	DRUM	(B) (C) (MARKED R57089)
3	R43381	1	Washer	(A) (B)
4	R43380	1	WASHER	(A) (B)
5	R43304	1	PISTON	(A) (B)
6	R70027	5	Disk Spring	(A) (B)
7	R43383	1	Snap Ring	(A) (B)
8	R47125	1	SPLINED COUPLING	(A) (B)
9	R46418	1	CLUTCH PLATE	(A) (B)
10	R46419	3	CLUTCH PLATE	(A) (B)
11	RE28023	4	CLUTCH DISK	(SUB FOR AR43057, AR68352, AR87484 AND RE20133)
12	R30587	2	Dowel Pin	(B) (C)
13	RE61465	1	PLATE	(B) (C) (SUB FOR AR45156) (ALSO ORDER R121614)
14	19H2681	6	CAP SCREW	(B) (C) 5/16" X 5-7/8"
15	F2622R	1	SNAP RING	-
16	JD9320	2	Ball Bearing	-
17	R44036	1	SHAFT	-
18	JD9894	2	BEARING RACE	-
19	JD9886	1	Thrust Bearing	-
20	R43273	1	Snap Ring	-
21	R43374	1	THRUST WASHER	-
22	R43305	1	Bushing	-
23	AR46782	1	SHAFT	-
24	F2197R	1	Snap Ring	-
25	R57080	1	SHAFT	(20 TEETH) (SUB R81292)
25	R81292	1	DRIVE SHAFT	(20 TEETH) (SUB FOR R65782)
26	AT12889	1	Seal	-
90	RE23049	1	CLUTCH	(INCLUDES MARKED (B) ON THIS PAGE) (WITH PTO) (SUB FOR AR68347, AR90518, RE21467 AND RE12543)
91	-	1	Part 29	(WITHOUT PTO) (SUB FOR AR68348) ( AR89768 NO LONGER AVAILABLE THIS APPLICATION, SUB COMPONENTS) (INCLUDES MARKED (C) ON THIS PAGE)

TRANSMISSION CLUTCH PACK (REAR) (SERIAL NO. 031544- ) [01E06]
