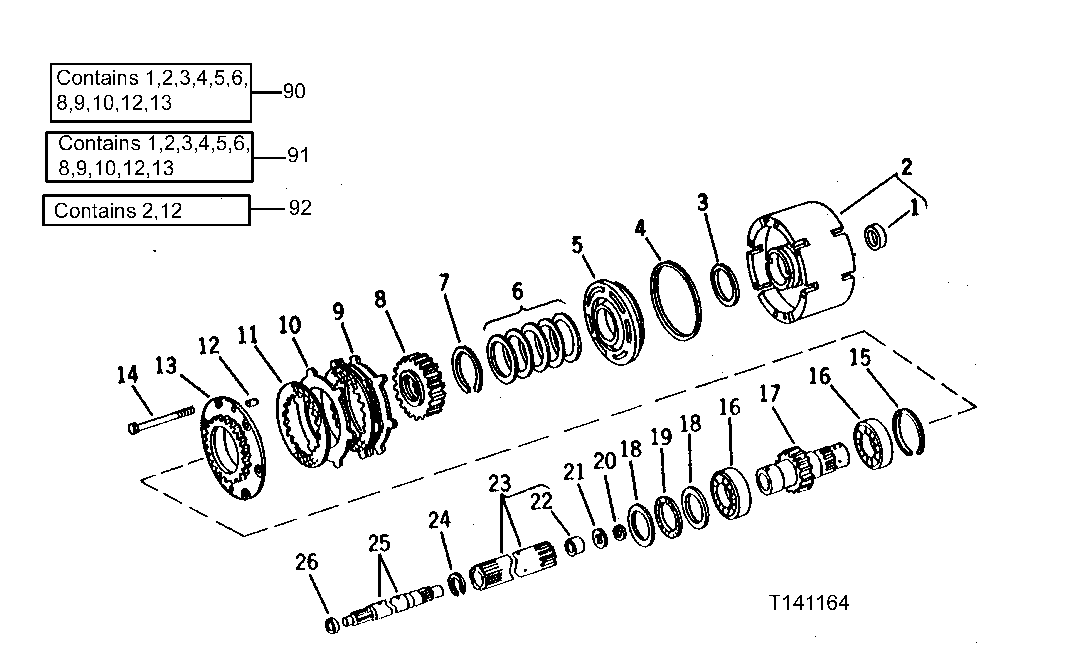

TRANSMISSION CLUTCH PACK (REAR) (SERIAL NO. -031543) [01D20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R43367	1	BUSHING	(A) (C)
2	-	1	Part 2	(A) (C) (D) ( AR46932, NO LONGER AVAILABLE) (MARKED R42936)
2	AR68356	1	DRUM	(A) (B) (C) (MARKED R57089) (SUB FOR AR49653 AND R47123)
3	R43381	1	Washer	(A) (B) (C)
4	R43380	1	WASHER	(A) (B) (C)
5	R43304	1	PISTON	(A) (B) (C)
6	R70027	5	Disk Spring	(A) (B) (C)
7	R43383	1	Snap Ring	(B)
8	R43030	1	HUB	(A) (C) ( R43030 NO LONGER AVAILABLE)
8	R47125	1	SPLINED COUPLING	(B)
9	R43209	1	CLUTCH PLATE	(A) (B) (C) (SUB R46418)
9	R46418	1	CLUTCH PLATE	(B)
10	R43210	3	PLATE	(A) (B) (C) (SUB R46419)
10	R46419	3	CLUTCH PLATE	(A) (B) (E)
11	AR43057	4	DISK	(SUB AR68352, CLUTCH DRIVE DISK, THIS APPLICATION) (SEE PAGE 35-15)
12	R30587	2	Dowel Pin	(A) (C) (D)
13	RE61465	1	PLATE	(A) (C) (SUB FOR AR45156) (ALSO ORDER R121614)
14	19H2681	6	CAP SCREW	5/16" X 5-7/8"
15	F2622R	1	SNAP RING	-
16	JD9320	2	Ball Bearing	-
17	R44036	1	SHAFT	-
18	JD9894	2	BEARING RACE	-
19	JD9886	1	Thrust Bearing	-
20	R43273	1	Snap Ring	-
21	R43374	1	THRUST WASHER	-
22	R43305	1	Bushing	-
23	AR46782	1	SHAFT	HIGH RANGE DRIVE
24	F2197R	1	Snap Ring	-
25	R44192	1	SHAFT	LOW RANGE DRIVE, (SUB R52230)
25	R52230	1	SHAFT	(LOW RANGE DRIVE) (20 TEETH) (SUB R57080 AND AR68344, REDUCTION GEAR SHAFT)
26	AT12889	1	Seal	-
90	AR46929	1	CLUTCH	(INCLUDES MARKED (A) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE) (SUB RE23049) (WITH PTO) SEE PAGES 35-14, 35-15 AD 35-16
91	AR56760	1	CLUTCH	(INCLUDES MARKED (C) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE) (SUB RE23049) AND 35-16 (WITH PTO) SEE PAGES 35-14, 35-15
92	AR56761	1	AR56761	(INCLUDES MARKED (D) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE) (SUB COMPONENTS OF AR89768) (WITHOUT PTO)

TRANSMISSION CLUTCH PACK (REAR) (SERIAL NO. -031543) [01D20]
