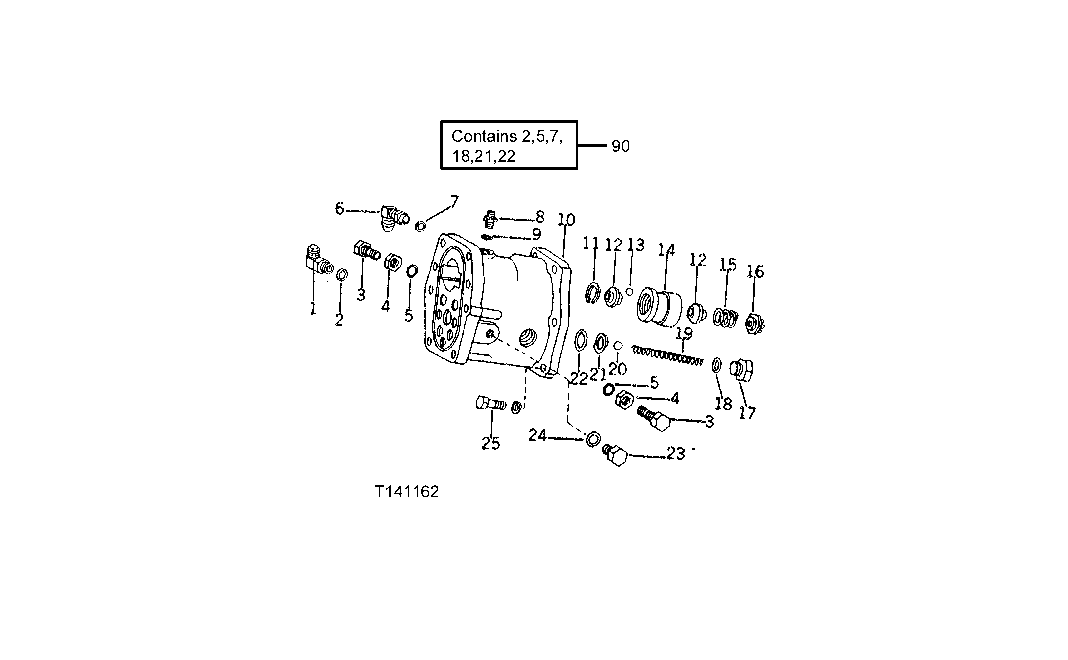

STEERING VALVE, OPERATING COLLAR AND HOUSING (SERIAL NO. -031516) [01G06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT35121	1	Elbow Fitting	(SUB FOR AR26725)
2	R26448	1	O-Ring	(A)
3	R40338	2	DRAIN PLUG	-
4	R27296	2	Nut	-
5	R26286	2	O-Ring	(A)
6	AR36552	1	Elbow Fitting	-
7	R26286	1	O-Ring	(A)
8	R27216	1	DRAIN PLUG	(NOT AS ILLUSTRATED)
9	R26287	1	O-Ring	-
10	AR43559	1	HOUSING	(MARKED R34119 OR R43721) (SUB AR43809)
10	AR43809	1	HOUSING	(MARKED R43962 OR R45811)
11	R26425	1	SNAP RING	-
12	R40595	2	BEARING RACE	-
13	R26552	13	Ball	-
14	R40757	1	BUSHING	-
15	R40596	1	SPRING	-
16	R40597	1	LOCK NUT	-
17	R39112	1	Fitting	-
18	R26375	1	O-Ring	(A)
19	R31278	1	SPRING	-
20	R42849	1	Ball	-
21	R30323	1	BACK-UP RING	(A)
22	R34404	1	O-Ring	(A) (SUB FOR T12860)
23	R27218	1	Fitting Plug	-
24	R26448	1	O-Ring	-
25	19H3483	4	Cap Screw	3/8" X 1-1/8"
25	19H3181	2	CAP SCREW	3/8" X 2"
25	24H1302	2	Washer	13/32" X 11/16" X 0.035"
25	14H812	2	NUT	3/8"
25	12H304	6	Lock Washer	3/8"
90	AR39585	1	KIT	OVERHAUL STEERING PISTON, CYLINDER AND VALVE (INCLUDES MARKED (A) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE)

STEERING VALVE, OPERATING COLLAR AND HOUSING (SERIAL NO. -031516) [01G06]
