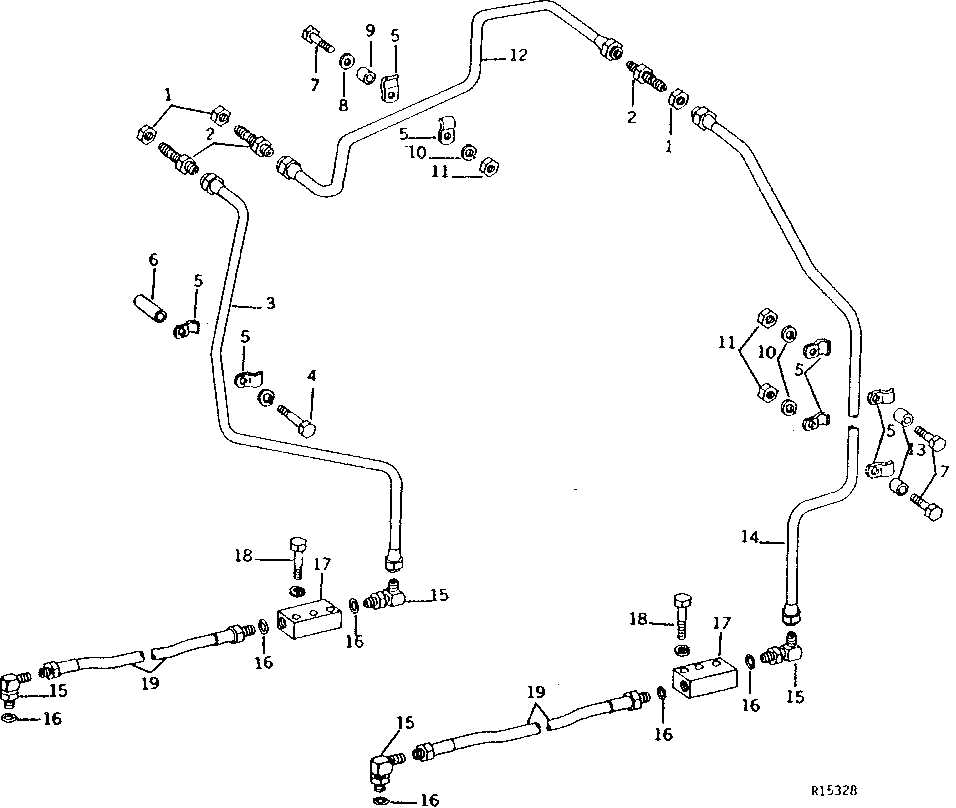

STEERING OIL PIPES-CONTROL SUPPORT TO STEERING CYLINDERS [01G08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26572	3	Nut	-
2	R27238	3	Fitting	-
3	AR46053	1	LINE	CONTROL SUPPORT TO L.H. STEERING CYLINDER
4	19H3031	1	Cap Screw	3/8" X 2-1/2", (TRACTORS EQUIPPED WITH SCRAPER BRAKE
4	12H304	1	Lock Washer	3/8"
5	R27720	8	CLAMP	-
6	28H1530	1	Bushing	3/8" X 1.81"
7	19H2633	3	Cap Screw	3/8" X 1-1/2"
8	24M7096	1	Washer	0.413" X 0.709" X 0.063"
9	28H1519	1	Washer	3/8" X .375"
10	12H304	3	Lock Washer	3/8"
11	14H812	3	NUT	3/8"
12	AR46052	1	LINE	CONTROL SUPPORT TO R.H. STEERING CYLINDER, UPPER
13	28H1697	2	Spacer	3/8" X .75"
14	AR35426	1	LINE	CONTROL SUPPORT TO R.H. STEERING CYLINDER, LOWER
15	AT35121	1	Elbow Fitting	(4 USED LESS OIL PAN GUARD) (2 USED WITH OIL PAN GUARD) (SUB FOR AR26725)
15	AT38033	1	Elbow Fitting	(2 USED WHEN OIL PAN GUARD HAS BEEN INSTALLED) (SUB FOR AR26722, THIS APPLICATION)
16	R26448	6	O-Ring	-
17	R32300	2	FITTING	-
18	19H1765	4	Cap Screw	3/8" X 1-3/4"
18	12H304	4	Lock Washer	3/8"
19	R36717	2	HYDRAULIC HOSE	364 MM LONG (1/4" X 13.6")

STEERING OIL PIPES-CONTROL SUPPORT TO STEERING CYLINDERS [01G08]

Нет текстового описания
