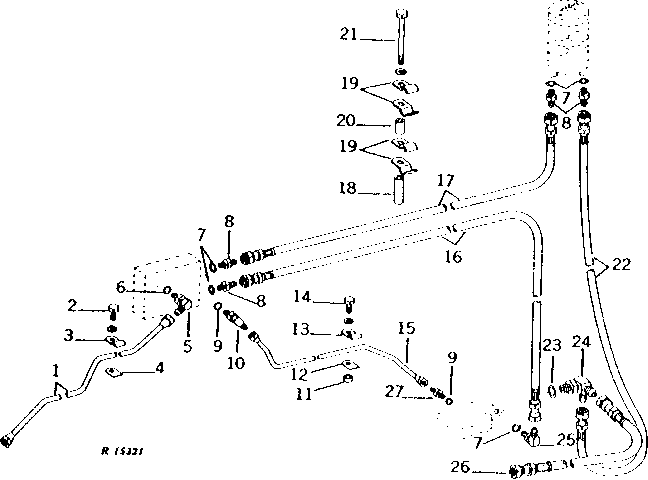

PRESSURE CONTROL AND BRAKE ACCUMULATOR LINES [01H06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR45673	1	OIL LINE	-
2	19H2021	2	Cap Screw	3/8" X 5/8"
2	12H304	4	Lock Washer	3/8"
3	R27590	2	CLAMP	-
4	R34819	2	PLATE	(NO LONGER AVAILABLE)
5	AT35121	1	Elbow Fitting	(SUB FOR AR26725)
6	R26448	1	O-Ring	-
7	R26286	5	O-Ring	-
8	R27272	4	Fitting	-
9	R26287	2	O-Ring	-
10	AT32335	1	ELBOW FITTING	(SUB FOR AR26746)
11	28H1862	1	Washer	3/8" X .219"
12	R27256	1	STRAP	-
13	R27528	1	CLAMP	-
14	12H304	1	Lock Washer	3/8"
14	19H1648	1	Cap Screw	3/8" X 3/4"
15	AR46791	1	LINE	PRESSURE CONTROL VALVE TO JUNCTION BOX
16	AR36561	1	HYDRAULIC HOSE	PRESSURE CONTROL VALVE TO JUNCTION BOX 914.4 MM LONG (1/4" X 36") (SUB FOR AR47299, THIS APPLICATION)
17	AR36561	1	HYDRAULIC HOSE	BRAKE ACCUMULATOR TO JUNCTION BOX 914.4 MM LONG (1/4" X 36")
18	28H1635	1	Spacer	3/8" X 2.125"
19	R35726	4	CLAMP	-
20	28H1495	1	Spacer	3/8" X 1.00"
21	19H1925	1	Cap Screw	3/8" X 4-1/4"
21	12H304	1	Lock Washer	3/8"
22	AR47295	1	HYDRAULIC HOSE - FABRICATE	PRESSURE CONTROL VALVE TO BRAKE ACCUMULATOR 571.5 MM LONG (1/4" X 22.5")
23	R26906	1	O-Ring	-
24	AR36247	1	FITTING	-
25	RE56322	1	Tee Fitting	(SUB FOR AR26771 OR AT32333)
26	AR36562	1	HYDRAULIC HOSE - FABRICATE	PRESSURE CONTROL VALVE TO HYDRAULIC PUMP, 584.2 MM LONG (1/2" X 23")
27	R27527	1	ADAPTER FITTING	-

PRESSURE CONTROL AND BRAKE ACCUMULATOR LINES [01H06]

Нет текстового описания
