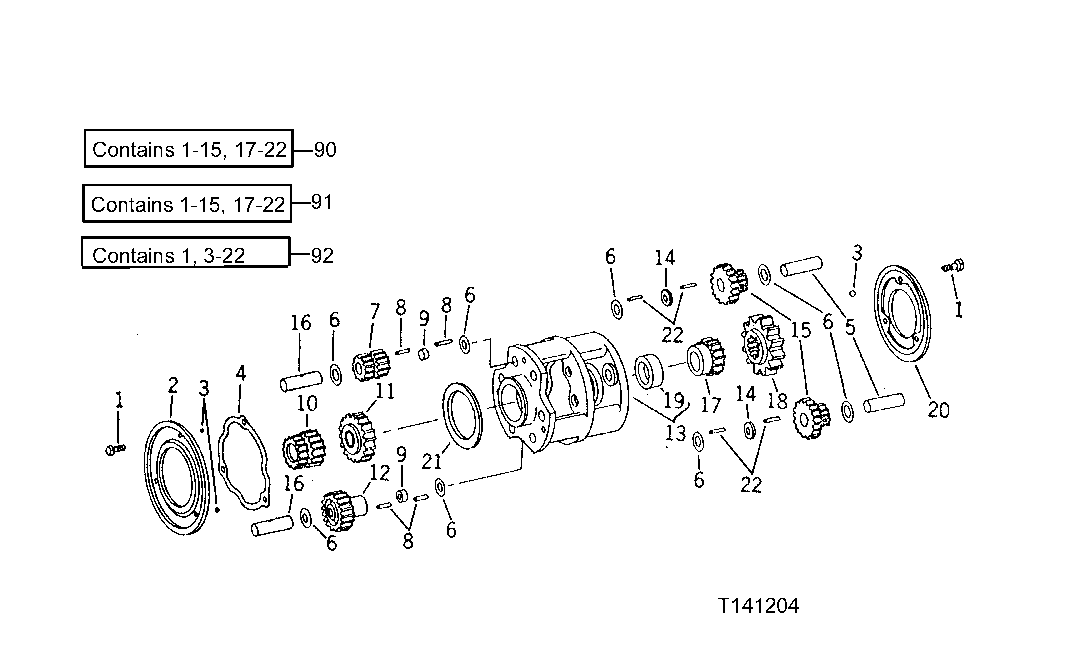

PLANETARY ASSEMBLY (SERIAL NO. 030892- ) [01E19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30165	6	Cap Screw	(C) (B) (D)
2	R43183	1	RETAINER	(C) (B)
3	H871R	9	Ball	(C) (B) (D)
4	R98928	1	GASKET	(C) (B) (D) (SUB FOR R51993 AND R68154)
5	R43217	3	SHAFT	(C) (B) (D)
6	R66197	18	Thrust Washer	(C) (B) (D) (SUB FOR R43216)
7	R66275	3	PINION	(C) (B) (D) (SUB FOR R52000)
8	R84261	240	Needle Roller	(C) (B) (D) (SUB FOR R52002 AND R66195)
9	R66145	6	WASHER	(C) (B) (D) (SUB FOR R43218)
10	R64510	1	PINION	(C) (B) (D) (SUB FOR R51997) (SUB RE22861 AND RE19415)
11	R51996	1	PLANET PINION	(C) (B) (D)
12	R66276	3	PINION	(C) (B) (D) (SUB FOR R52001)
13	AR56282	1	PLANET PINION CARRIER	(C) (B) (D) (MARKED R51992)
14	R66144	3	WASHER	(C) (B) (D) (SUB FOR R52003)
15	R66274	3	PINION	(C) (B) (D) (SUB FOR R51999)
16	R65053	6	PIN	(D) (SUB FOR R43217, THIS APPLICATION) (SUB FOR R62533)
17	AR56281	1	PINION	(C) (B) (D)
18	AR47132	1	PINION	(C) (B) (D) (SUB AR76116, THIS APPLICATION)
18	AR76116	1	PINION	(D) (MARKED R62068) FIRST PLANET SUN WITH WASHER
19	R48789	1	BUSHING	(C) (B) (D) (SUB FOR R45213)
20	R43182	1	RETAINER	(C) (B) (D)
21	R45271	1	WASHER	(C) (B) (D)
22	R66196	120	NEEDLE ROLLER	(C) (B) (D) (SUB FOR R43420)
90	AR56756	1	PLANETARY ASSEMBLY	PLANETARY ASSEMBLY, (INCLUDES MARKED (C) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE) (SUB AR94401)
91	AR94401	1	PLANETARY ASSEMBLY	PLANETARY ASSEMBLY, (INCLUDES MARKED (B) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE) (SUB FOR AR68342, AR85465, AR85315 AND AR89717) (ALSO ORDER AR92829 SHAFT)
92	AR71330	1	PLANETARY ASSEMBLY	(INCLUDES MARKED (D) ON THIS PAGE) PLANETARY ASSEMBLY

PLANETARY ASSEMBLY (SERIAL NO. 030892- ) [01E19]
