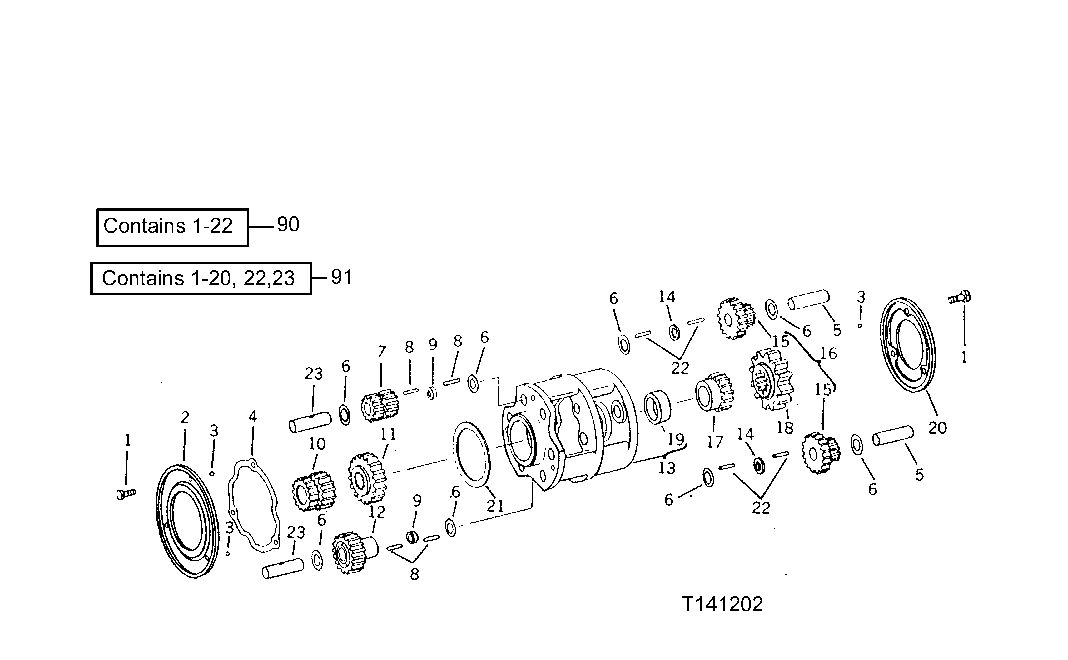

PLANETARY ASSEMBLY (SERIAL NO. -030891) [01E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30165	6	Cap Screw	(A) (B)
2	R43183	1	RETAINER	(A) (B)
3	H871R	9	Ball	(A) (B)
4	R98928	1	GASKET	(A) (B) (SUB FOR R43372, R51993 AND R68154)
5	R43217	3	SHAFT	(A) (B)
6	R66197	18	Thrust Washer	(A) (B) (SUB FOR R43216)
7	R43047	3	PINION	(A) (B)
8	R66196	240	NEEDLE ROLLER	(A) (B) (SUB FOR R43420)
9	R66143	6	WASHER	(A) (B) (SUB FOR R43215)
10	R43049	1	PINION	(A) (B)
11	R43046	1	PLANET PINION	(A) (B)
12	R43048	3	PINION	(A) (B)
13	AR52230	1	PLANET PINION CARRIER	(A) (B) (MARKED R45212)
13	AR47147	1	PLANET PINION CARRIER	(MARKED R45212) (SUB AR52230)
14	R66145	3	WASHER	(A) (B) (SUB FOR R43218)
15	R43032	3	PINION	(A) (B) (NO LONGER AVAILABLE)
16	R43032	3	PINION	(A) (B) (SUB FOR AR43586)
17	AR47148	1	PINION	(A) (B)
18	AR47132	1	PINION	(A) (B) (SUB AR76116, THIS APPLICATION)
19	R48789	1	BUSHING	(A) (B) (SUB FOR R45213)
20	R43182	1	RETAINER	(A) (B)
21	R45271	1	WASHER	(A)
22	R66196	120	NEEDLE ROLLER	(A) (B) (SUB FOR R43420)
23	R65053	6	PIN	(B) (SUB FOR R43217, THIS APPLICATION) (SUB FOR R62533)
90	AR46789	1	TRANSMISSION	PLANETARY ASSEMBLY, (INCLUDES MARKED (A) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE) (SUB AR94401)
91	AR71330	1	PLANETARY ASSEMBLY	PLANETARY ASSEMBLY, (INCLUDES MARKED (B) ON THIS PAGE) (ALSO ORDER R51994, R51998 AND R66032)
