Открытый узел

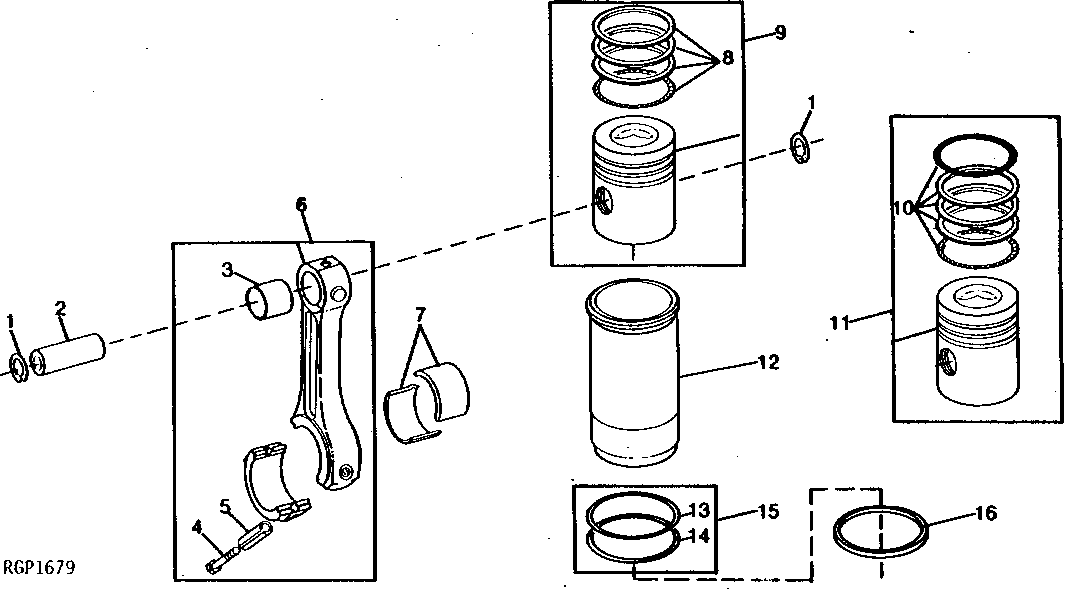

PISTONS, RINGS, CONNECTING ROD AND LINERS (6531D) [01B14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	D2824R	12	SNAP RING	-
2	R35053	6	PISTON PIN	STANDARD
2	R36413	6	BUSHING	.003" OVERSIZE (MARKED YELLOW)
2	R36414	6	PISTON PIN	.005" OVERSIZE (MARKED RED)
3	R36328	6	BUSHING	-
4	R66453	12	Cap Screw	(SUB FOR R35049 OR R48316)
5	R48317	12	Sleeve	(USE WITH AR59420) (MARKED R53286)
6	SE500084	6	CONNECTING ROD REMAN	(REMANUFACTURED)
6	AR86987	6	CONNECTING ROD	(MARKED R53286, R58881 OR R66927) (SUB FOR AR59420 OR AR70911) (SUB SE500084)
6	AR36666	6	CONNECTING ROD	(MARKED R35048, R40238 OR R58881) (SUB AR86987) (SUB FOR AR35012)
7	AR53020	1	BEARING	STANDARD (PKG. OF (2) R49385) (SUB FOR AR35661)
7	AR57207	1	BEARING	.002" UNDERSIZE, (PKG. OF (2) R52541) (SUB FOR AR35191)
7	AR57208	1	BEARING	.010" UNDERSIZE, (PKG. OF (2) R52542) (SUB FOR AR45221)
7	AR57209	1	BEARING	.020" UNDERSIZE, (PKG. OF (2) R52543) (SUB FOR AR35193)
7	AR57210	1	BEARING	.030" UNDERSIZE, (PKG. OF (2) R52544) (SUB FOR AR35195)
8	AR41295	6	PISTON RING KIT	(USE WITH AR41294, AR61897 OR R44506)
9	AR44505	6	PISTON	(MARKED R36801, R40627, R40951 OR AR44506) (SUB FOR AR36145 OR AR36872)
9	RE16549	6	PISTON	(MARKED RE16548)
9	AR41293	6	PISTON	(MARKED AR41294) (SUB RE16549)
9	AR61896	6	PISTON	(MARKED AR61897) (SUB RE16549)
9	AR41293	6	PISTON	(MARKED AR41294) (SUB RE16549)
10	AR36210	6	PISTON RING	(USE WITH R40339) (JD760)
11	AR36836	6	PISTON	(MARKED R40339) (SUB RE16549) (JD760)
12	R42366	6	CYLINDER LINER	(ALSO ORDER AR55951) (SUB FOR R40232) (USE WITH R47510)
12	R42366	6	CYLINDER LINER	(ALSO ORDER AR55950) (USE WITH R40270, R42370 OR R45300)
13	R40233	6	WASHER	(USE WITH R40270, R45300 OR R47510)
14	-	6	Part 27	(SUB AR55950)
15	AR55950	6	PACKING	(USE WITH (1) O-RING GROOVE IN BLOCK) (JD760, JD760A) (JD700A) (USE WITH R45300, R40270 OR R42370)
15	AR55951	6	PACKING	(3 PC SET) (USE W/(2) O-RING GROOVES IN BLOCK) (SUB FOR AR51957) (JD760A, JD700A)
16	AR35842	1	SHIM	.10 MM (.004") (JD760)
16	AR36353	1	SHIM	.38 MM (.015") (JD760)
16	AR35843	1	SHIM	.72 MM (.030") (JD760)

PISTONS, RINGS, CONNECTING ROD AND LINERS (6531D) [01B14]

Нет текстового описания
