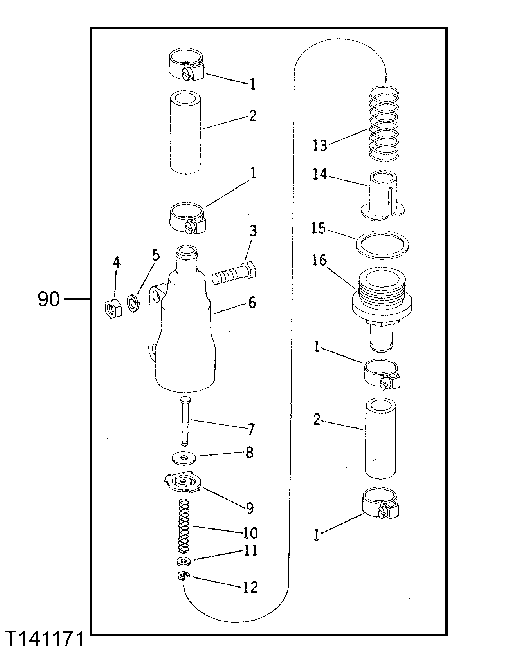

HYDRAULIC OIL COOLER BYPASS VALVE (SERIAL NO. 30397- ) [01H09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR21839	4	Clamp	(A)
2	-	2	Part 2	(A) (MAKE FROM R57300 BULK MATERIAL, CUT TO LENGHT) (SUB FOR R40074)
3	19H3483	2	Cap Screw	(A) 3/8" X 1-1/8"
4	14H812	2	NUT	(A) 3/8"
5	12H304	2	Lock Washer	(A) 3/8"
6	AR31547	1	VALVE	(MARKED R31931) (SUB FOR AT20483, MARKED R31931)
7	-	1	Part 7	(A) ( R31939 NO LONGER AVAILABLE)
8	R31933	1	WASHER	(A)
9	-	1	Part 9	(A) ( R31932 NO LONGER AVAILABLE)
10	-	1	Part 10	(A) ( H837R NO LONGER AVAILABLE)
11	24H1283	1	Washer	(A) 7/32" X 1/2" X 0.049"
12	R31935	1	Snap Ring	(A)
13	-	1	Part 13	(A) ( R31934 NO LONGER AVAILABLE)
14	-	1	Part 14	(A) ( R31936 NO LONGER AVAILABLE)
15	R31378	1	O-Ring	(A)
16	-	1	Part 16	(A) ( R31937 NO LONGER AVAILABLE)
90	AT34691	1	OIL COOLER	HYDRAULIC OIL COOLER REPAIR (USE ON TRACTORS BEFORE SERIAL NO. 30396) PAGES LISTED IN FOOTNOTE)

HYDRAULIC OIL COOLER BYPASS VALVE (SERIAL NO. 30397- ) [01H09]
