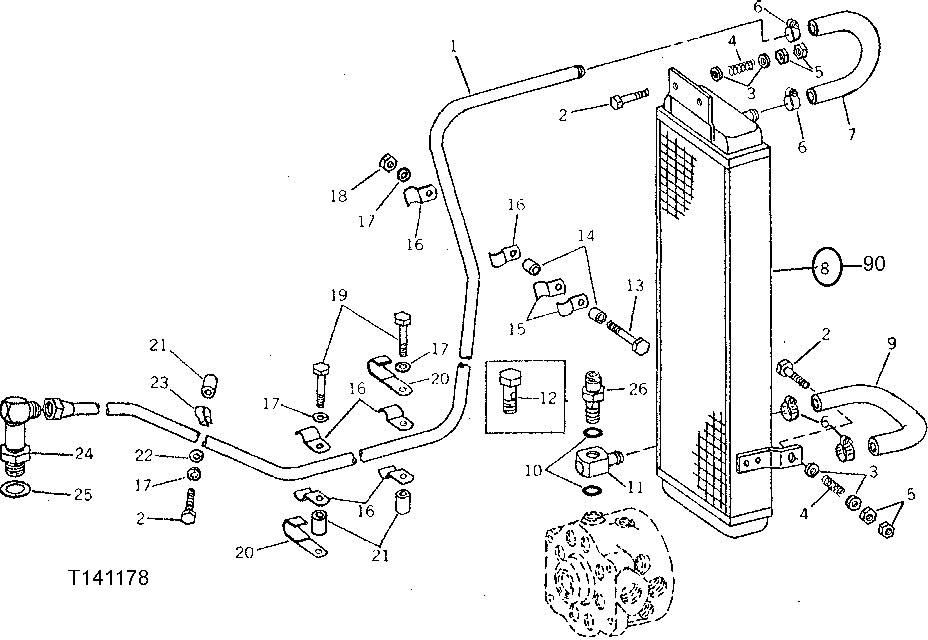

HYDRAULIC OIL COOLER AND PIPES [01H08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR48820	1	OIL LINE	HYDRAULIC FILTER TO HYDRAULIC PUMP, REAR
2	19H1765	4	Cap Screw	3/8" X 1-3/4"
3	24H1305	6	Washer	13/32" X 13/16" X 0.065"
4	R33054	1	SPRING	-
5	14H732	6	Nut	3/8"
6	RE65978	4	Clamp	(SUB FOR AT18904 OR RE62322)
7	R43643	1	Hose	-
8	-	1	Part 8	(SUB AT34691) ( AR47942 NO LONGER AVAILABLE)
8	-	1	Part 9	(A) ( AT34955 USE IF AVAILABLE)
9	R43642	1	HOSE	INLET
10	R27928	2	O-Ring	-
11	R27926	1	FITTING	-
12	R27927	1	BOLT	-
13	19H3031	1	Cap Screw	3/8" X 2-1/2"
14	28H1697	2	Spacer	3/8" X .750"
15	R27720	2	CLAMP	-
16	R27531	6	Clamp	-
17	12H304	4	Lock Washer	3/8"
18	14H812	1	NUT	3/8"
19	19H1726	2	Cap Screw	3/8" X 2-1/4"
20	R73292	2	Clamp	(SUB FOR R46622)
21	28H1496	3	Spacer	3/8" X 1-1/8"
22	24M7096	1	Washer	0.413" X 0.709" X 0.063"
23	F2114R	1	CLIP	-
24	AR26747	1	ELBOW FITTING	-
25	U12547	1	O-Ring	(SUB FOR F3171R)
26	R43737	1	FITTING	-
90	AT34691	1	OIL COOLER	HYDRAULIC OIL COOLER REPAIR (INCLUDES MARKED (A) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE)

HYDRAULIC OIL COOLER AND PIPES [01H08]

Нет текстового описания
