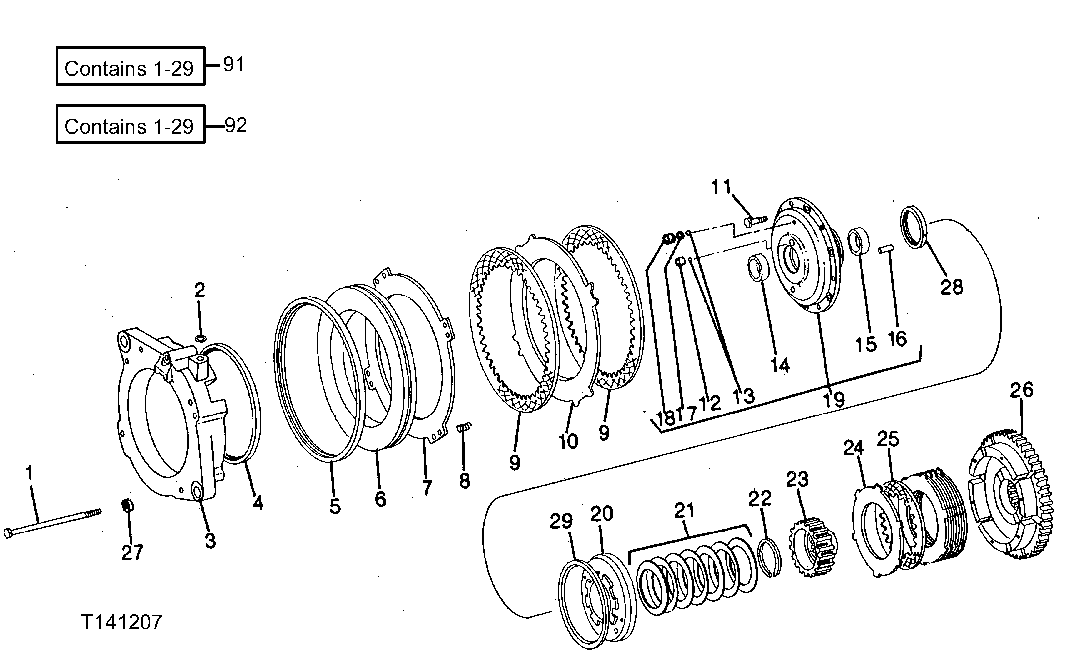

FOURTH PLANETARY BRAKE (SERIAL NO. 030892- ) [01E16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	08H4497	5	CAP SCREW	(C) (B) 3/8" X 9-1/2"
2	R394R	2	O-Ring	(C) (B)
3	R44197	1	HOUSING	(C) (B)
4	R43379	1	Seal	(C) (B)
5	R43378	1	Seal	(C) (B)
6	R43220	1	PISTON	(C) (B)
7	R46417	1	Plate	(C) (B)
8	R33054	8	SPRING	(C) (B)
9	RE234259	2	Disk With Inner Spline	(C) (B) (SUB FOR AR94515)
10	R46416	1	Plate	(C) (B)
11	R41168	6	Cap Screw	(C) (B)
12	R43053	1	Seat	(C) (B)
13	400R	2	Ball	(C) (B)
14	R43052	1	Bushing	(C) (B)
15	R78662	1	BUSHING	(C) (B)
16	R44742	1	DOWEL PIN	(C) (B)
17	R68823	1	DOWEL PIN	(C) (B) (SUB FOR AR45321, MARKED R44107)
18	R68824	1	Seat	(C) (B)
19	AR89720	1	HOUSING	(C) (B)
20	R43304	1	PISTON	(C) (B)
21	R70027	7	Disk Spring	(C) (B)
22	R43383	1	Snap Ring	(C) (B)
23	R66033	1	HUB	(C) (B) (SUB FOR R44108)
24	R46418	6	CLUTCH PLATE	(C) (B)
25	AR43057	6	DISK	(C) (B) (SUB AR94517, THIS APPLICATION)
25	RE234261	6	Brake Disk	(SUB FOR AR94517)
26	AR103341	1	DRUM	(C) (B) (SUB FOR R51995 AND AR86284)
27	R64525	5	Thrust Washer	(C) (B)
28	R43380	1	WASHER	(C) (B)
29	R43381	1	Washer	(C) (B)
91	AR56756	1	PLANETARY ASSEMBLY	PLANETARY ASSEMBLY, (INCLUDES MARKED (C) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE) (SUB AR89717)
92	AR89717	1	PLANETARY ASSEMBLY	PLANETARY ASSEMBLY, (INCLUDES MARKED (B) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE)
