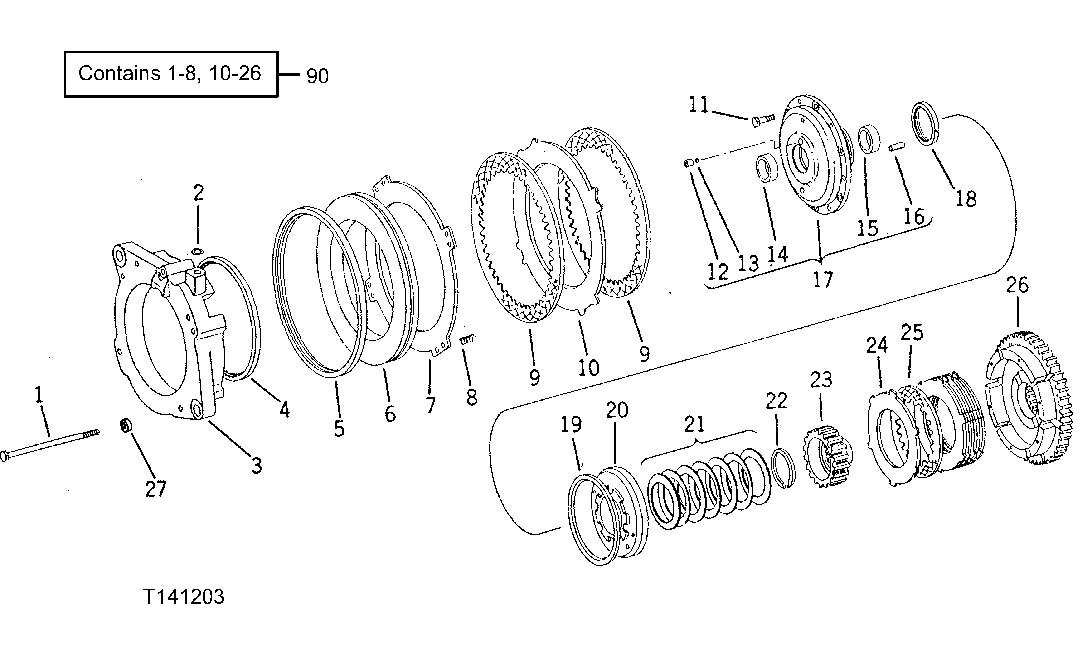

FOURTH PLANETARY BRAKE (SERIAL NO. -030891) [01E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3396	5	CAP SCREW	(A) 3/8" X 9-1/2"
2	R394R	2	O-Ring	(A)
3	R44197	1	HOUSING	(A)
4	R43379	1	Seal	(A)
5	R43378	1	Seal	(A)
6	R65589	1	PISTON	(A) (SUB FOR R43220)
7	R46417	1	Plate	(SUB FOR R43180, THIS APPLICATION)
7	R46417	1	Plate	(A) (SUB FOR R43180, THIS APPLICATION)
8	R33054	8	SPRING	(A)
9	RE234259	2	Disk With Inner Spline	(SUB FOR AR94515)
10	R46416	1	Plate	(SUB FOR R43181, THIS APPLICATION)
10	R46416	1	Plate	(A) (SUB FOR R43181, THIS APPLICATION)
11	R41168	6	Cap Screw	(A)
12	R43053	1	Seat	(A)
13	400R	1	Ball	(A)
14	R43052	1	Bushing	(A)
15	R43050	1	BUSHING	(A)
16	R28671	1	Dowel Pin	(A)
17	-	1	Part 19	(A) ( AR45321 NO LONGER AVAILABLE, SUB AR89720) (MARKED R44107)
18	R43381	1	Washer	(A)
19	R43380	1	WASHER	(A)
20	R43304	1	PISTON	(A)
21	R70027	7	Disk Spring	(A)
22	R43383	1	Snap Ring	(A)
23	R66033	1	HUB	(A) (SUB FOR R44108)
24	R43209	6	CLUTCH PLATE	(SUB R46418)
24	R46418	6	CLUTCH PLATE	(A)
25	AR43057	6	DISK	(A)
26	R44109	1	DRUM	(A) ( R44109 NO LONGER AVAILABLE)
27	R64525	5	Thrust Washer	-
90	AR46789	1	TRANSMISSION	PLANETARY ASSEMBLY, (INCLUDES MARKED (A) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE) (SUB AR85315) (FOR PARTS SEE PAGE 40-7A)

FOURTH PLANETARY BRAKE (SERIAL NO. -030891) [01E15]
