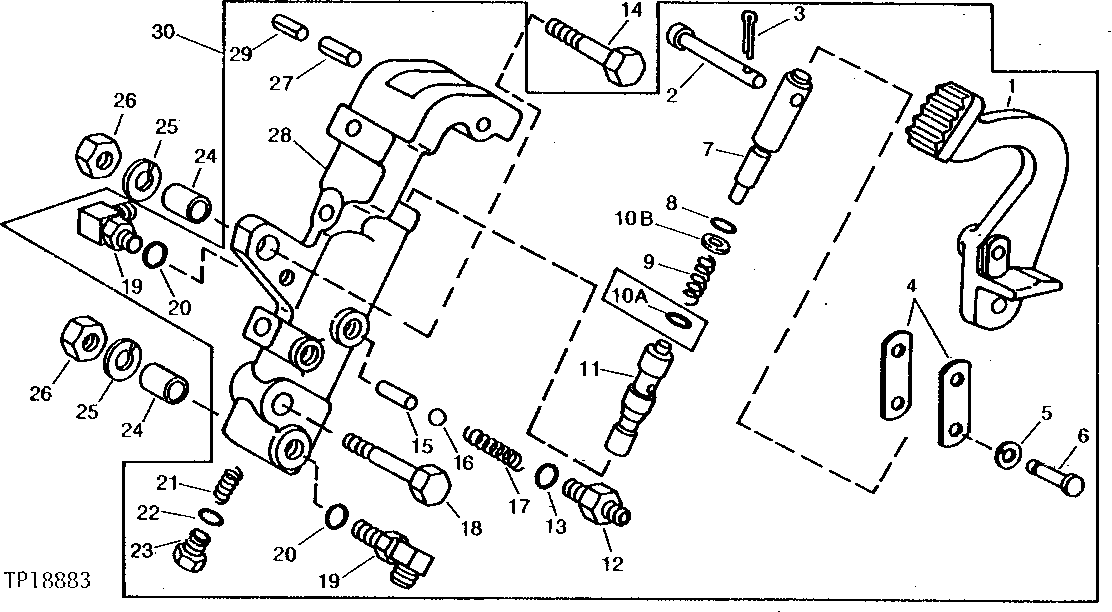

DIFFERENTIAL LOCK VALVE (SERIAL NO. 031517- ) [01F25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( T41160 USE IF AVAILABLE)
2	R46866	1	PIN FASTENER	-
3	11M7059	1	Cotter Pin	3.200 X 20 MM
4	R79135	2	STRAP	(SUB FOR R46902)
5	R26386	1	SNAP RING	-
6	R26385	1	PIN FASTENER	-
7	R86162	1	PLUNGER	(SUB FOR R46863 AND R68648)
8	F3353R	1	O-Ring	-
9	R46862	1	Spring	-
11	R79134	1	VALVE	(ALSO ORDER R74418) (SUB FOR R46855, THIS APPLICATION) (SUB FOR R74417) (SUB R82134 AND (11) R82133) (SUB FOR R46855, THIS APPLICATON)
11	R82134	1	VALVE	(USE WITH AT39807)
11	R85362	1	VALVE	(USE WITH R86767)
12	R36742	1	COUPLING	-
13	R26287	1	O-Ring	-
14	19H2358	1	Cap Screw	9/16" X 2-1/4"
15	R33058	1	NEEDLE ROLLER	-
16	400R	1	Ball	-
17	R26373	1	Spring	-
18	19H2659	1	CAP SCREW	9/16" X 3-3/4"
19	RE56322	2	Tee Fitting	(SUB FOR AR26771 OR AT32333)
20	R26286	2	O-Ring	-
21	R74418	1	Spring	(ALSO ORDER R74417) (SUB FOR R31698, THIS APPLICATION)
22	R26448	1	O-Ring	-
23	R27218	1	Fitting Plug	-
24	28H1498	2	BUSHING	1/2" X 1/2"
25	12H317	2	Lock Washer	9/16"
26	14H886	2	Nut	9/16"
27	E63018	1	Spring Pin	21/64" X 1-3/4", (SUB FOR 34H188)
28	R86767	1	HOUSING	(SUB FOR R46819)
29	34H286	1	Spring Pin	3/16" X 1-1/2"
30	-	1	Part 34	( AT39807 AND RE26464 USE IF AVAILABLE)
10A	R82133	11	SHIM	.508 MM (.020") (SUB FOR R46901)
10B	R82133	1	SHIM	.508 MM (.020") (USE WITH R86162)
10B	B1664R	1	SHIM	.76 MM (.030") (USE WITH R86162)

DIFFERENTIAL LOCK VALVE (SERIAL NO. 031517- ) [01F25]
