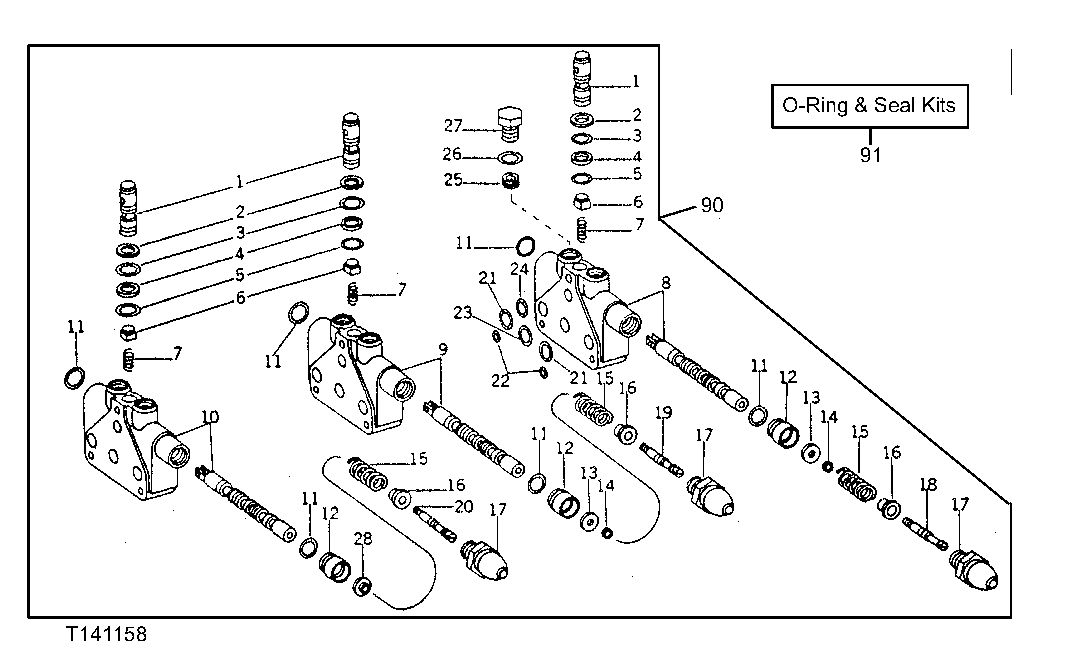

CONTROL VALVES (SERIAL NO. -31183) [01H12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U16014	3	HOUSING	-
2	U40729	3	Back-Up Ring	-
3	32240	4	O-Ring	-
4	U40728	3	BACK-UP RING	-
5	R27928	3	O-Ring	-
6	U16016	3	POPPET	-
7	U16015	3	SPRING	-
8	AR44191	1	VALVE	FOUR WAY, SINGLE, DETENT, (FRONT)
9	AR44190	1	VALVE	FOUR WAY, DOUBLE, DETENT, (CENTER)
10	AR42753	1	VALVE	FOUR WAY, DOUBLE, DETENT, (REAR)
11	U11343	6	O-RING	-
12	-	3	Part 12	( U13947 NO LONGER AVAILABLE)
13	H26239	3	Washer	-
14	H26237	3	WASHER	-
15	U11336	3	SPRING	-
16	H26238	3	GUIDE	-
17	AH14547	3	CAP (HAT)	-
18	R36686	1	SCREW	SPOOL SPRING, SINGLE, DETENT, (USE ON AR44191 VALVE)
19	R36687	1	SCREW	SPOOL SPRING, DOUBLE, DETENT, (USE ON AR44190 VALVE)
20	R42262	1	SCREW	SPOOL SPRING, DOUBLE, DETENT, (USE ON AR42753 VALVE)
21	U11326	8	O-Ring	-
22	P51212	8	O-Ring	-
23	U15415	4	O-Ring	-
24	U15192	4	O-Ring	-
25	R36688	1	ORIFICE	-
26	R26906	6	O-Ring	-
27	R27474	6	Drain Plug	-
28	R41311	1	WASHER	-
90	AR42747	1	VALVE	(SUB AT37626, TRIPLE SELECTIVE CONTROL VALVE, COMPLETE)
91	AU12353	1	KIT	REPAIR (O-RING BETWEEN HOUSINGS) (KIT CONTAINS O-RINGS AND SEAL)
91	AU12404	1	KIT	REPAIR (PORT PLATE PLUG) (KIT CONTAINS O-RINGS AND SEAL)
91	AU12444	1	KIT	REPAIR (END PLATE) (KIT CONTAINS O-RINGS AND SEAL)

CONTROL VALVES (SERIAL NO. -31183) [01H12]
