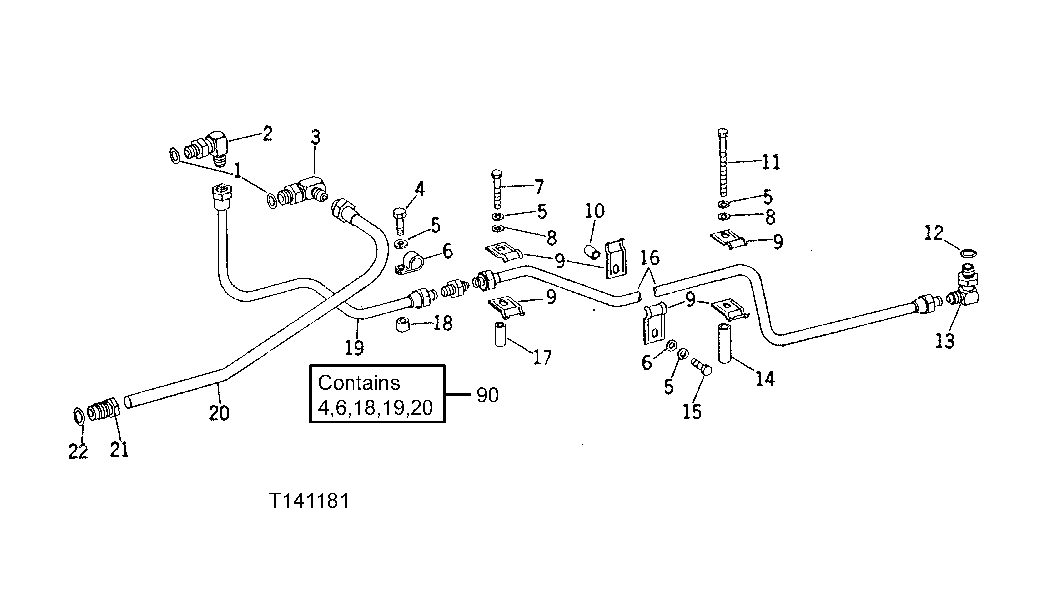

CONTROL VALVE AND TRANSMISSION FILTER RESTRICTION INDICATOR LINES (SERIAL NO. 31184- ) [01H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	2	O-Ring	(SUB FOR (2) F3171R)
2	AH76990	1	Elbow Fitting	(SUB FOR AT32841)
3	AT32331	1	Elbow Fitting	(SUB FOR AR26723)
4	19H3239	1	Cap Screw	(A) 3/8" X 1-1/4"
5	12H304	3	Lock Washer	3/8"
6	R46667	1	Clamp	(A)
7	19H3031	2	Cap Screw	3/8" X 2-1/2"
8	24H1305	4	Washer	13/32" X 13/16" X 0.065"
9	R47576	6	CLAMP	-
10	28H1495	1	Spacer	3/8" X 1"
11	19H1925	1	Cap Screw	3/8" X 4-1/4"
12	R26906	1	O-Ring	-
13	M48579	1	ELBOW FITTING	(SUB FOR AR26724, THIS APPLICATION)
14	28H1635	1	Spacer	3/8" X 2-1/8"
15	19H2549	1	Cap Screw	3/8" X 1-7/8"
16	-	1	Part 16	( AT32839, NO LONGER AVAILABLE)
17	28H1497	1	Bushing	3/8" X 1-1/2"
18	28H1519	1	Washer	(A) 3/8" X .375"
19	-	1	Part 19	(A) 876.3 MM LONG (7/8" X 34-1/2") ( AT38323 USE IF AVAILABLE)
20	AT37618	1	OIL LINE	(A)
21	R33610	1	FITTING	-
22	B2762R	1	O-Ring	-
90	AT37626	1	SPOOL VALVE	(INCLUDES ALL PARTS ON THIS PAGE AND PAGES LISTED IN FOOTNOTE)

CONTROL VALVE AND TRANSMISSION FILTER RESTRICTION INDICATOR LINES (SERIAL NO. 31184- ) [01H19]
