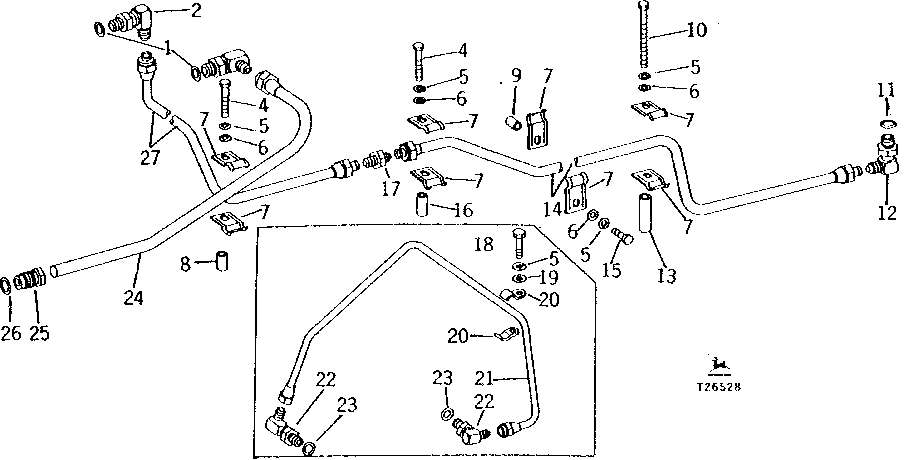

CONTROL VALVE AND TRANSMISSION FILTER RESTRICTION INDICATOR LINES (SERIAL NO. 30076-31183) [01H14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	2	O-Ring	(SUB FOR (2) F3171R)
2	AH76990	1	Elbow Fitting	(SUB FOR AT32841)
3	AT32331	1	Elbow Fitting	(SUB FOR AR26723)
4	19H3031	2	Cap Screw	3/8" X 2-1/2"
5	12H304	5	Lock Washer	3/8"
5	12H304	3	Lock Washer	3/8"
6	24H1305	4	Washer	13/32" X 13/16" X 0.065"
7	R47576	8	CLAMP	-
8	28H1527	1	Spacer	3/8" X 1-3/8"
9	28H1495	1	Spacer	3/8" X 1"
10	19H1925	1	Cap Screw	3/8" X 4-1/4"
11	R26906	1	O-Ring	-
12	M48579	1	ELBOW FITTING	(SUB FOR AR26724) (THIS APPLICATION)
13	28H1635	1	Spacer	3/8" X 2.125"
14	-	1	Part 15	( AT32839, NO LONGER AVAILABLE)
15	19H2549	1	Cap Screw	3/8" X 1-7/8"
16	28H1497	1	Bushing	3/8" X 1-1/2"
17	R35717	1	Fitting	-
18	19H2633	2	Cap Screw	3/8" X 1-1/2"
19	24M7096	2	Washer	0.413" X 0.709" X 0.063"
20	R42357	4	CLAMP	(SUB FOR R35726)
21	AR48731	1	OIL LINE	(SUB FOR AR36561, THIS APPLICATION)
22	RE56322	2	Tee Fitting	(SUB FOR AR26771 OR AT32333)
23	R26286	2	O-Ring	-
24	AR45492	1	LINE	-
25	R33610	1	FITTING	-
26	B2762R	1	O-Ring	-
27	AT32840	1	OIL LINE	(SUB AT38323 HYDRAULIC HOSE, IF AVAILABLE, ONE R46667 CLAMP, ONE 19H3239 CAP SCREW, AND ONE 28H1519 SPACER) (SEE PAGE 60-19)

CONTROL VALVE AND TRANSMISSION FILTER RESTRICTION INDICATOR LINES (SERIAL NO. 30076-31183) [01H14]
