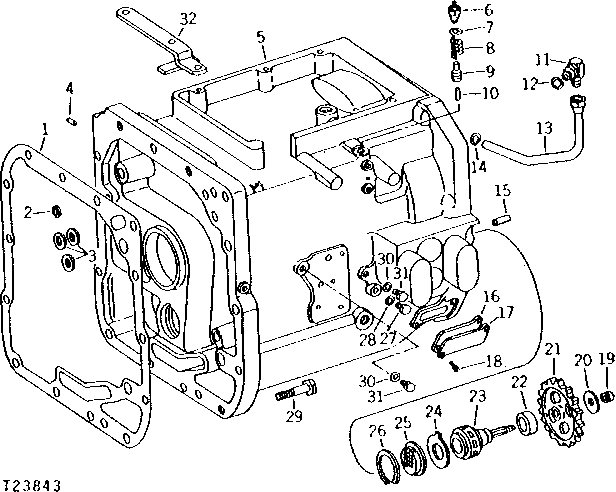

CLUTCH HOUSING (SERIAL NO. -30932) [01D14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44151	1	GASKET	-
2	F2741R	1	Packing	-
3	A4723R	3	Washer	(SUB FOR R40273)
3	R40273	3	WASHER	(USE IF AVAILABLE)
4	R1612R	2	Dowel Pin	-
5	-	1	Part 6	( AR47606, NO LONGER AVAILABLE) (SUB AT37542 CLUTCH HOUSING, IF AVAILABLE, ONE R33173 SPRING ONE R41148 SPRING GUIDE, ONE R42057 SPRING, AND ONE T37506 SPRING)
6	AR40795	1	TOUCH SWITCH	-
7	R26375	1	O-Ring	-
8	B423R	1	EXTENSION SPRING	-
9	-	1	Part 10	( R45629, NO LONGER AVAILABLE)
10	R38295	1	Needle Roller	-
11	M48579	1	ELBOW FITTING	(SUB FOR AR26724) (THIS APPLICATION)
12	R26906	1	O-Ring	-
13	AR45372	1	OIL LINE	-
14	R375R	1	O-Ring	-
15	C1220R	2	DOWEL PIN	-
16	R67989	1	Gasket	(SUB FOR R31494)
17	R31493	1	Cover	-
18	21H1318	2	Screw	0.216" X 1/2"
19	T10362	1	BUSHING	-
20	R44120	1	WASHER	-
21	R44124	1	GEAR	-
22	R43099	1	BUSHING	-
23	AR45309	1	IMPELLER	(MARKED R44088)
24	R44125	1	WASHER	-
25	AR45346	1	SCREEN	-
26	B190R	1	SNAP RING	-
27	R27094	1	Drain Plug	-
28	R26286	1	O-Ring	-
29	19H1707	7	CAP SCREW	3/4" X 2-3/4"
29	19H2825	7	Cap Screw	3/4" X 4-1/4"
29	19H2089	4	CAP SCREW	7/8" X 2-3/4"
29	19H2725	2	Cap Screw	3/4" X 3-3/4"
30	R26448	2	O-Ring	-
30	R26286	2	O-Ring	-
31	R27218	2	Fitting Plug	-
31	R27094	2	Drain Plug	-
32	AT35017	1	SUPPORT	( AT35017 NO LONGER AVAILABLE)

CLUTCH HOUSING (SERIAL NO. -30932) [01D14]
