BRAKE ACCUMULATOR (MODEL NOS. 7HA3, 7HA4, AND 13HAL) [01I15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

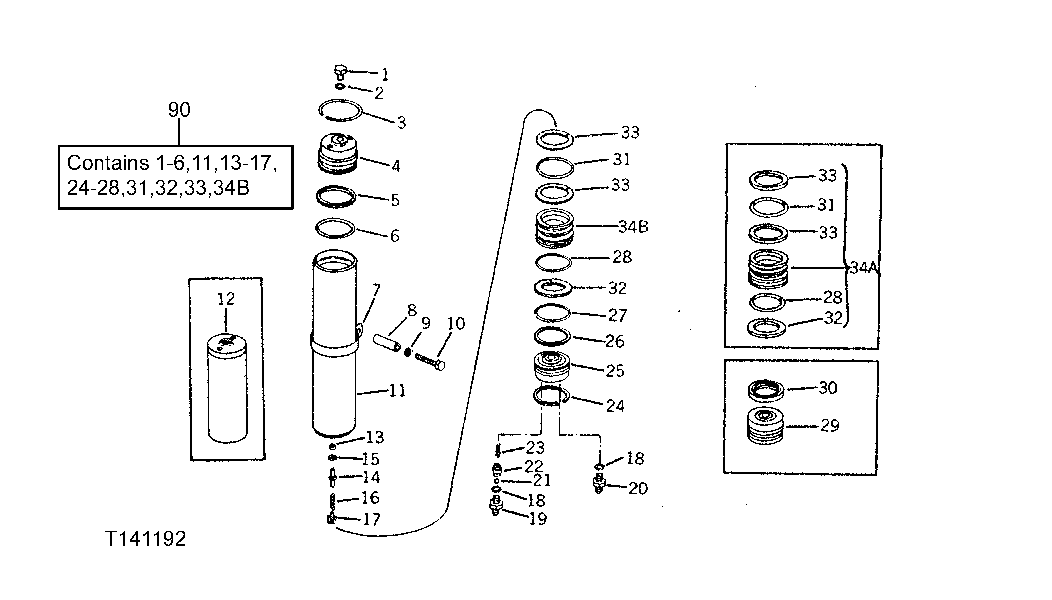

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27094	1	Drain Plug	(A)
2	R26286	1	O-Ring	(A)
3	U10136	1	SNAP RING	(A)
4	R48957	1	END	(A) (SUB FOR R46988)
5	R78823	1	BACK-UP RING	(A) (SUB FOR R35684, THIS APPLICATION)
6	R86192	1	O-RING	(A) (SUB FOR U12331)
7	R40101	2	CLAMP	-
8	28H1526	2	BUSHING	3/8" X 1.312"
9	12H304	2	Lock Washer	3/8"
10	19H1726	2	Cap Screw	3/8" X 2-1/4"
11	R46986	1	HYDRAULIC CYLINDER BARREL	(A)
12	-	1	Part 12	( AR49446, NO LONGER AVAILABLE) (SUB R46986, R48957, U10136, R86192, R78823, R47085, R47086, R47087, R41877 AND R60038)
13	R60038	1	Packing	(A) (SUB FOR R26760)
14	R47085	1	VALVE	(A)
15	R47087	1	WASHER	(A)
16	R26373	1	Spring	-
16	R47086	1	SPRING	(A)
17	R41877	1	GUIDE	(A)
18	R26286	2	O-Ring	-
19	R44042	1	Adapter Fitting	-
20	R27272	1	Fitting	-
21	400R	1	Ball	-
22	R44043	1	GUIDE	-
23	R27981	1	SPRING	-
24	U10136	1	SNAP RING	(A)
25	R44041	1	PLUG	(A)
26	R78823	1	BACK-UP RING	(A) (SUB FOR R35684, THIS APPLICATION)
27	R86192	1	O-RING	(A) (SUB FOR U12331)
28	A4728R	1	O-Ring	(A)
29	R48952	1	PISTON	(SUB AL23523) (SUB FOR R44253)
30	R35680	1	SEAL	-
31	A4728R	1	O-Ring	(A)
32	R27649	1	BACK-UP RING	(A) (USED WHEN AL23523 HAS BEEN INSTALLED AS A REPLACEMENT PART)
33	L29015	2	BACK-UP RING	(A) (USED WHEN AL23523 HAS BEEN INSTALLED AS A REPLACEMENT PART)
90	AR45248	1	ACCUMULATOR	(SUB FOR AR56184, THIS APPLICATION) (SUB AR70038, THIS APPLICATION) (INCLUDES MARKED (A) ON THIS PAGE)
34A	AR55711	1	PISTON	(SUB FOR R49345) (SUB AL23523)
34A	AL23523	1	BEARING	(SUB R57103, (2) A4728R, R27649 AND (2) L29015)
34B	R57103	1	PISTON	(A)
