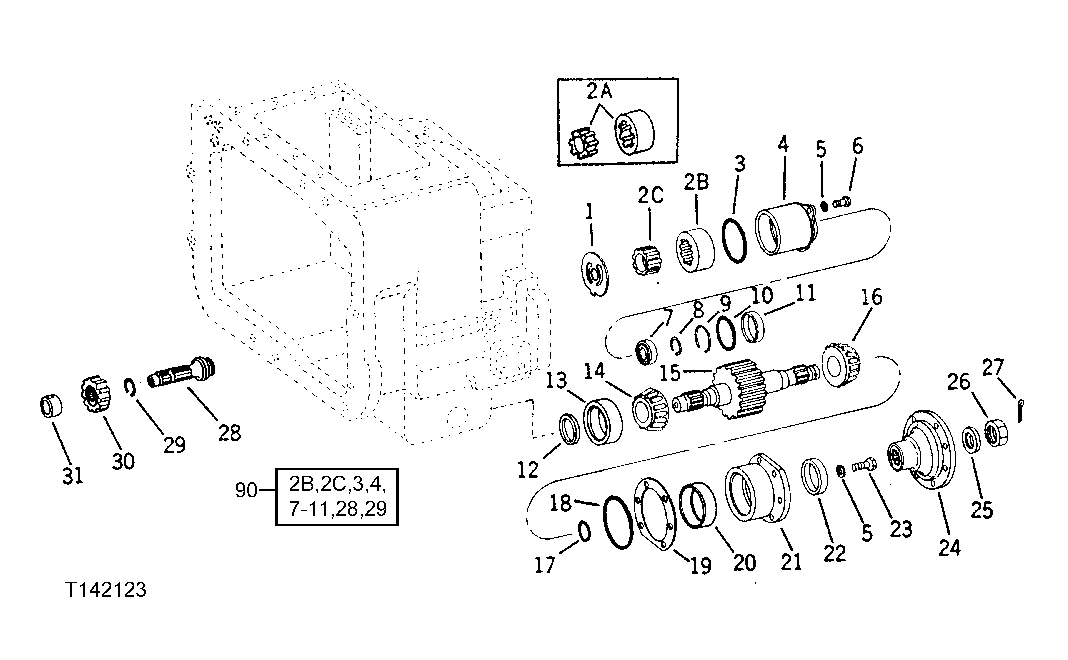

TRANSMISSION SCAVENGER PUMP AND OUTPUT GEAR [01G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T62331	1	PLATE	-
1	AT36478	1	PLATE	(SUB T62331)
3	R11120	1	O-Ring	(A)
4	T37751	1	HOUSING	(A)
5	12H304	9	Lock Washer	3/8"
6	19H3267	3	Cap Screw	3/8" X 1-5/8"
6	19H2633	3	Cap Screw	3/8" X 1-1/2"
7	JD8514	1	Ball Bearing	(A)
8	A364R	1	Snap Ring	(A)
9	B3169R	1	SNAP RING	(A)
10	M4237T	1	O-Ring	(A)
11	T15610	1	Plug	(A)
12	R33578	1	SEAL	-
13	JD9121	1	Bearing Cup	-
14	JD9058	1	Bearing Cone	-
15	T37595	1	STEERING GEAR	(23 TEETH) (SUB T43755)
15	T43755	1	GEAR	(24 TEETH)
16	JD7386	1	Bearing Cone	-
17	R31378	1	O-Ring	-
18	T20779	1	Ring	-
19	T37592	2	Shim	0.05 MM (.002")
19	T37593	2	Shim	0.13 MM (.005")
19	T37594	2	Shim	0.25 MM (.010")
20	JD7292	1	Bearing Cup	-
21	T37596	1	BEARING HOUSING W/O BEARING	-
22	AT167936	1	SEAL	(SUB FOR AT16431)
23	19H3385	2	Cap Screw	1/2" X 1-1/8"
24	T51442	1	UNIVERSAL JOINT	(SUB FOR T37597)
25	T18283	1	WASHER	-
26	14H848	1	Nut	1-1/8"
27	11M7040	1	Cotter Pin	6.300 X 50 MM
28	T57322	1	DRIVE SHAFT	(A)
28	T37577	1	DRIVE SHAFT	(SUB T57322)
29	R26267	1	Ring	(A)
30	T37578	1	GEAR	(19 TEETH)
31	JD9923	1	NEEDLE BEARING	-
90	AT60480	1	PUMP	(ALSO ORDER T62331) (CONTAINS ALL PARTS IDENTIFIED BY (A))
2A	AT36476	1	STEERING GEAR	(SUB T37752 AND T37753)
2B	T37753	1	GEAR	(A) OUTER
2C	T37752	1	GEAR	(A) INNER

TRANSMISSION SCAVENGER PUMP AND OUTPUT GEAR [01G09]

Нет текстового описания
