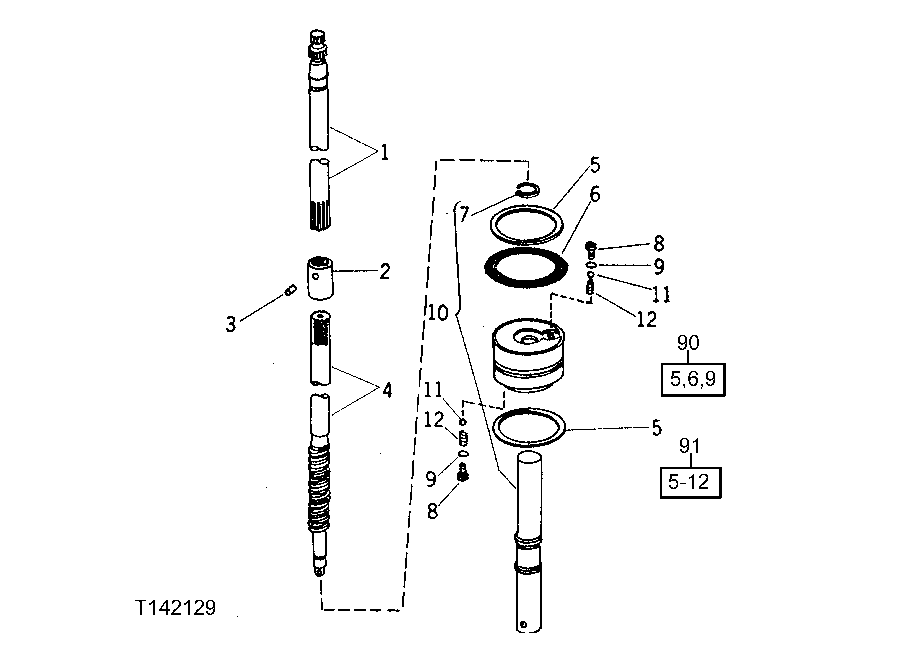

STEERING VALVE SHAFT AND PISTON (SERIAL NO. 228308- ) [01I14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T37522	1	SHAFT	(UPPER)
2	R27319	1	SPLINED COUPLING	-
3	34H282	1	Spring Pin	3/16" X 1"
4	R37423	1	SHAFT	-
5	R26754	2	BACK-UP RING	(A) (B)
6	R26543	1	O-Ring	(A) (B)
7	F534R	1	Snap Ring	(B)
8	R74571	2	VALVE SEAT	(B) (SUB FOR R31202 AND R65587, THIS APPLICATION) (ALSO ORDER 400R)
9	R26287	2	O-Ring	(A) (B)
10	-	1	Part 10	(B) (SUB AR71887)
11	400R	2	Ball	(B) (SUB FOR H871R, THIS APPLICATION) (ALSO ORDER R74571)
12	R65809	2	SPRING	(B) (SUB FOR R59535)
90	AT59906	1	KIT	(SUB FOR AR48759) STEERING VALVE REPLACEMENT (INCLUDES PARTS MARKED (A) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE LOCATED ON PAGE - STEERING CYLINDER HOUSING (65-2))
91	AR101142	1	PISTON	(SUB FOR AR71887 AND AR84866) (CONTAINS ALL PARTS IDENTIFIED BY (B))

STEERING VALVE SHAFT AND PISTON (SERIAL NO. 228308- ) [01I14]
