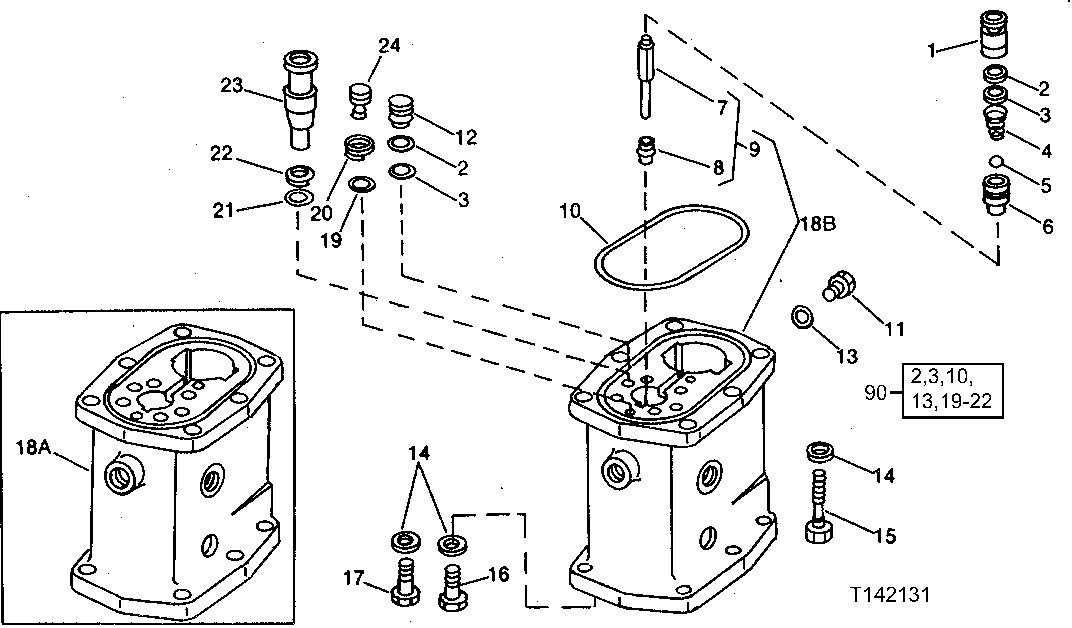

STEERING VALVE HOUSING (UPPER HALF) [01I16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41724	4	PLUG	-
2	R32588	6	Back-Up Ring	(A)
3	R56464	6	O-Ring	(A) (SUB FOR R459R, THIS APPLICATION)
4	R26565	4	COMPRESSION SPRING	-
5	400R	4	Ball	-
6	R59083	4	VALVE	(SUB FOR R28124)
6	R66635	4	VALVE	-
7	R40359	1	SHAFT	(SUB AR49535) 76 MM (3")
7	R40360	1	SHAFT	(SUB AR49536) 38 MM (1-1/2")
8	AR78483	4	GUIDE	(SUB FOR AR31703)
9	AR49535	2	SHAFT	UPPER
9	AR49536	2	SHAFT	LOWER
10	R34733	1	WASHER	(A)
11	R27216	1	DRAIN PLUG	(SUB FOR R31631)
12	R34131	2	Plug	-
13	R26287	1	O-Ring	(A)
14	12H301	6	Lock Washer	1/2"
15	19H1990	4	Cap Screw	HS, SAE 8, 1/2" X 2-1/4", (SUB FOR R48784)
16	19H2993	1	Cap Screw	1/2" X 1-1/2", (SUB FOR R48785)
17	R48783	1	CAP SCREW	-
19	A4365R	1	O-Ring	(A)
20	R34129	1	Back-Up Ring	(A)
21	R56462	1	O-Ring	(A) (SUB FOR B2762R, THIS APPLICATION)
22	R26546	1	BACK-UP RING	(A)
23	R37428	1	VALVE SEAT	-
24	-	1	Part 28	(SUB AR62651)
90	AT59906	1	KIT	(SUB FOR AR48759) STEERING VALVE REPLACEMENT (INCLUDES PARTS MARKED (A) ON THIS PAGE AND PAGES LISTED IN FOOTNOTE LOCATED ON PAGE - STEERING CYLINDER HOUSING (65-2))
18A	R42115	1	HOUSING	-
18B	AR101691	1	HOUSING	(MARKED R37425) (SUB FOR AR37080 AND AR101690) (ALSO ORDER (2) R40359 AND (2) R40360)

STEERING VALVE HOUSING (UPPER HALF) [01I16]
