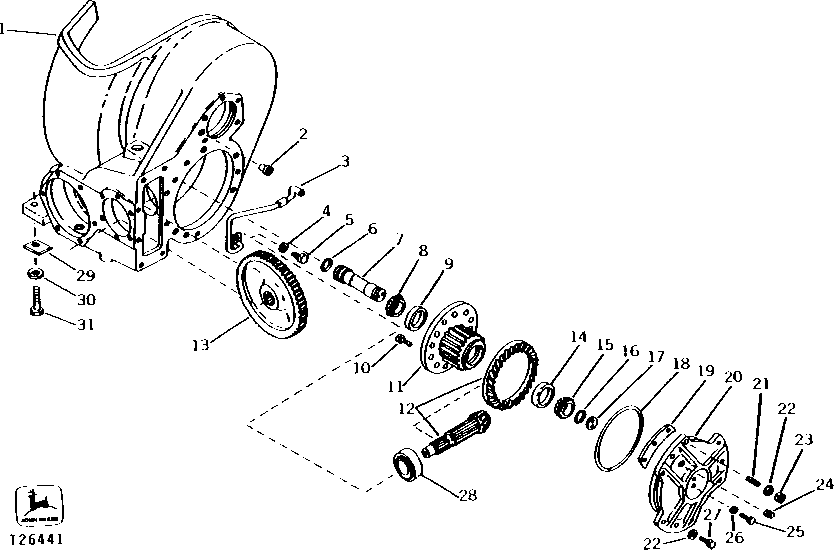

MAIN WINCH INPUT GEARS AND SHAFTS (SERIAL NO. -218191) [02I18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT38460	1	HOUSING	(SUB AT42505 AND MOUNTING PARTS)
2	T39699	1	BUSHING	-
3	T39698	1	LINE	-
4	12H303	2	Lock Washer	5/16"
5	19H1813	2	CAP SCREW	5/16" X 5/8"
6	P50631	1	O-Ring	-
7	T39739	1	SHAFT	-
8	AT38472	1	BEARING CONE	-
9	JD9135	1	BEARING CUP	(SUB FOR T39737)
10	T39738	12	CAP SCREW	-
11	T39736	1	GEAR	(19 TEETH)
12	AT38471	1	STEERING GEAR	(MATCHED SET) (6, 24 AND 31 TEETH)
13	T39748	1	STEERING GEAR	(24 TEETH)
14	JD9109	1	Bearing Cup	-
15	JD9043	1	Bearing Cone	-
16	R1138R	1	O-Ring	-
17	T39747	1	SHIM	.25 MM (.010")
17	T39746	1	SHIM	.18 MM (.007")
17	T39745	1	SHIM	.102 MM (.004")
18	T39741	1	Ring	-
19	T39742	1	SHIM	.13 MM (.005")
19	T39743	1	SHIM	.18 MM (.007")
19	T39744	1	SHIM	.25 MM (.010")
20	T39740	1	COVER	-
21	R32101	5	STUD	-
22	12H301	9	Lock Washer	1/2"
23	14H1040	5	Nut	1/2", (SUB FOR 14H809)
24	15H281	1	PIPE PLUG	1-1/2"
25	19H3205	2	Cap Screw	7/16" X 1-1/2"
26	12H325	2	Lock Washer	7/16"
27	19H2898	4	Cap Screw	1/2" X 1-1/4"
28	AT38473	1	CYLINDRICAL ROLLER BEARING	-
29	T37062	1	SHIM	-
30	T32004	4	Bushing	-
31	T40311	4	CAP SCREW	-

MAIN WINCH INPUT GEARS AND SHAFTS (SERIAL NO. -218191) [02I18]
